Uflex USA Power A MM11T Electronic Control Package for Single Engine Mechanical Throttle/Shift

The Uflex USA Power A MM11T Electronic Control Package is designed for single-engine, single-station boat configurations requiring mechanical throttle and shift control. This modular system provides reliable engine management with automatic synchronization and includes a trim function.

Key Features:

• Private protocol CAN bus for secure data transmission
• Supports connection of up to 4 control stations
• Direct communication with electronic engines via SAE J1939 or NMEA 2000
• Plug-and-play connectivity for simplified installation
• Includes Dock Assist and fully programmable shift delays

Package Includes:

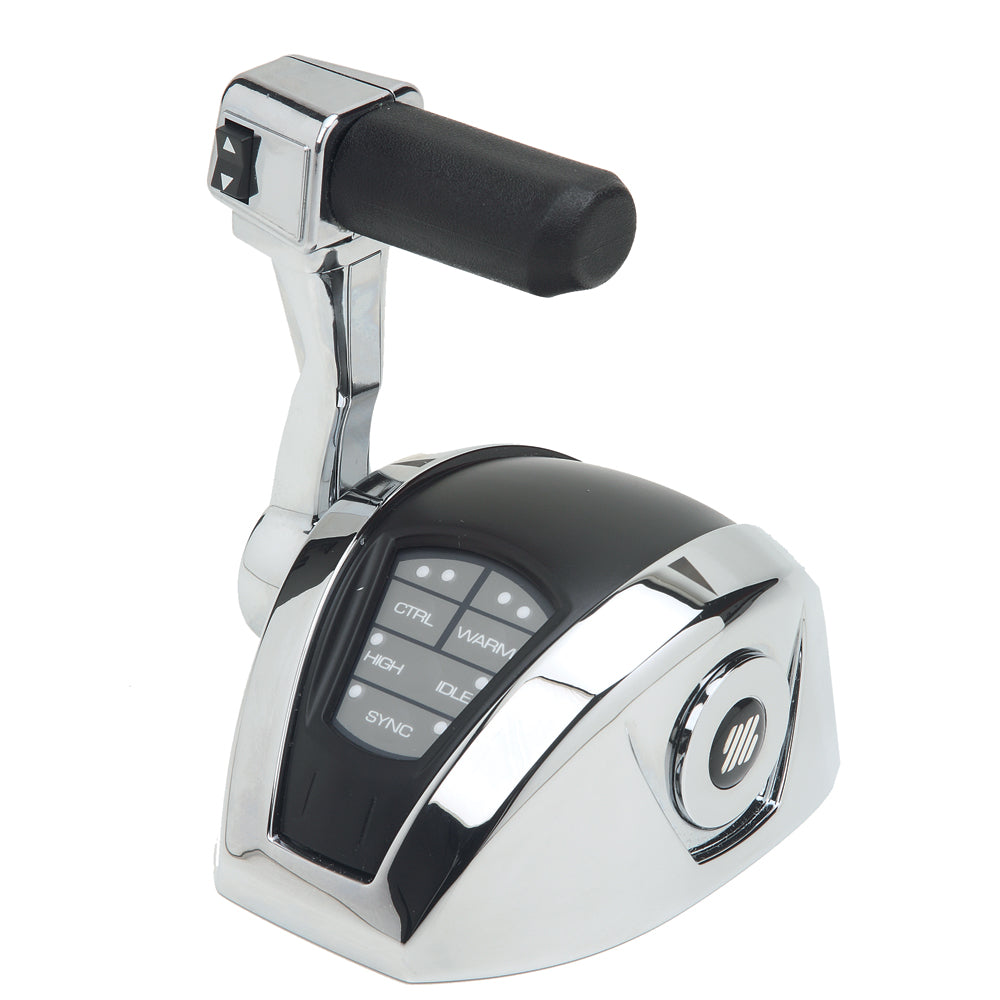

• 1 x PA2-B1T Single Lever Control with Trim
• 1 x PA2-CU Control Unit with LED diagnostic and programming screen
• 2 x PA2-MA Electro-mechanical Actuators for shift and throttle
• 1 x PA2-NT Network Terminator
• 1 x M-P3 Main Power Supply Cable (9.8 ft)
• 1 x PA2-PU Power Supply Unit for 12V systems
• 1 x CAN-10 Network Connection Cable (33 ft)
• 2 x CAN-1 Network Connection Cables (3 ft)
• 2 x M-PE1 Power Extension Cables (3.3 ft)
