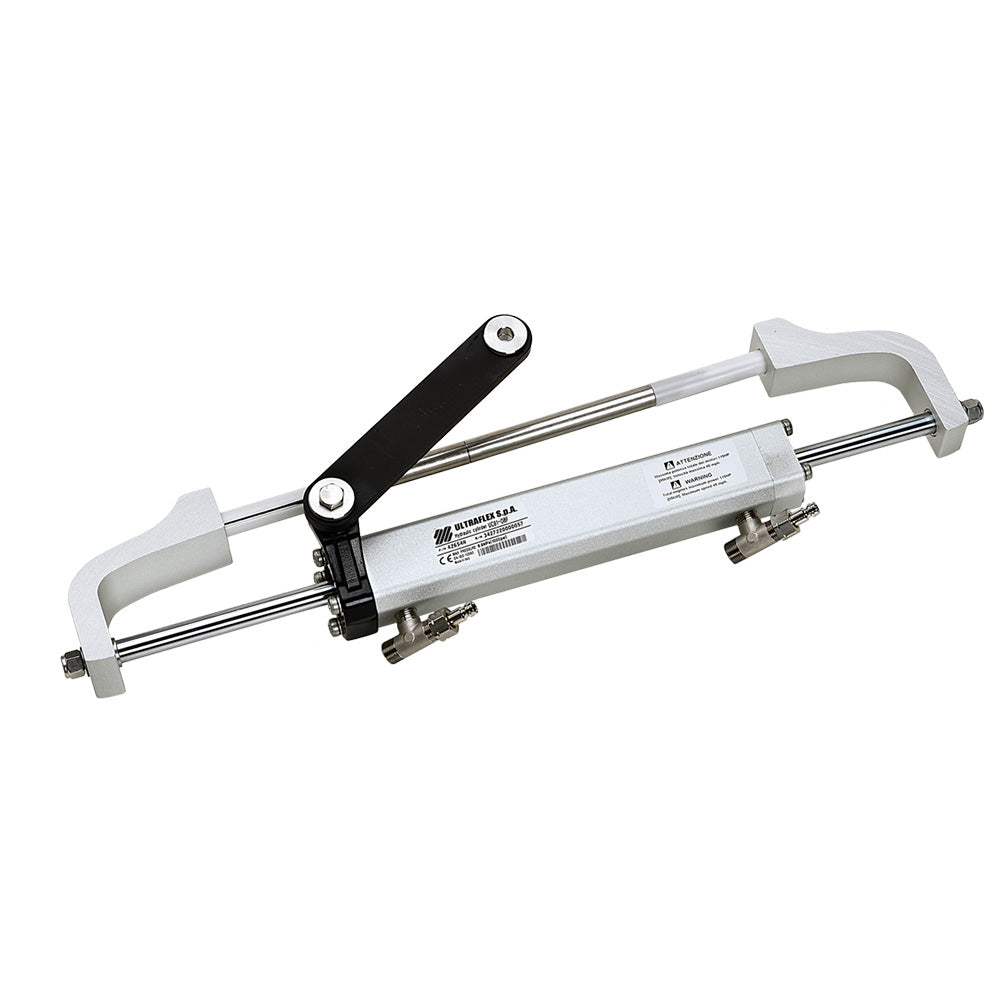

Uflex USA UC81-OBF Front Mount Outboard Cylinder, Balanced, 115 HP Max

Experience precise and reliable steering with the Uflex USA UC81-OBF Front Mount Outboard Cylinder. Engineered for optimal control, this balanced hydraulic cylinder ensures smooth, consistent turns from port to starboard, making it ideal for a wide range of recreational powerboats, bay boats, and center consoles. Its robust construction and thoughtful design reflect trusted Uflex quality and engineering, providing dependable performance in harsh marine conditions. Upgrade your vessel's handling today for a more enjoyable and responsive boating experience.

Key Features & Benefits:

• Balanced Steering System: Provides equal lock-to-lock turns in both directions, delivering predictable and consistent handling at all speeds.
• Powerful Performance: Designed for outboard engines up to 115 horsepower, offering an output force of 489 lbs (222 kg) for responsive control.
• Durable Marine Construction: Features a 304 stainless steel main rod and machined aluminum bullhorns for enhanced longevity in saltwater environments.
• Easy Maintenance: Equipped with replaceable end caps, simplifying long-term servicing and extending the overall life of the unit.
• Versatile Installation: Can be installed on either the port or starboard side to accommodate various boat rigging and cowling clearance requirements.
• Optimized Fluid Dynamics: Offers a volume of 81 cc (4.9 cu. in) for efficient hydraulic operation.
• Standardized Connections: Includes 3/8" high-pressure flex hose fittings and DN5 quick connect bleed fittings for straightforward installation and air purging.

Specifications:

• Volume: 81 cc (4.9 cu. in)
• Output Force: 222 kg (489 lbs)
• Inside Diameter: 27.4 mm (1.08")
• Stroke: 186 mm (7.3")
• Max Engine Power: 115 HP
• Hose Fittings: 3/8" high-pressure flex hose
• Bleed Fittings: DN5 quick connect

Compatibility & Pairings:

This cylinder integrates seamlessly with Uflex hydraulic steering helms. For optimal performance, it is recommended to use high-pressure hydraulic oil, such as Uflex Olioflex.
