VDO 226-623 Reed Switch Fuel Sender, 230mm – 240-33 Ohm

Ensure accurate and stable fuel level readings with the VDO 226-623 Reed Switch Fuel Sender. Engineered for robust performance in demanding marine and industrial applications, its innovative floatless design eliminates erratic gauge pointer movements caused by fuel slosh, providing a consistently reliable display. This sender is built for long-term durability and precise monitoring.

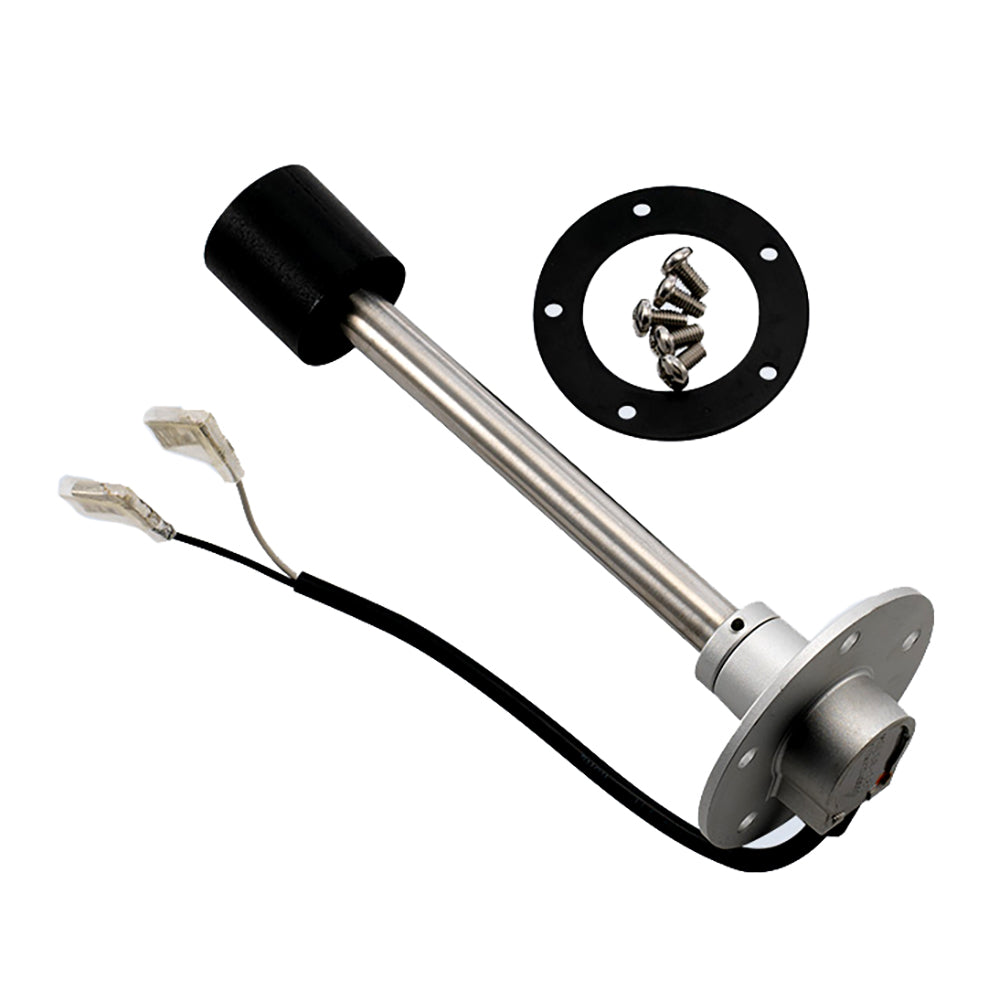

In the Box:

• VDO 226-623 Reed Switch Fuel Sender
• Neoprene Gasket
• Mounting Hardware

Key Benefits & Features:

• Steady Readings: The tubular, floatless design acts as a dampener, preventing gauge pointer movement due to fuel slosh and eliminating wear from moving parts.
• Marine-Grade Durability: Constructed from stainless steel with an anti-corrosion coated mounting flange for exceptional longevity in harsh marine environments.
• Ethanol Resistant: Features an ethanol-resistant Viton gasket to ensure a tight, reliable seal against modern fuel formulations.
• Broad Compatibility: Offers a 240-33 Ohm resistance range, compatible with most standard marine fuel gauges.
• Optimized for Tank Depth: Designed to accurately measure fuel levels in tanks up to 9.2 inches (230mm) deep.
• Easy Installation: Utilizes a standard SAE 5-hole mounting flange for straightforward, top-mounted setup.
• Secure Connection: Equipped with insulated 1/4-inch (.250") spade connectors and a floating ground for reliable electrical interfacing.
• Wide Operating Range: Operates efficiently across a temperature range of -25°C to +70°C, with a nominal voltage of 12/24V DC.
