Brand: VDO

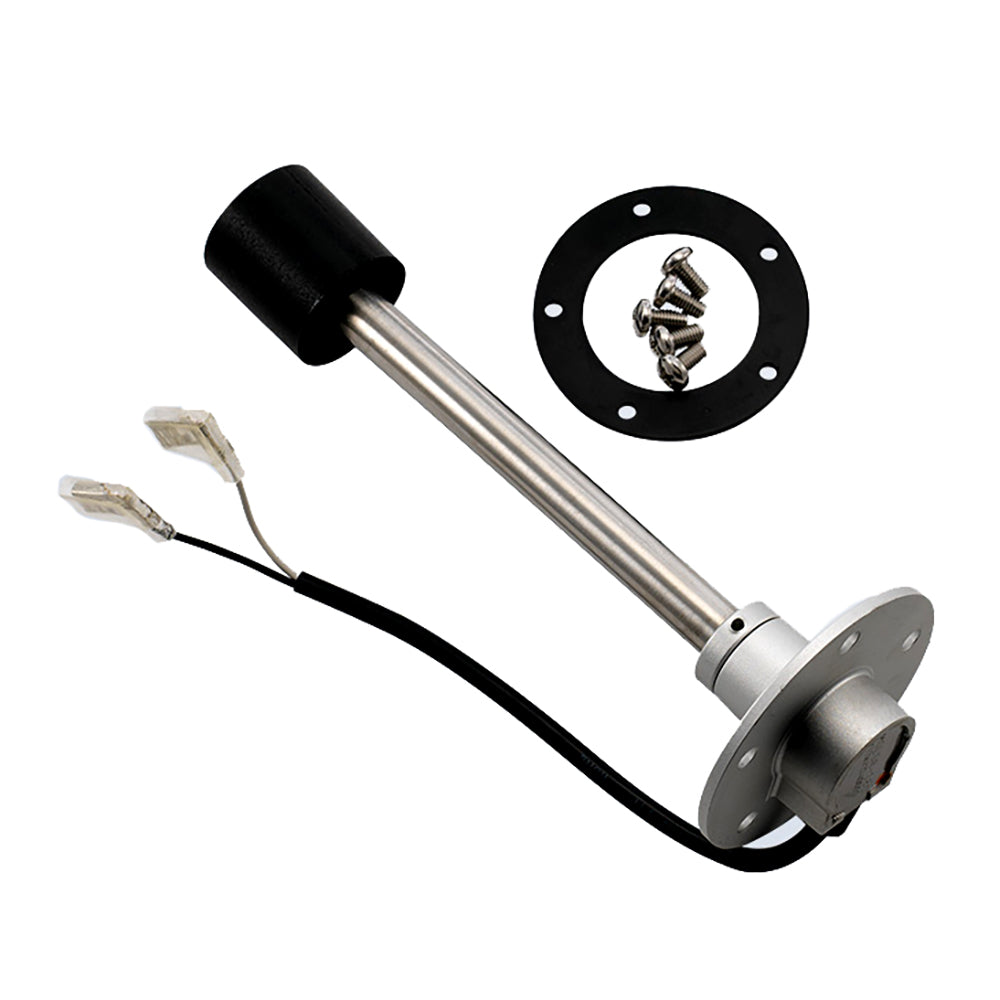

VDO Reed Switch Fuel Sender, 250mm, 240-33 Ohm
VDO Reed Switch Fuel Sender, 250mm, 240-33 Ohm
Last one
This VDO Reed Switch Fuel Sender is designed to provide stable fuel level readings, replacing traditional swing-arm senders that are prone to erratic movement. Its tubular design acts as a dampener to minimize needle fluctuations caused by fuel slosh, making it ideal for tank configurations with limited clearance.
The sender features a durable stainless steel construction and is built for longevity with no side-to-side moving parts. It is top-mounted using a standard SAE 5-hole flange and includes a neoprene gasket and mounting hardware for installation.
- Tank depth compatibility: 10 in. (250mm)
- Resistance range: 240-33 Ohm
- Mounting: Standard SAE 5-hole flange
- Electrical connection: Insulated 1/4 in. spade connectors
- Ground: Floating
- Includes: Neoprene gasket and mounting hardware
- Manufacturer Part Number: 226-625
Regulatory note: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-104913
- Model / MPN
- 226-625
- UPC / GTIN
- 754059064529
- Package dimensions
- 3" X 3" X 14"
- Package weight
- 0.7 lb
- Specifications
- Color = Silver
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
