• VDO 226-645 Reed Switch Fuel Sender, 450 mm
1 1

Brand: VDO

VDO 226-645 Reed Switch Fuel Sender, 450 mm

VDO 226-645 Reed Switch Fuel Sender, 450 mm

$60.46
$60.46
Sale Sold out
Shipping calculated at checkout.

Sold out

About this product

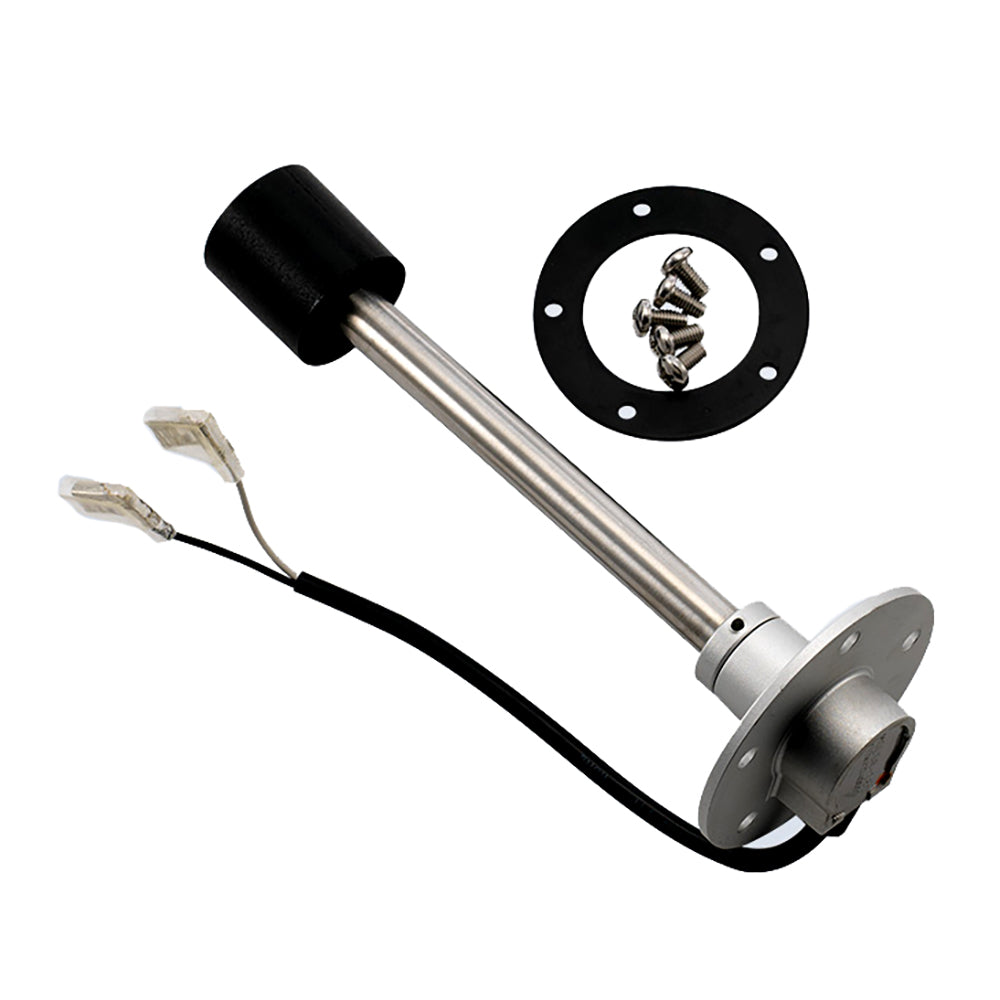

The VDO Reed Switch Fuel Sender is designed for marine fuel tanks requiring a 450 mm (17.7") depth. This tubular, floatless sender design eliminates the side-to-side motion found in traditional swing-arm senders, acting as a dampener to prevent erratic gauge readings caused by fuel slosh. With no mechanical moving parts to wear out, it offers a reliable, durable solution for fuel measurement.

  • Tank depth compatibility: 450 mm (17.7")
  • Resistance range: 240-33 Ohm
  • Construction: Stainless steel body with ethanol-resistant Viton gasket
  • Mounting: Standard SAE 5-hole flange
  • Connections: Insulated 0.25" spade connectors
  • Configuration: Floating ground
  • Included: Neoprene gasket and mounting hardware

Regulatory note: This product contains lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-104919
Model / MPN
226-645
UPC / GTIN
754059064451
Package dimensions (H × W × L)
3" X 3" X 19"
Package weight
0.8 lb
Country of origin
TAIWAN

Specifications

Color
Silver

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
