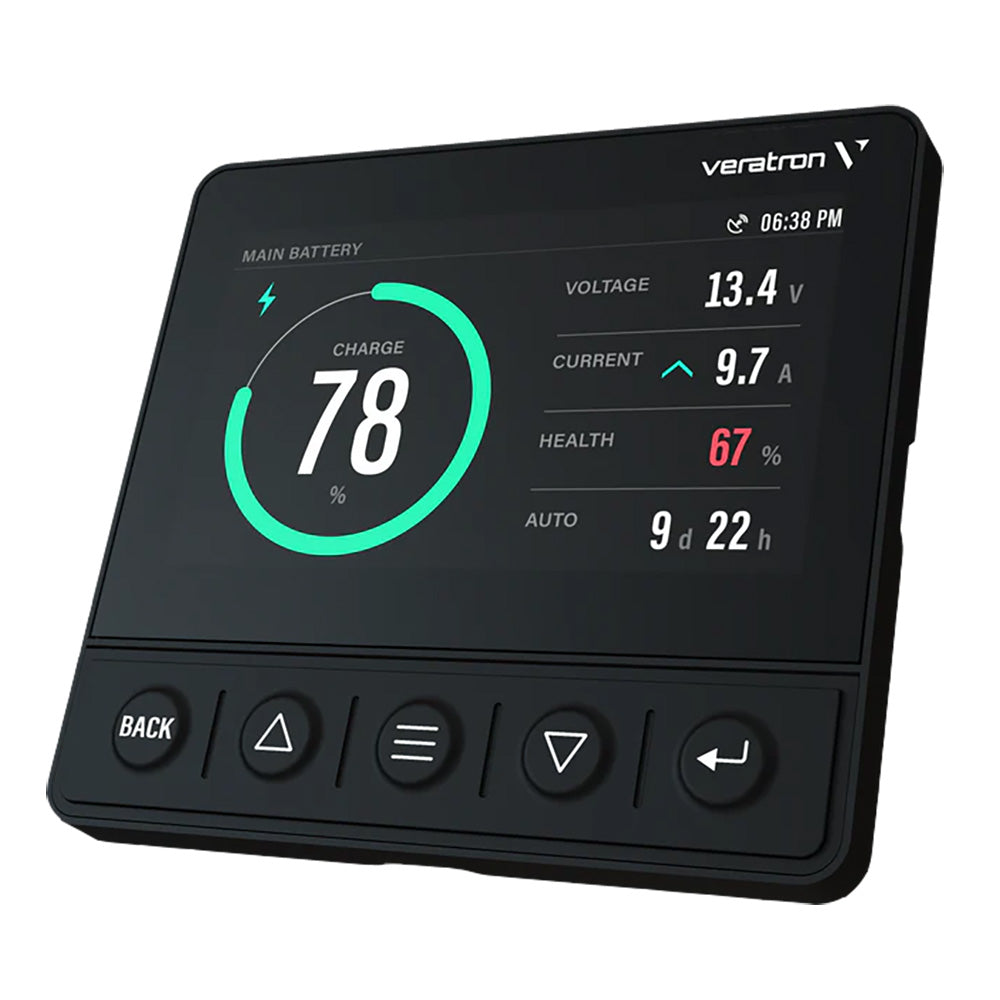

Veratron OL 43 Smart Marine Monitoring TFT Display, 4.3" NMEA 2000 & J1939

Take control of your marine experience with the Veratron OL 43 Smart Marine Monitoring TFT Display. Engineered for modern vessels, this 4.3-inch optically bonded IPS TFT display provides comprehensive real-time data monitoring for engines, batteries, tanks, and navigation. Its anti-glare mineral glass ensures perfect readability even under direct sunlight, while robust IPX7-rated housing guarantees durability in demanding marine environments. Upgrade your vessel's instrumentation today for smarter, more reliable monitoring.

Key Features:

• Crystal-Clear Display: Features a 4.3" optically bonded IPS TFT screen with anti-glare mineral glass, ensuring perfect readability and brilliant visibility even in direct sunlight and harsh conditions.
• Seamless Connectivity: NMEA 2000® certified and equipped with a SAE J1939 CAN interface, plus HTML5-ready Ethernet, for comprehensive integration with engine, tank, battery sensors, and navigation systems.
• Marine-Grade Durability: Boasts an IPX7-rated housing and flame-retardant materials, built for reliable operation in demanding marine environments.
• Versatile Sensor Inputs: Includes four analog inputs for connecting a variety of external sensors, offering flexible monitoring options.
• Advanced Engine Diagnostics: Provides full engine diagnostic capabilities with programmable alarm outputs for critical vessel data monitoring.
• Rapid Operation: Features lightning-fast startup upon power-on and a customizable multilingual graphical user interface (GUI) for user-friendly operation.
• Simplified Installation: Designed with a compact 85mm round form factor for straightforward installation in standard panel cutouts via spinlock.
• Integrated NMEA 2000 Converter: Acts as a gateway to acquire engine data via analog signals or J1939 and convert it for distribution on the NMEA 2000 network.
• Wide Voltage Compatibility: Supports nominal voltages of 12V and 24V for broad application across different vessel systems.

Compatibility & Pairings:

Integrates with NMEA 2000 and J1939 networks. Capable of monitoring data from up to four engines and distributing information to as many as 16 EasyLink satellite gauges.
