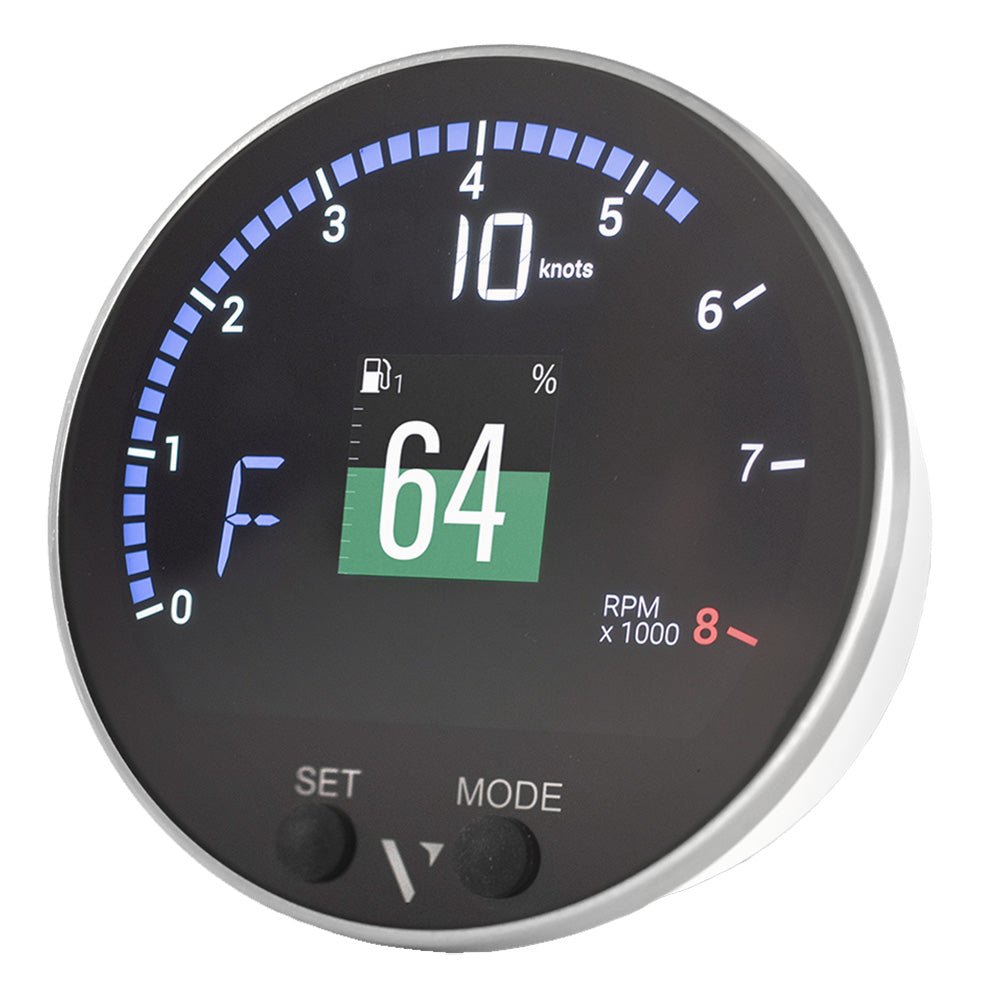

Veratron VMH-35 Suzuki Multifunction Display, 3.5" GPS NMEA 2000

Elevate your boating experience with the Veratron VMH-35 Suzuki Multifunction Display. This advanced, NMEA 2000 certified instrument provides comprehensive performance monitoring and integrated navigation, designed specifically for Suzuki-powered vessels. Featuring a crisp, sun-readable display and a robust waterproof design, the VMH-35 ensures critical data is always visible and reliable, even in harsh marine conditions. Upgrade your helm today for smarter, more enjoyable voyages.

In the Box:

• Veratron VMH-35 Suzuki Multifunction Display Unit
• Dedicated wiring harness with original Suzuki connectors

Key Features & Benefits:

• Suzuki Engine Integration: Works effortlessly with multiple Suzuki engine series, providing a seamless plug-and-play setup thanks to the dedicated harness and mating Sumitomo connectors.
• Comprehensive Data Monitoring: Access up to 30 types of data, including engine RPMs (up to 8,000 with programmable overspeed alarm), fuel levels, trim, battery status, and EcoMode pop-up screens.
• Advanced Navigation: An integrated high-performance GNSS receiver delivers precise GPS, speed, and compass data, making the VMH-35 a perfect standalone navigation solution.
• NMEA 2000 Certified Gateway: Seamlessly distributes sensor data (fuel, trim, tachometer) to other compatible devices like chartplotters, eliminating the need for an additional external converter.
• Sunlight-Readable Hybrid Display: Enjoy optimal clarity in all lighting conditions, featuring a mineral glass front optically bonded to a vibrant color IBN + 1.44" TFT display.
• Rugged & Waterproof Design: IPX7 rated for both front and rear protection, ensuring long-term durability and reliable performance in exposed marine environments.
• Intelligent Battery Sensor (IBS) Compatible: Connect an optional IBS to provide critical 12V battery monitoring capabilities, keeping you informed of your boat's power status.
• Universal Fitment: Designed to fit standard 85mm (3-3/8 inch) panel cutouts, integrating smoothly into classic and modern marine décors with its elegant black-glass design and brushed stainless-steel bezel.
• Low Power Consumption: Powered by a fast microprocessor, it draws a mere 170mA of power at full brightness, significantly less than comparable TFT screens.
• Configurable Inputs: Features dedicated analog resistive, PWM trim, and frequency inputs for engine sensors and alarms like oil pressure and overtemperature.

Supported Suzuki Engine Models:

• DF40A-60A series
• DF70A-100B series
• DF100C-140B series
• DF150A-200A series
• DF250AP-300AP series
• DF300B-350A series
