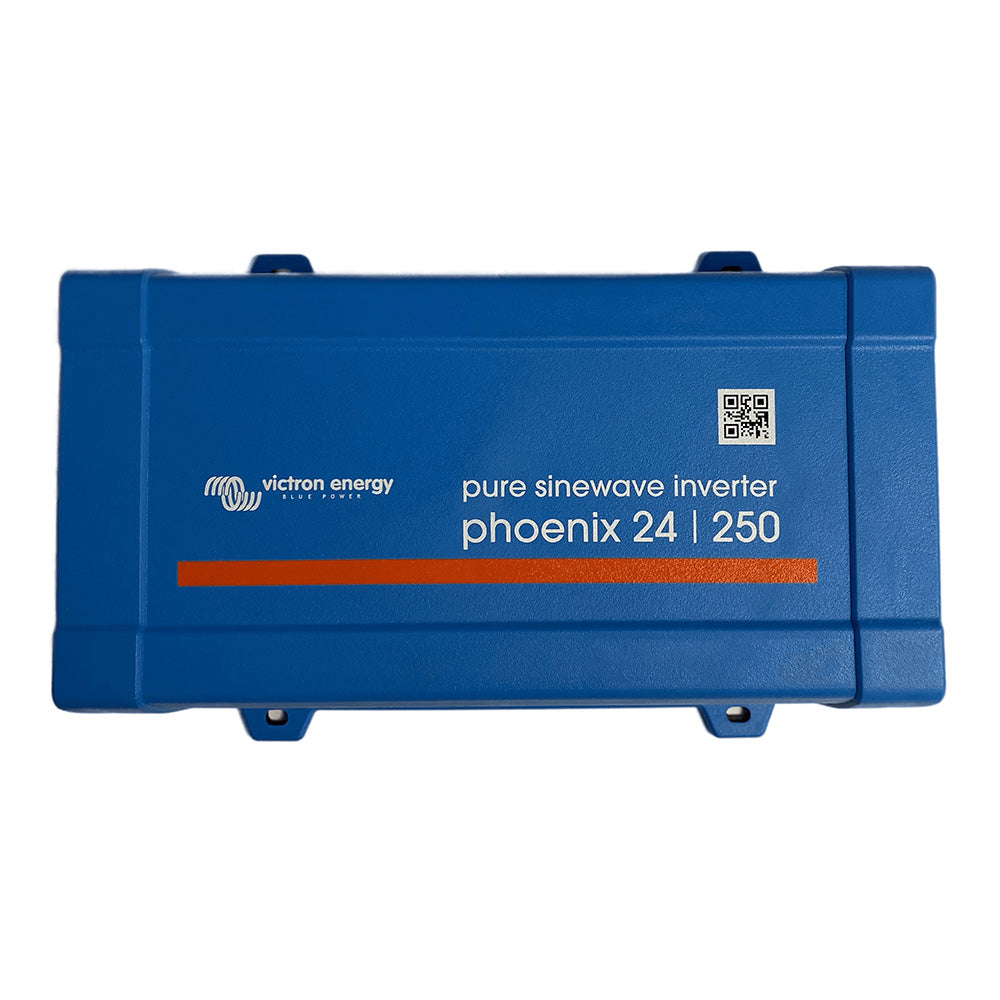

Victron Energy Phoenix Inverter, 24VDC to 120VAC, 250VA, VE.Direct

The Victron Energy Phoenix Inverter is a reliable power solution designed to convert 24VDC battery power into 120VAC for domestic appliances. This compact, high-efficiency inverter features a VE.Direct communication port for advanced configuration and monitoring via computer or mobile devices.

Key Features and Specifications:

• Model: 24/250 (PIN242510500)
• Continuous power output: 250VA (200W at 25°C, 175W at 40°C)
• Peak power: 400W
• Output: 120VAC at 60Hz (adjustable)
• Input voltage range: 18.4 - 34.0VDC
• VE.Direct port supports connection to computers, tablets, or smartphones for status monitoring and parameter adjustments
• Fully configurable settings including low battery voltage alarm, cut-off levels, output frequency, and ECO mode parameters
• Robust steel chassis with IP21 protection
• Dimensions: 3.4 in. x 6.5 in. x 10.2 in.
• Weight: 5.3 lbs.

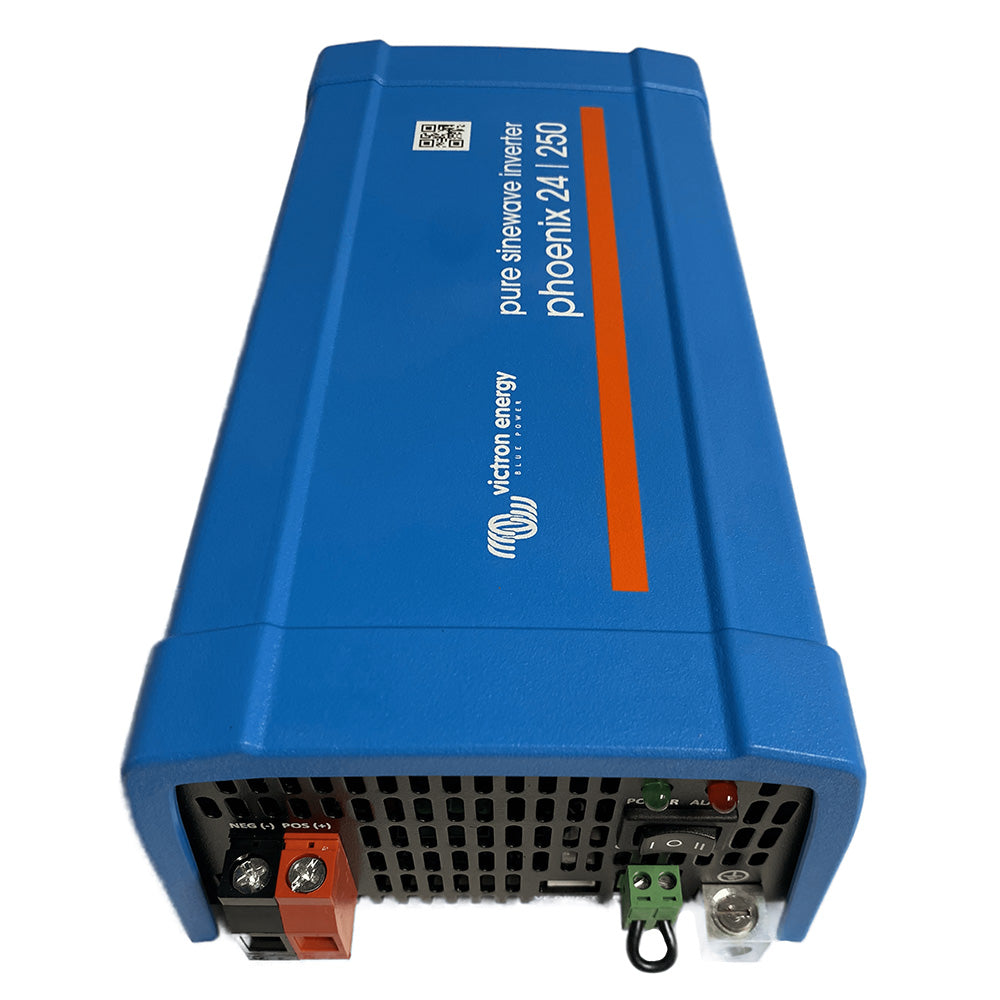

The unit features screw terminals for battery connection and a standard NEMA 5-15R AC outlet. It includes remote on-off capability and supports the use of an optional Filax automatic transfer switch. Operating temperature ranges from -40 to +65°C with fan-assisted cooling.
