Brand: Victron Energy

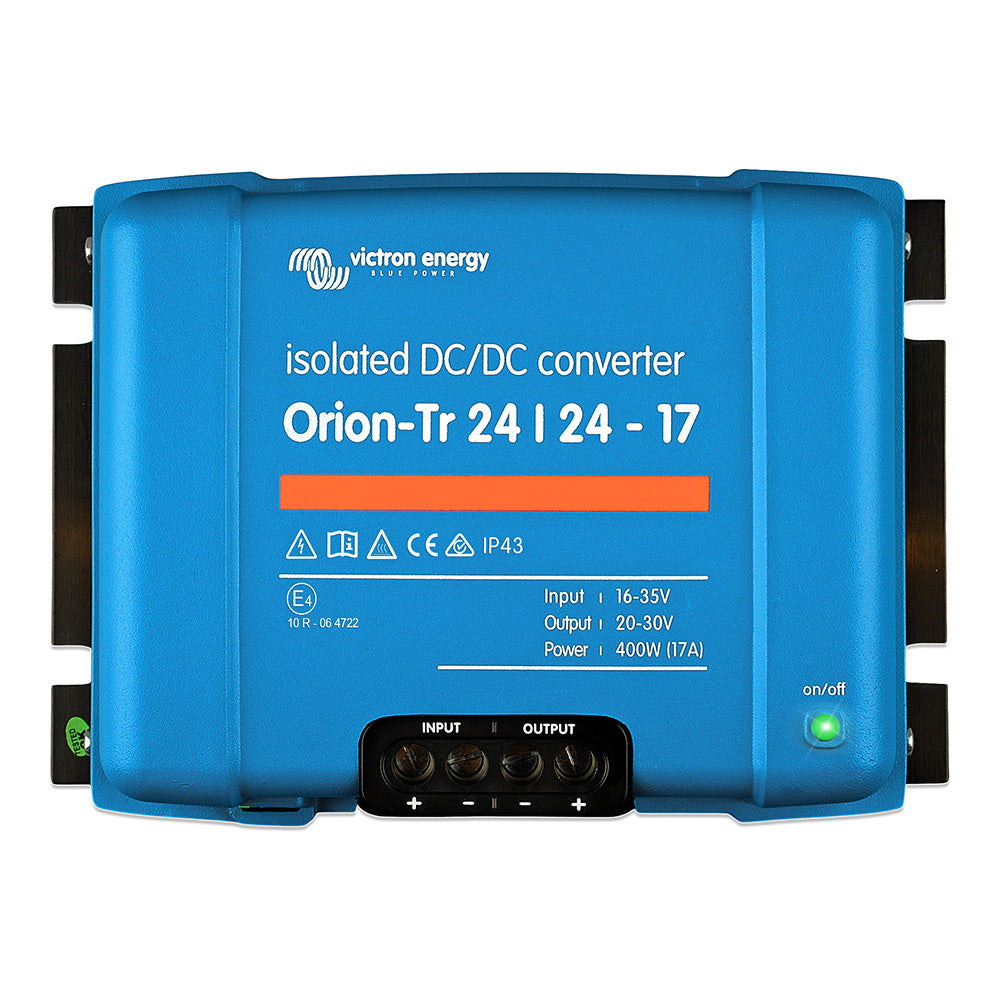

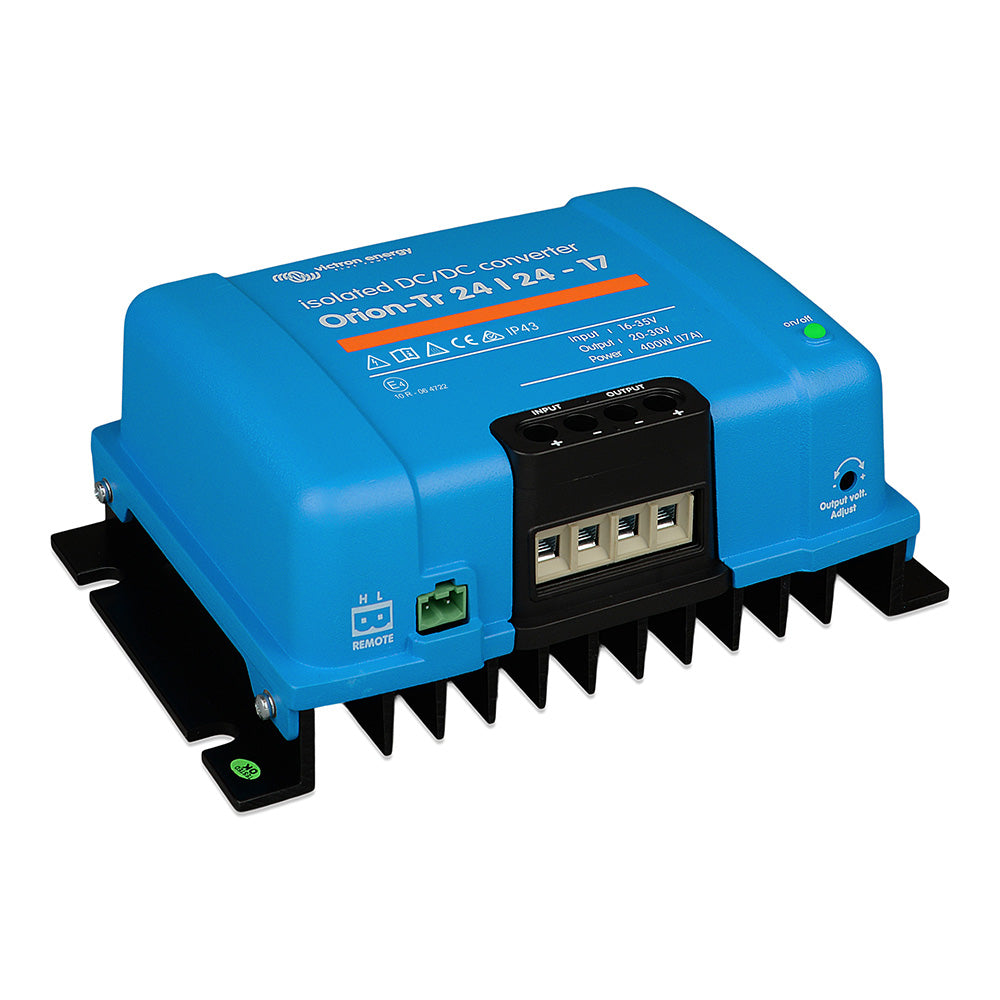

Victron Energy Orion-TR 24/24-17A Isolated DC-DC Converter, 400W
Victron Energy Orion-TR 24/24-17A Isolated DC-DC Converter, 400W
5 available
About this product
The Victron Energy Orion-TR 24/24-17A is an isolated DC-DC converter designed to provide a stable 24V output from a 24V DC input source. Featuring a 400W continuous power output, this unit is engineered for reliability in demanding electrical systems.
- Input Voltage Range: 20–35V DC
- Output: 17A continuous current at 40°C (25A maximum for 10s)
- Adjustable Output Voltage: 20–30V
- Isolated Design: Separate input and output (-) leads with 200 VDC galvanic isolation
- Protection: Short-circuit proof, high-temperature protected, and IP43 rated when mounted with terminals facing downward
- Remote Connectivity: Integrated remote on/off terminal for low-power switch operation
- Scalability: Multiple units can be paralleled to increase total output current
- Installation: Equipped with screw terminals for cable cross-sections up to 16 mm² (AWG 6)
- Dimensions: 5.1" x 7.3" x 2.8" (130 x 186 x 70 mm)
- Weight: 3.5 lbs (1.6 kg)
- Certifications: EN 60950 safety standards and ECE R10-5 automotive directive compliant
Please note: This device is not intended for battery charging applications. For battery charging needs, consider the Orion-Tr Smart series.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-113983
- Model / MPN
- ORI242441110
- UPC / GTIN
- 8719076038856
- Package dimensions (H × W × L)
- 4" X 5" X 8"
- Package weight
- 3.48 lb
- Country of origin
- INDIA
Specifications
- Charger Input - Voltage
- 24v
- Charger Output - Amps
- 17a
- Charger Output Voltage
- 24v
