• Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16"
  • Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16"
1 2
2 product views Open images for a closer look Compare photos with product details

Wichard Marine

Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16"

Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16"

SKUCT-110681

$20.14
$20.14
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Low stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

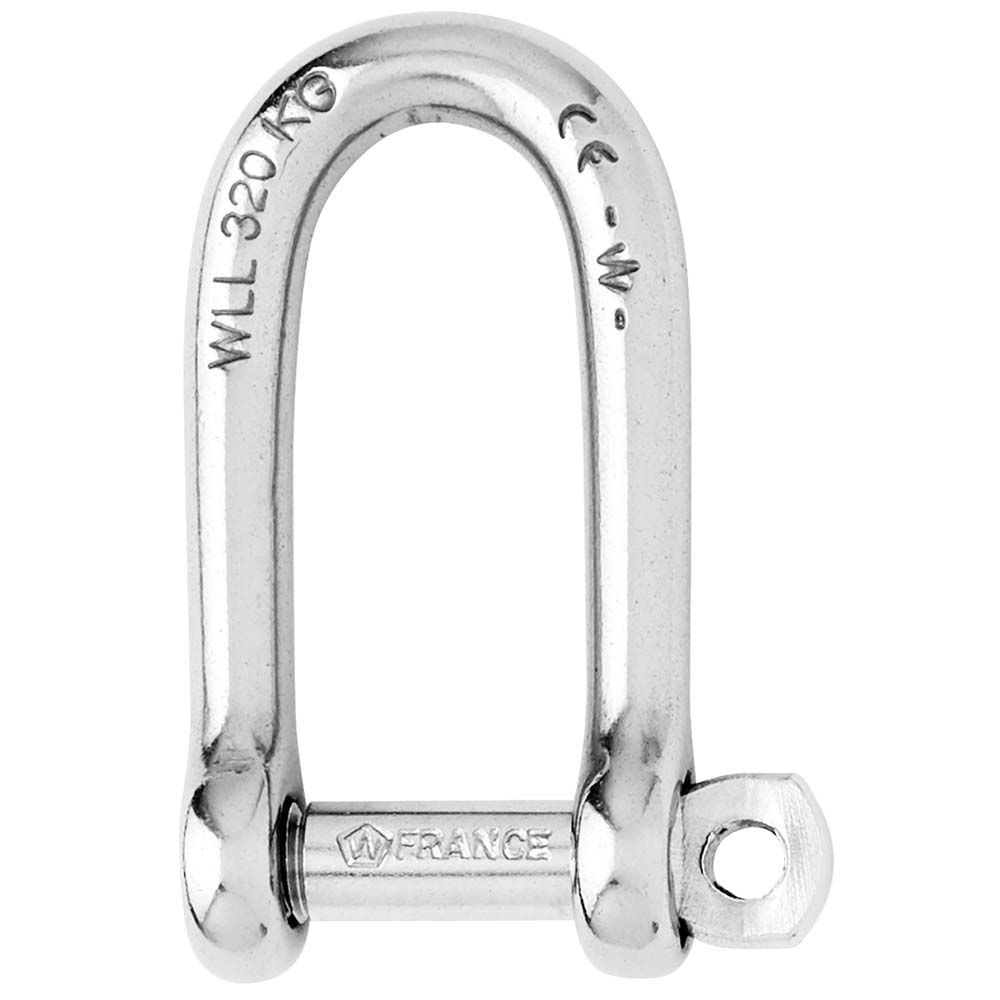

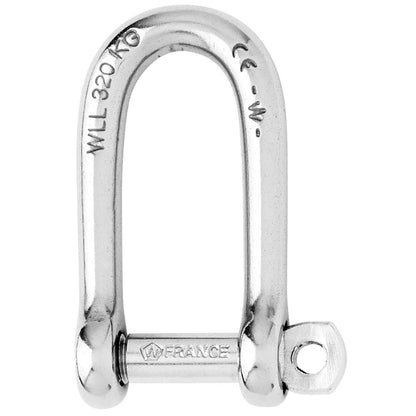

Self-Locking Long D Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking long shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications
  • CE Marking and batch number

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 880
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.037

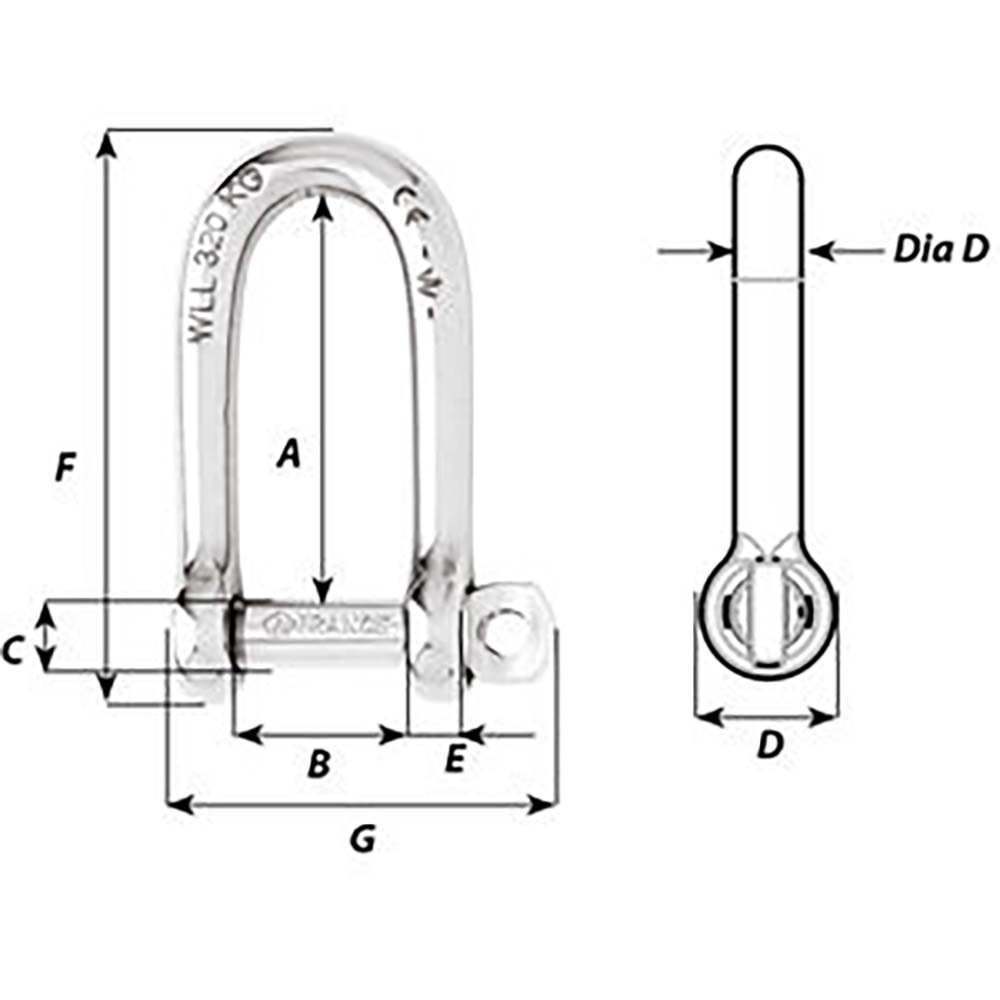

Dimensions (see 2nd image):

  • A (inch) 1-9/64"
  • B (inch) 25/64"
  • C (inch) 13/64"
  • D (inch) 25/64"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • F (inch) 1-39/64"
  • G (inch) 1-1/32"

Shipping & returns

Shipping methods, delivery estimates, and final costs appear at checkout before payment. Some bulky, supplier-shipped, or special-handling items may ship separately. See Shipping & Returns for return windows and eligibility.

Fit & compatibility

Review the product title, description, images, dimensions, part numbers, and manufacturer details before purchase. For fit-sensitive items, confirm compatibility with your boat, RV, trailer, vehicle, or equipment.

Need help choosing?

Send us the product link or SKU, plus details about your boat, RV, trailer, vehicle, or project. We will help you narrow down the right option when product fit is not obvious.

View full details
