• Wichard Captive Pin Bow Shackle, 10mm (13/32 in.)
  • Wichard Captive Pin Bow Shackle, 10mm (13/32 in.)
1 2

Brand: Wichard Marine

Wichard Captive Pin Bow Shackle, 10mm (13/32 in.)

Wichard Captive Pin Bow Shackle, 10mm (13/32 in.)

$90.39
$90.39
Sale Sold out
Shipping calculated at checkout.

Last one

About this product

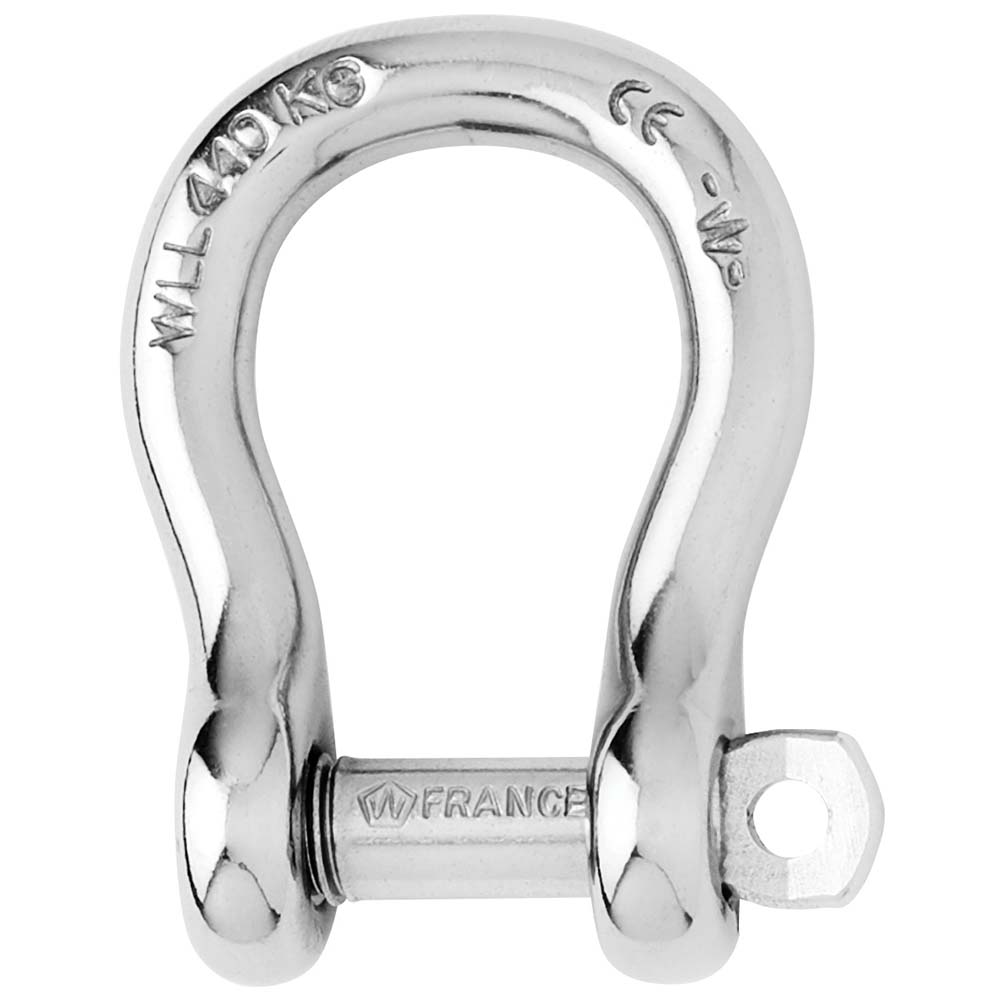

The Wichard Captive Pin Bow Shackle is a high-strength component crafted from drop-forged 316L stainless steel for superior corrosion resistance. This shackle features a secure, captive pin design that prevents accidental loss, with the shackle body providing elasticity to lock the pin in position and resist vibration. Its bow shape is specifically suited for applications requiring load attachment from multiple directions and where ample space for multiple lines or cables is needed.

  • Material: 316L stainless steel
  • Diameter: 10mm (13/32 in.)
  • Working Load: 3,430 lbs
  • WLL: 2,290 lbs
  • Breaking Load: 11,460 lbs
  • Weight: 0.306 lbs
  • Design: Single-handed operation with captive pin
  • Compliance: CE marked with batch numbering for traceability
  • Quantity: Sold as an individual unit

Note: WLL rating applies specifically to industrial lifting applications.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-110709
Model / MPN
1445W
UPC / GTIN
768536014457
Package dimensions (H × W × L)
1" X 3" X 6"
Package weight
0.32 lb

Specifications

Type
Wichard Captive Pin Bow Shackle - Diameter 10mm - 13/32"
