Brand: Wichard Marine
Wichard Captive Pin D Shackle, 10mm (13/32 in.)
Wichard Captive Pin D Shackle, 10mm (13/32 in.)
Last one
About this product
This Wichard Captive Pin D Shackle is precision-forged from grade 316L stainless steel, offering exceptional strength and resistance to corrosion for demanding marine environments. The captive pin design ensures the pin remains securely attached to the shackle body even when opened, preventing loss during installation or adjustment. The pin locks into integrated indentations, providing reliable security against loosening caused by vibrations.
Key Features:
- Forged from durable 316L stainless steel
- Captive pin mechanism stays connected to the shackle body
- Pin locks into indentations to prevent loosening from vibration
- Suitable for a wide range of marine attachments, including blocks and heads
- Working load: 3,350 lb
- WLL: 2,290 lb
- Breaking load: 11,460 lb
- Weight: 0.251 lb
- Diameter: 10mm (13/32 in.)

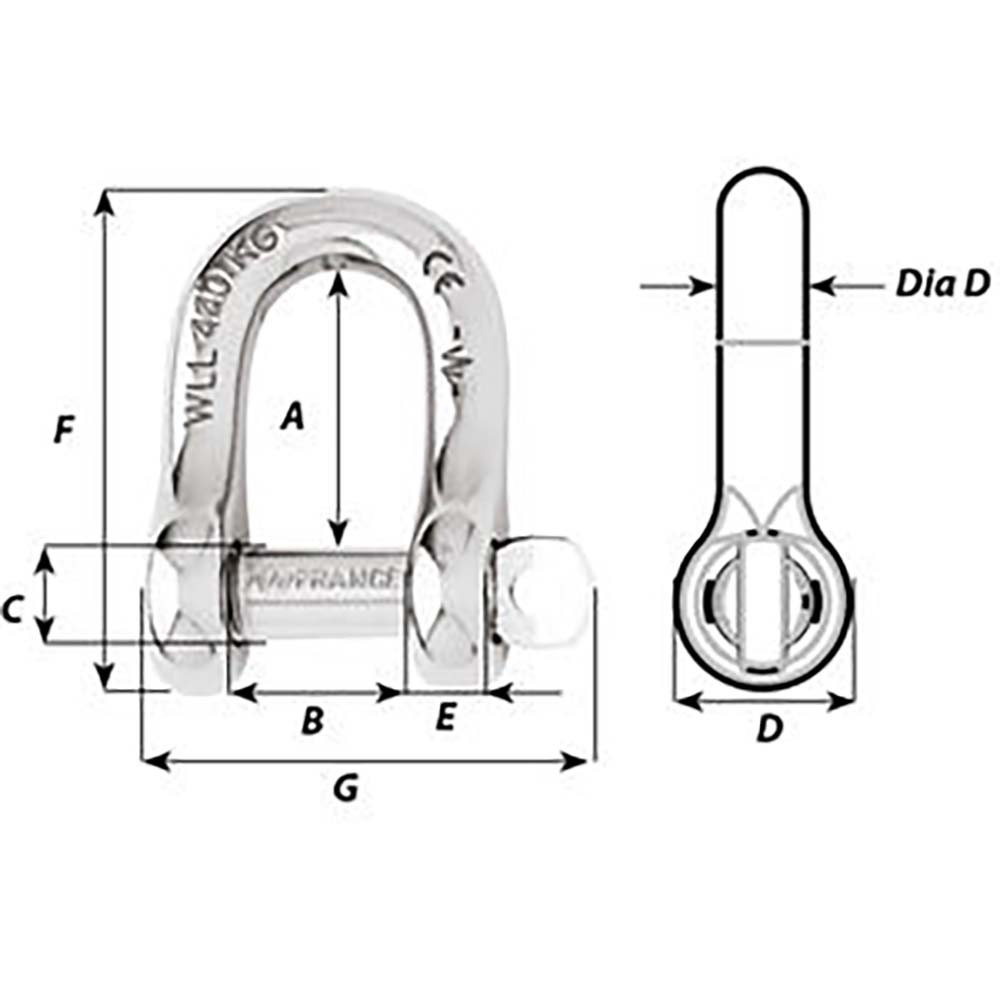

Dimensions:
- A: 1-19/64 in.
- B: 25/32 in.
- C: 7/16 in.
- D: 53/64 in.
- D Diameter: 25/64 in.
- E: 23/64 in.
- F: 2-9/32 in.
- G: 2-3/32 in.
Manufacturer Part Number: 1405W
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-110696
- Model / MPN
- 1405W
- UPC / GTIN
- 3587790014051
- Package dimensions (H × W × L)
- 1" X 2" X 6"
- Package weight
- 0.27 lb
Specifications
- Type
- Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"
