Brand: Wichard Marine

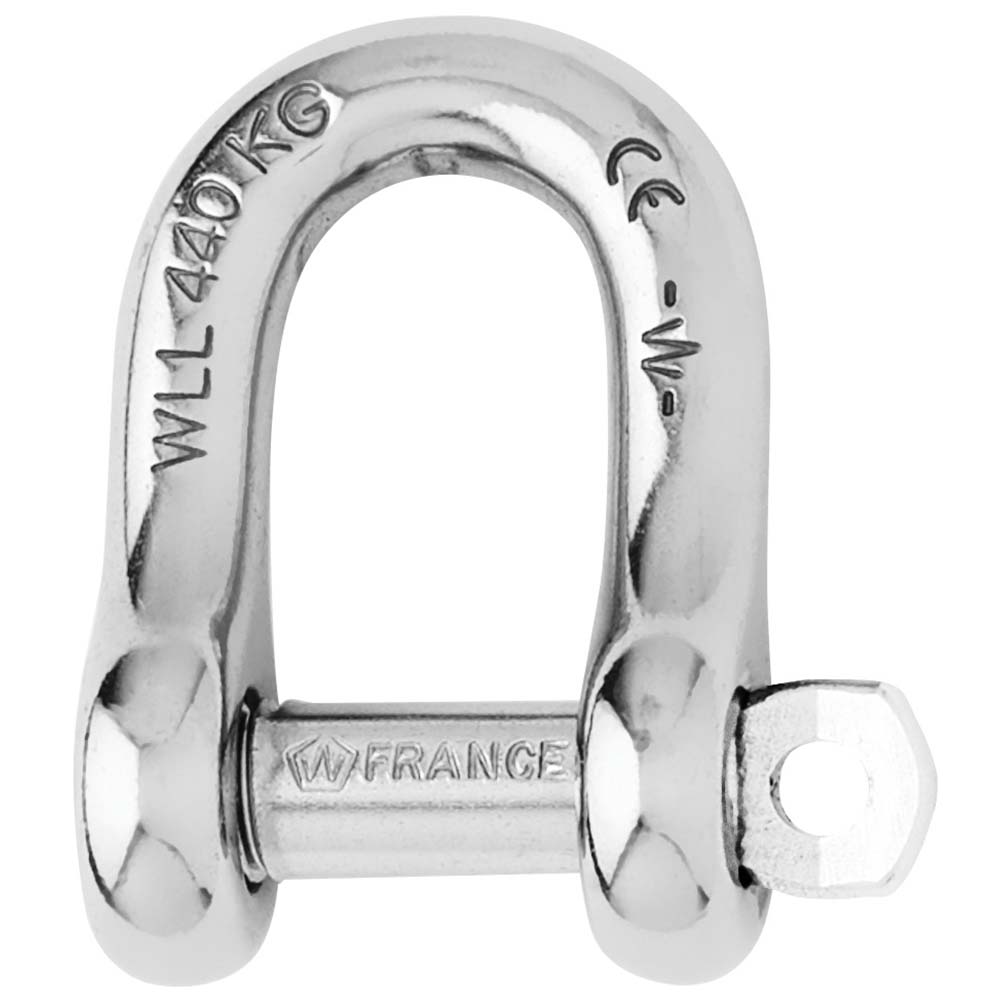

Wichard Captive Pin D Shackle, 12mm (15/32 in.) - 1406W
Wichard Captive Pin D Shackle, 12mm (15/32 in.) - 1406W
2 available
This Wichard captive pin D shackle is forged from grade 316L stainless steel for durability and corrosion resistance. The design features a pin that remains connected to the shackle body at all times, preventing loss even when opened. It locks securely into indentations to resist loosening caused by vibrations.
Key Features and Specifications:
- Pin Diameter: 12 mm (15/32 in.)
- Material: 316L stainless steel
- Working Load: 4,580 lbs
- Working Load Limit (WLL): 3,080 lbs
- Breaking Load: 15,430 lbs
- Weight: 0.414 lbs
- Pin remains attached to body when open

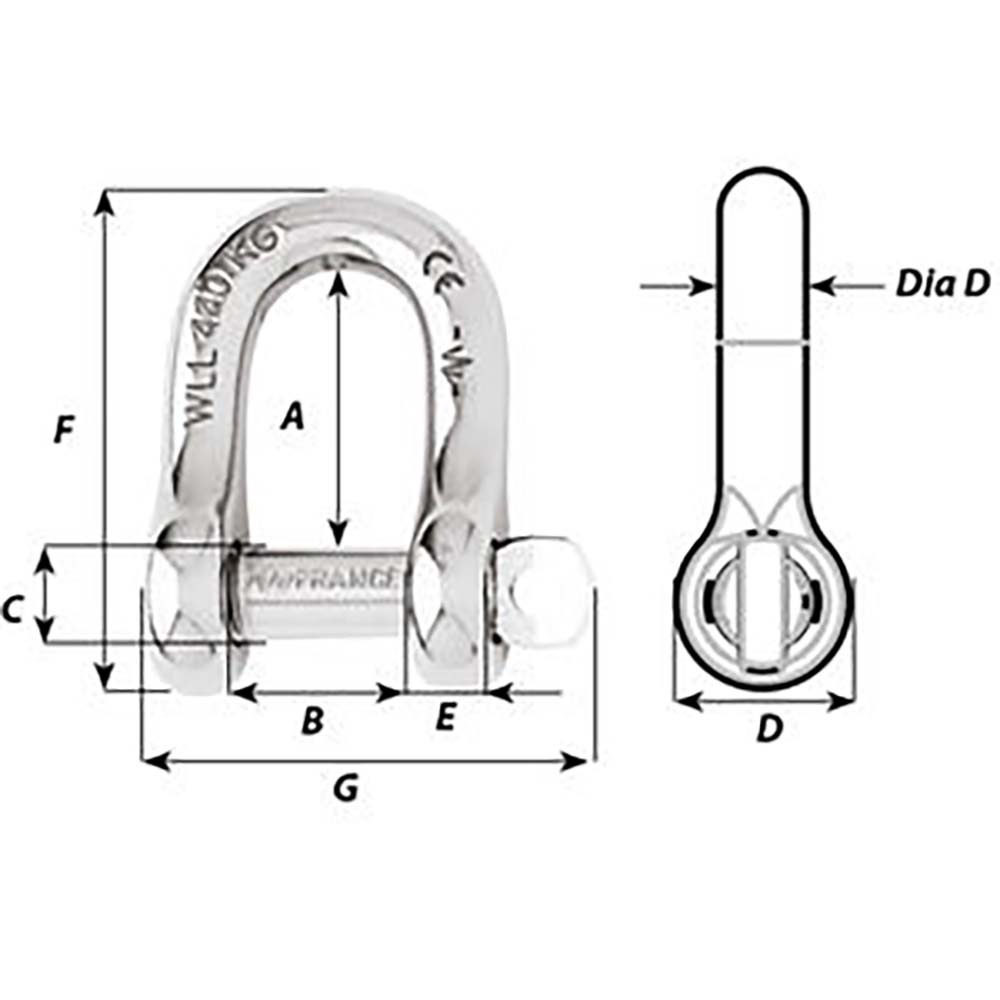

Dimensions:
- A: 1-17/32 in.
- B: 15/16 in.
- C: 33/64 in.
- D: 15/16 in.
- E: 7/16 in.
- F: 2-23/32 in.
- G: 2-7/16 in.
This shackle is suitable for standard marine rigging and attachment applications, such as securing blocks or heads.
Product facts
- CT SKU
- CT-110697
- Model / MPN
- 01406
- UPC / GTIN
- 768536014068
- Package dimensions
- 2" X 2" X 6"
- Package weight
- 0.42 lb
