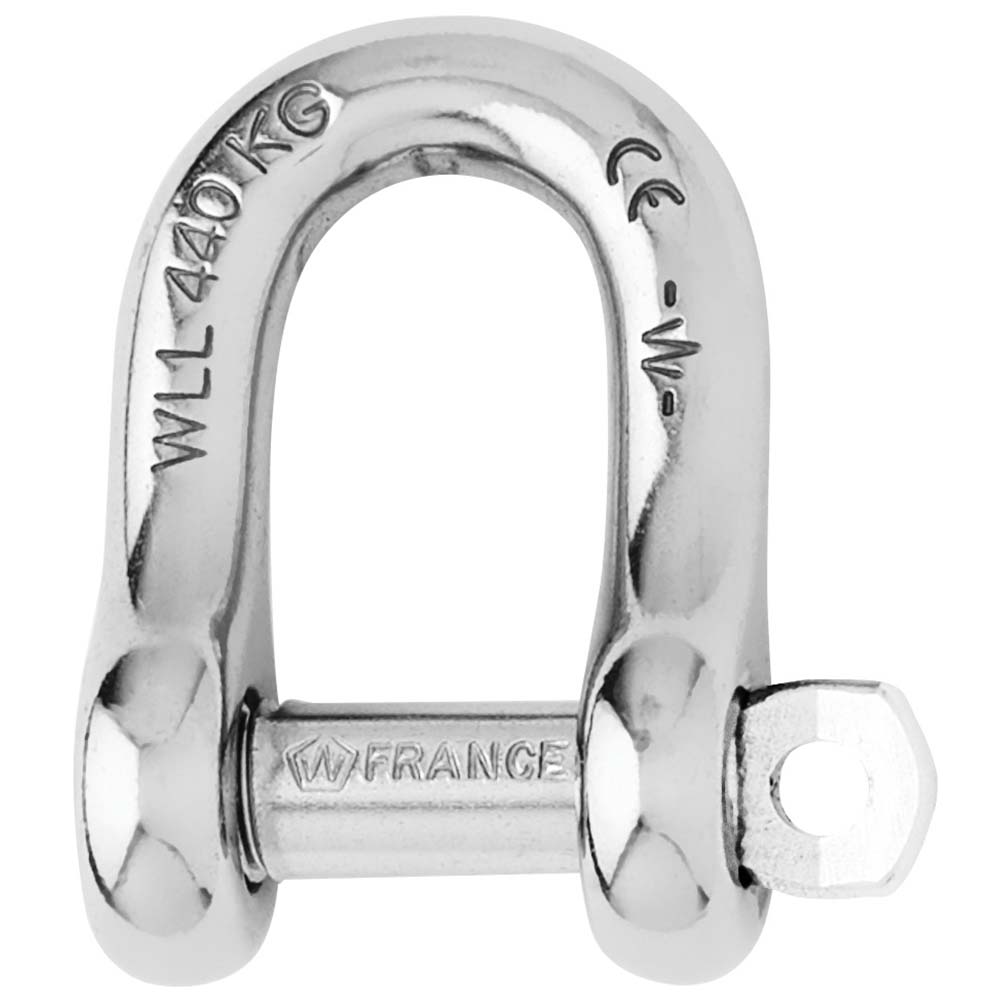

Wichard Captive Pin D Shackle, 3/16 in. (5mm)

The Wichard Captive Pin D Shackle is constructed from forged grade 316L stainless steel, offering high resistance to corrosion and excellent working and breaking loads. Designed for security and convenience, the pin remains permanently connected to the shackle body even when opened, and it locks into specific indentations to prevent loosening from vibrations.

Key Features and Specifications:

• Diameter: 5mm (3/16 in.)
• Material: Grade 316L stainless steel
• Working load: 1,050 lbs
• Working Load Limit (WLL): 660 lbs
• Breaking load: 3,300 lbs
• Weight: 0.035 lbs
• Pin design: Captive, stays attached to the shackle body
• Vibration resistance: Pin locks into indentations

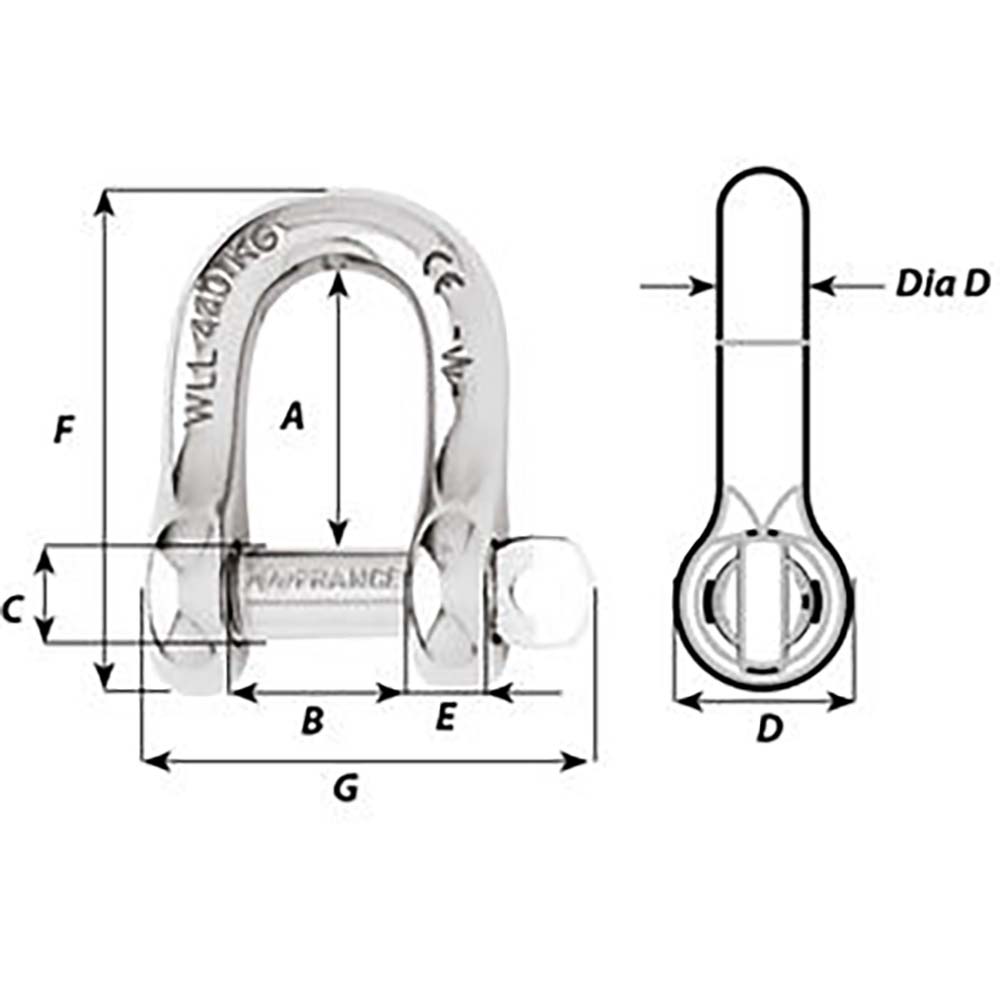

This shackle is suitable for standard marine rigging applications and attachment points such as blocks and heads. Dimensions include: A: 5/8 in., B: 25/64 in., C: 15/64 in., D: 7/16 in., D diameter: 13/64 in., E: 13/64 in., F: 7/16 in., G: 1-3/16 in., and H: 1-1/16 in. Manufacturer part number: 1402W.
