Brand: Wichard Marine
Wichard Captive Pin D Shackle, 1/4 in. (6mm), 316L Stainless Steel
Wichard Captive Pin D Shackle, 1/4 in. (6mm), 316L Stainless Steel
Last one
About this product

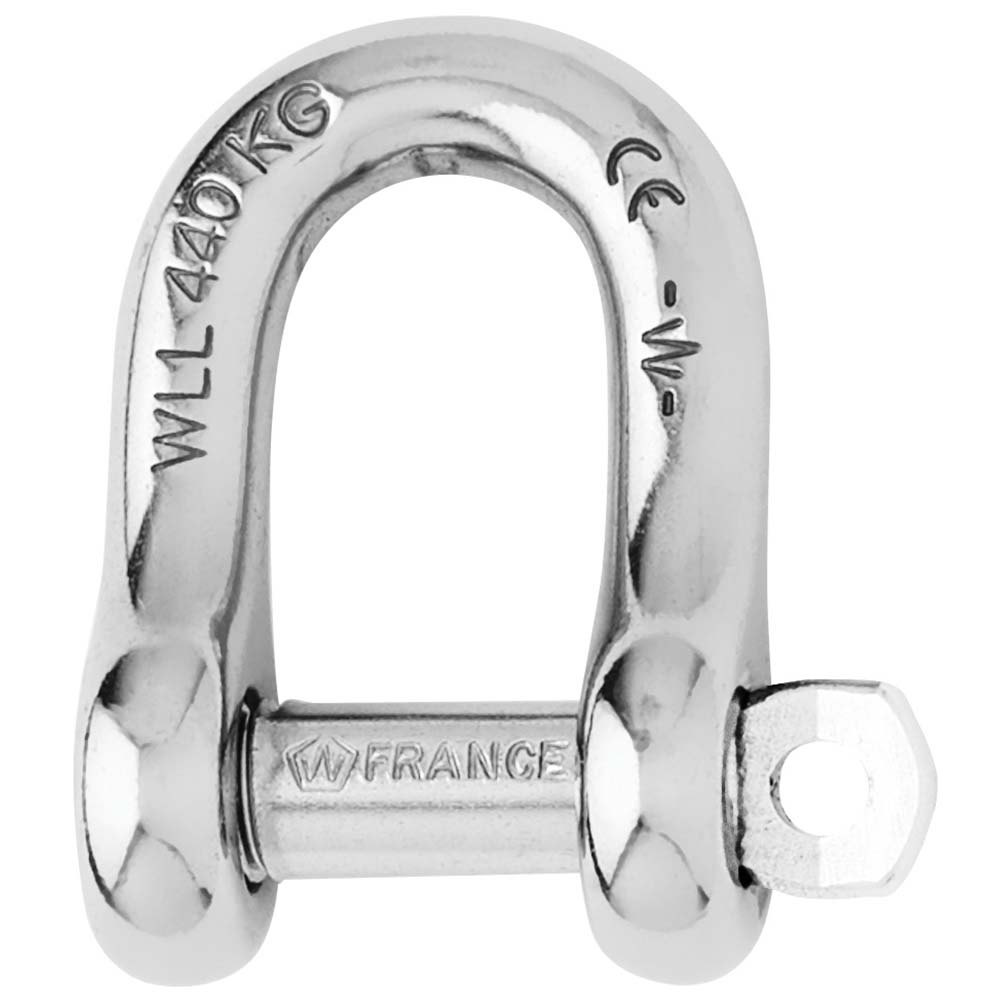

This Wichard Captive Pin D Shackle is precision-forged from grade 316L stainless steel for exceptional durability and load-bearing performance. The captive pin design ensures it remains attached to the shackle body even when opened, and locks into position to prevent loosening caused by vibrations.
Key Features:
- Forged 316L stainless steel construction
- Captive pin stays connected to the shackle body
- Locking pin mechanism resists vibration loosening
- Suitable for general shackle use and rigging attachments like blocks
- Working Load: 1,490 lbs
- Working Load Limit (WLL): 970 lbs
- Breaking Load: 4,850 lbs
- Weight: 0.062 lbs

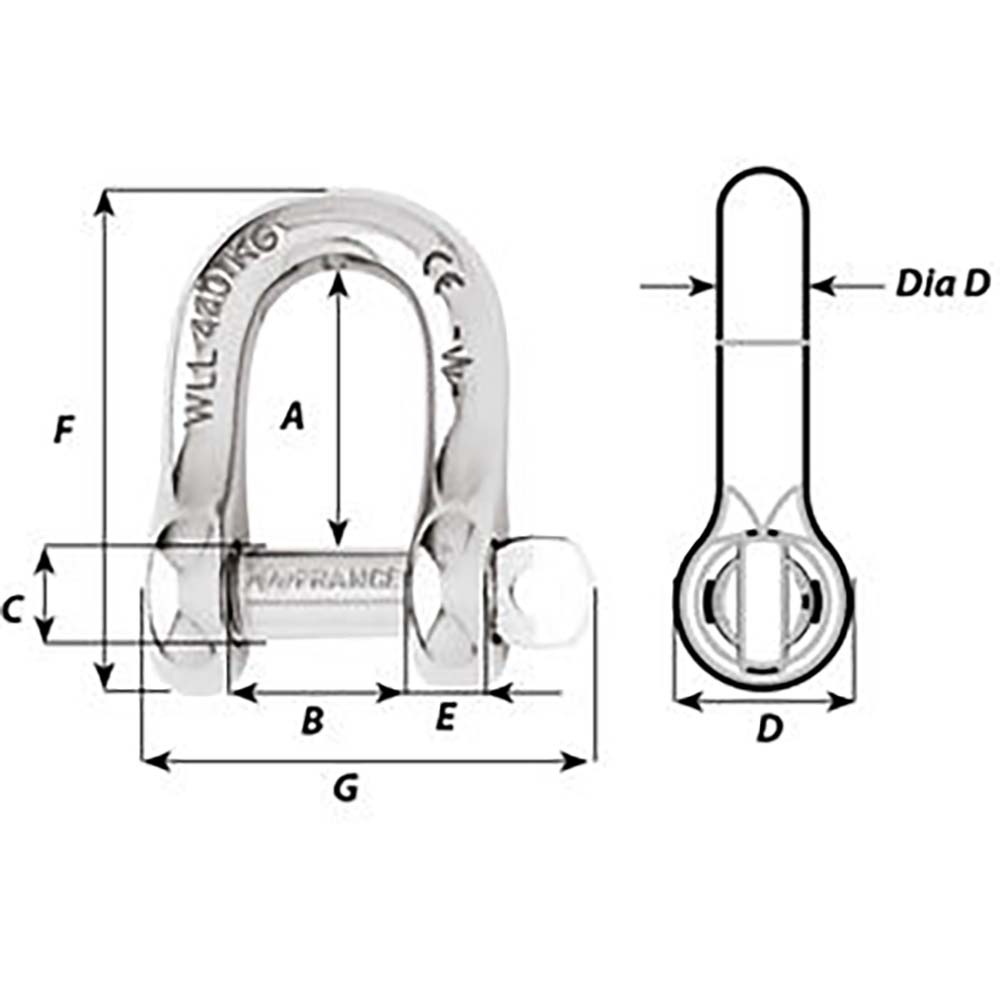

Dimensions:
- A: 25/32 in.
- B: 15/32 in.
- C: 9/32 in.
- D: 35/64 in.
- D diameter: 15/64 in.
- E: 15/64 in.
- F: 1-27/64 in.
- G: 1-17/64 in.
Manufacturer Part Number: 1403W
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-110694
- Model / MPN
- 1403W
- UPC / GTIN
- 768536014037
- Package dimensions (H × W × L)
- 1" X 2" X 6"
- Package weight
- 0.08 lb
Specifications
- Type
- Wichard Captive Pin D Shackle - Diameter 6mm - 1/4"
