Brand: Wichard Marine
Wichard Captive Pin Long D Shackle, 6mm (1/4 in.)
Wichard Captive Pin Long D Shackle, 6mm (1/4 in.)
Sold out
About this product

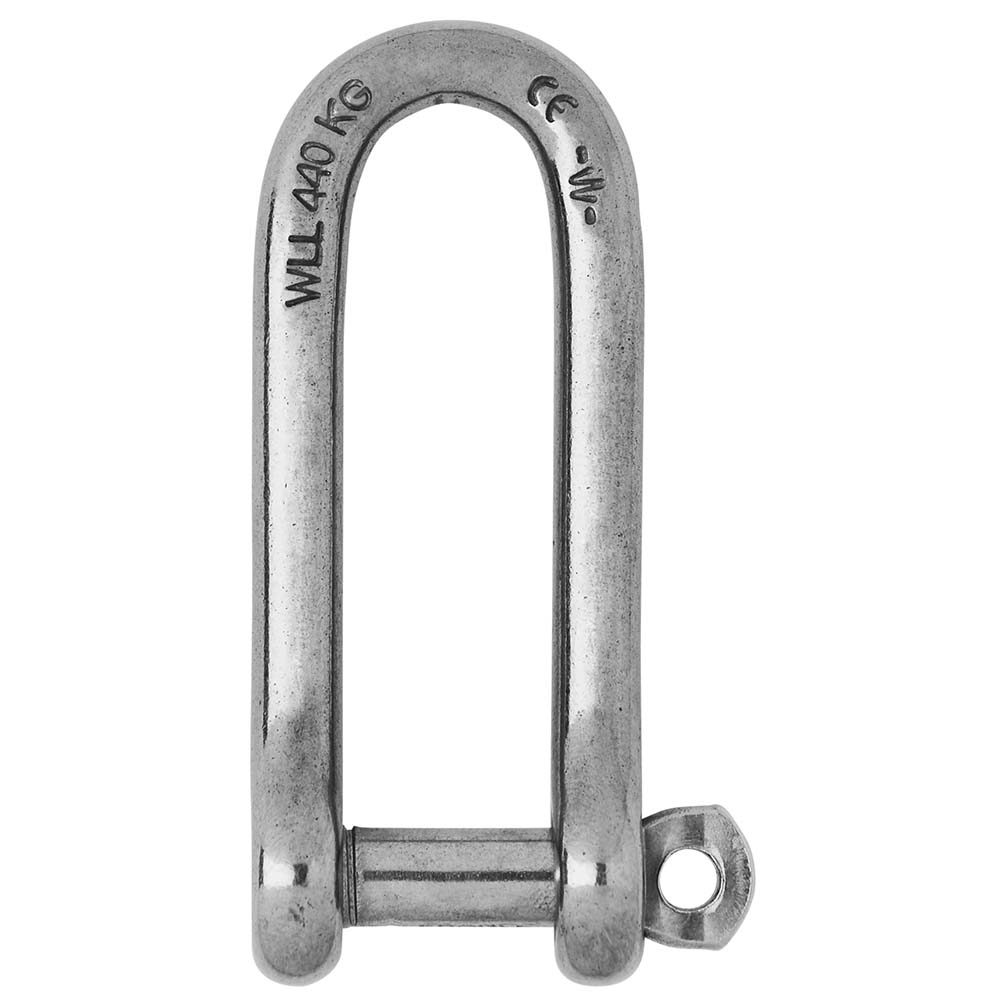

This Wichard Captive Pin Long D Shackle is precision-forged from grade 316L stainless steel for durability and corrosion resistance. Featuring a captive pin design, the shackle remains connected to the body even when open, preventing loss, and includes a locking mechanism for the pin to prevent loosening due to vibration.
Key Features:
- Model Number: 1413W
- Material: 316L stainless steel
- Diameter: 6 mm (1/4 in.)
- Working Load: 1,490 lbs
- Working Load Limit (WLL): 970 lbs
- Breaking Load: 4,850 lbs
- Weight: 0.088 lbs

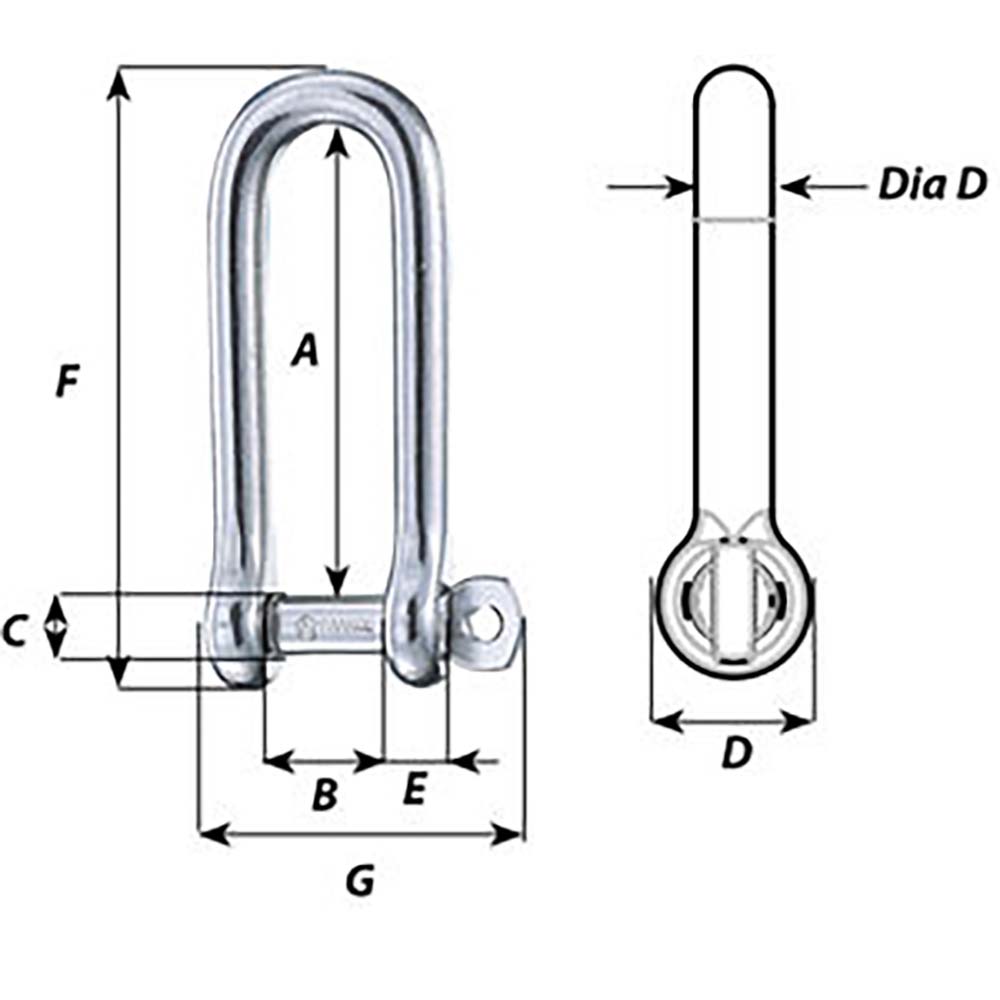

- Dimensions (Length x Width/Opening): 1-13/16 in. (A) x 15/32 in. (B)
- Pin Diameter: 15/64 in.
- Overall Length: 2-31/64 in. (F)
- Clearance Width: 1-17/64 in. (G)
This shackle is suitable for standard marine applications requiring extra length, including attaching blocks and headsails.
