Brand: Wichard Marine

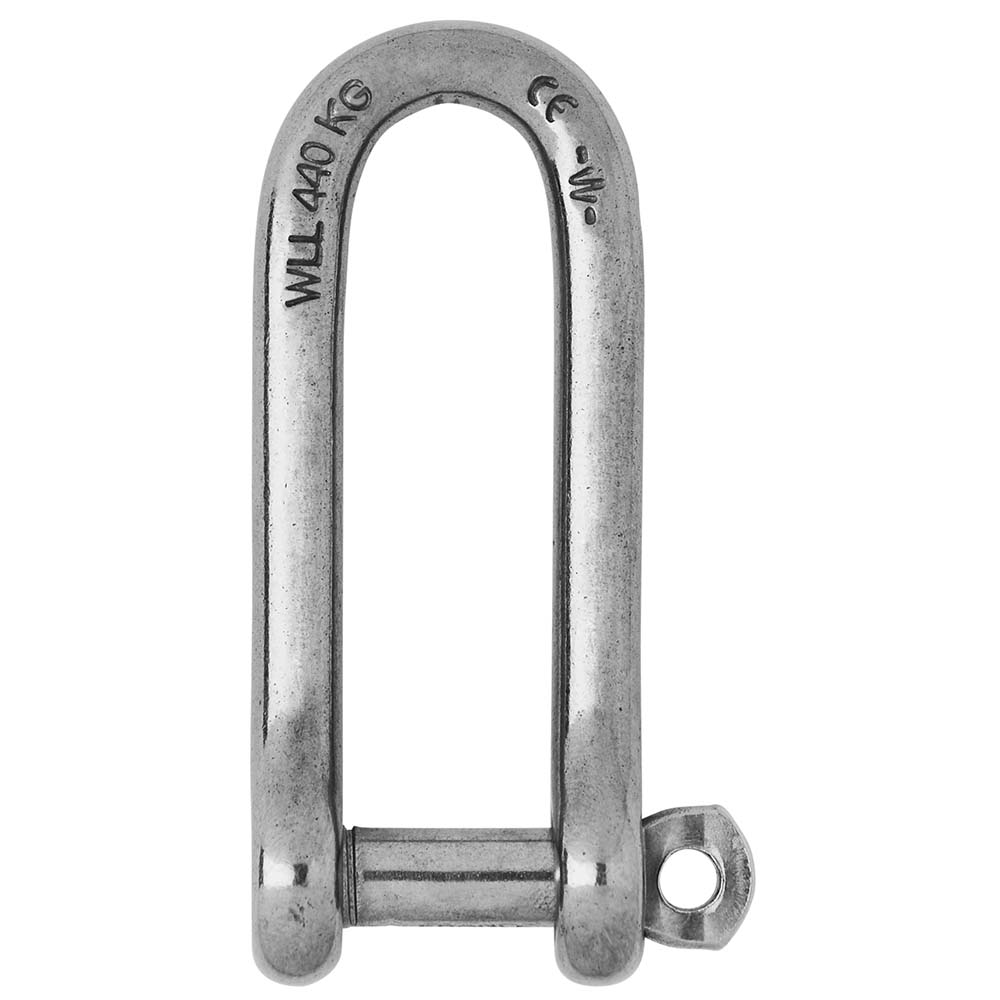

Wichard Captive Pin Long D Shackle, 5/16 in. (8mm) Diameter
Wichard Captive Pin Long D Shackle, 5/16 in. (8mm) Diameter
2 available
About this product
This Wichard Long D Shackle features a captive pin design forged from 316L grade stainless steel. The captive pin remains connected to the shackle body at all times, even when opened, and locks into specific indentations to prevent loosening caused by vibrations.
Key Features:
- Forged 316L stainless steel construction
- Captive pin design for secure handling
- High working and breaking loads
- Suitable for attachment applications including blocks and heads
Technical Specifications:
- Diameter: 5/16 in. (8mm)
- Working load: 2,200 lbs.
- Working load limit (WLL): 1,580 lbs.
- Breaking load: 7,930 lbs.
- Weight: 0.203 lbs.
- Manufacturer part number: 1414W
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-110700
- Model / MPN
- 1414W
- UPC / GTIN
- 3587790014143
- Package dimensions (H × W × L)
- 1" X 3" X 6"
- Package weight
- 0.21 lb
Specifications
- Type
- Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16"
