Brand: Wichard Marine

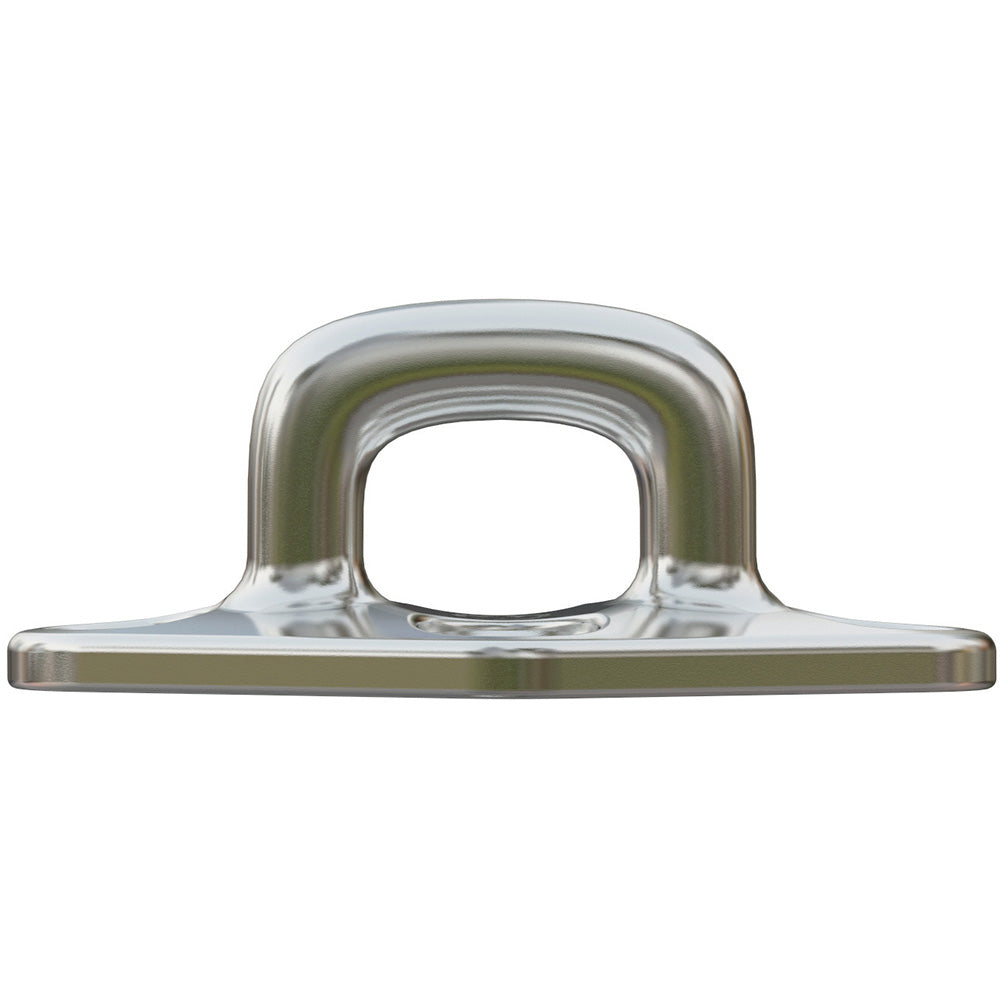

Wichard Diamond Square Pad Eye, 60mm, M5 Screw
Wichard Diamond Square Pad Eye, 60mm, M5 Screw
Last one
About this product
The Wichard Diamond Pad Eye is a high-performance, corrosion-resistant fastening point crafted from Duplex stainless steel. This square pad eye is optimized for various marine applications, including mast foot blocks and reefing blocks.
- Length: 60mm (2-23/64 in.)
- Fastening: Designed for M5 screws
- Material: Duplex stainless steel
- Working Load: 2,645.5 lbs (1,200 kg) at 90°
- Breaking Load: 7,054.7 lbs (3,200 kg) at 90°
- Weight: 0.13 lbs (59 g)

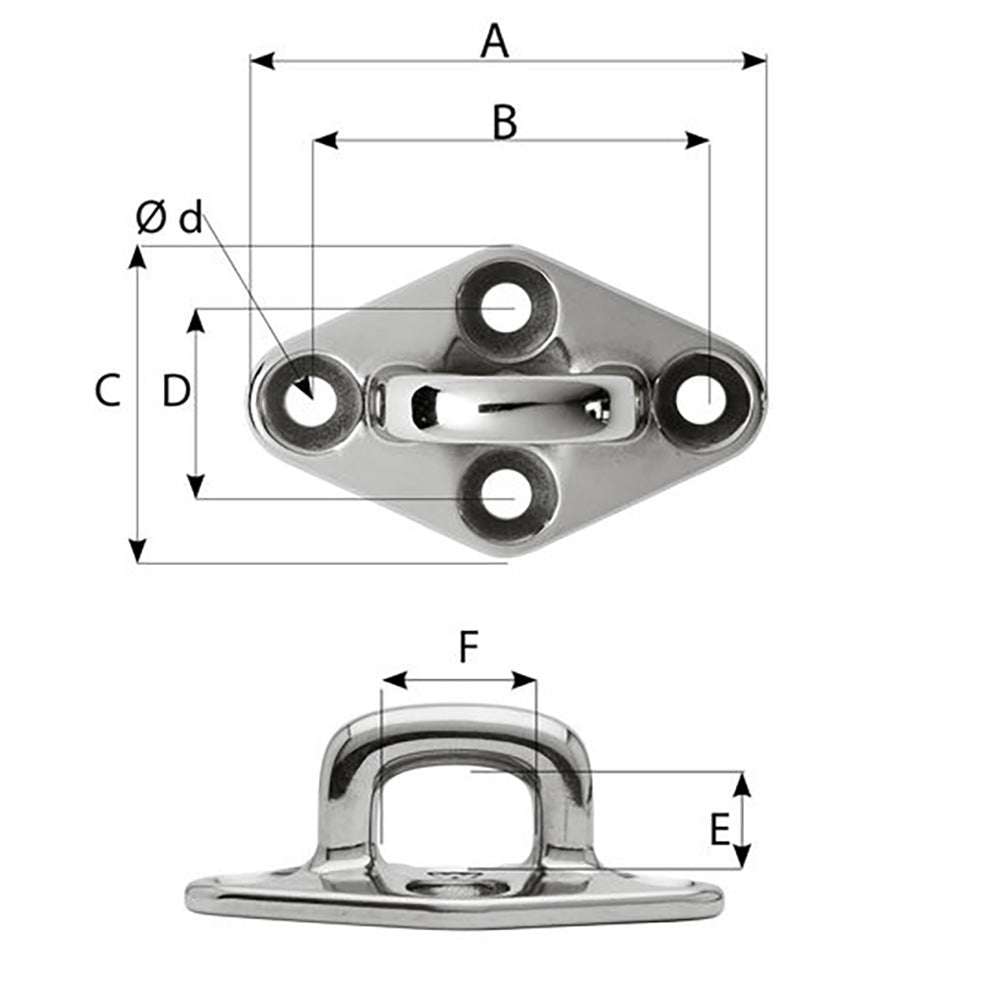

- Dimensions: B: 46mm (1-13/16 in.); C: 38mm (1-1/2 in.); D: 24mm (15/16 in.); E: 12mm (15/32 in.); F: 19mm (3/4 in.)
Sold as an individual unit. Please note that the Working Load (WL) rating is intended for nautical applications. For industrial use, the Working Load Limit (WLL) is calculated as the breaking load divided by 5.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-112847
- Model / MPN
- 6654W
- Package dimensions (H × W × L)
- 1" X 3" X 6"
- Package weight
- 0.14 lb
Specifications
- Type
- Wichard Diamond Pad Eye - Square - 60mm Length (2-23/64") -
