Brand: Wichard Marine

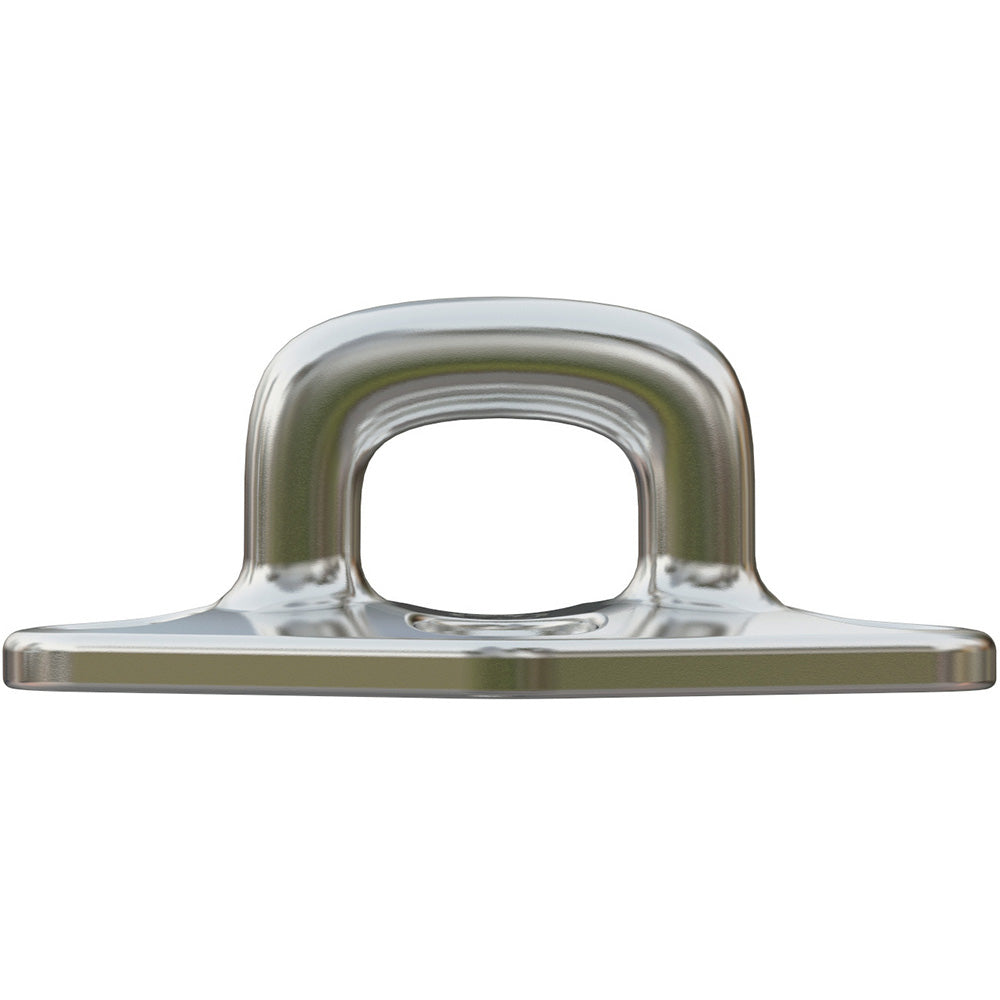

Wichard Square Diamond Pad Eye, 98mm, M8 Screw
Wichard Square Diamond Pad Eye, 98mm, M8 Screw
Sold out
About this product
This Wichard square diamond pad eye features optimized dimensions and high-grade duplex stainless steel construction for an excellent strength-to-corrosion-resistance ratio. Designed for nautical applications, it is suitable for mast foot blocks, reefing blocks, and various fastenings.
Specifications:
- Material: Duplex stainless steel
- Compatible screw size: M8
- Length: 98mm (3 55/64 in.)
- Working Load (90° & 45°): 9,479.8 lb (4,300 kg)
- Working Load (0°): 9,038.9 lb (4,100 kg)
- Breaking Load (90° & 45°): 25,573.6 lb (11,600 kg)
- Breaking Load (0°): 24,250.8 lb (11,000 kg)
- Weight: 0.562 lb (255 g)

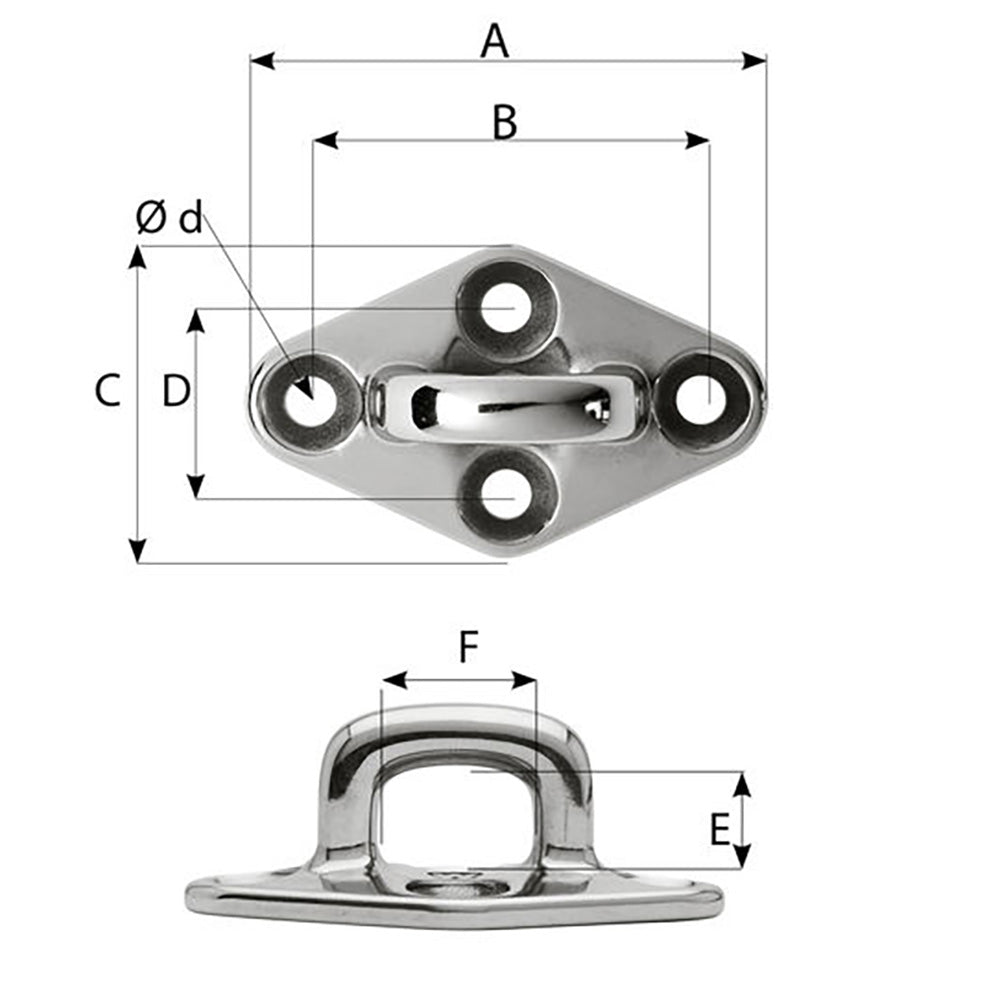

- Dimensions (mm): A=98, B=73, C=59, D=35, E=19.5, F=27
Each unit is sold individually. Note that the Working Load (WL) rating is intended for nautical applications, while the industrial Working Load Limit (WLL) is calculated as the breaking load divided by 5.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-112849
- Model / MPN
- 6656W
- Package dimensions (H × W × L)
- 1" X 2" X 6"
- Package weight
- 0.55 lb
Specifications
- Type
- Wichard Diamond Pad Eye - Square - 98mm Length (3-55/64") -
