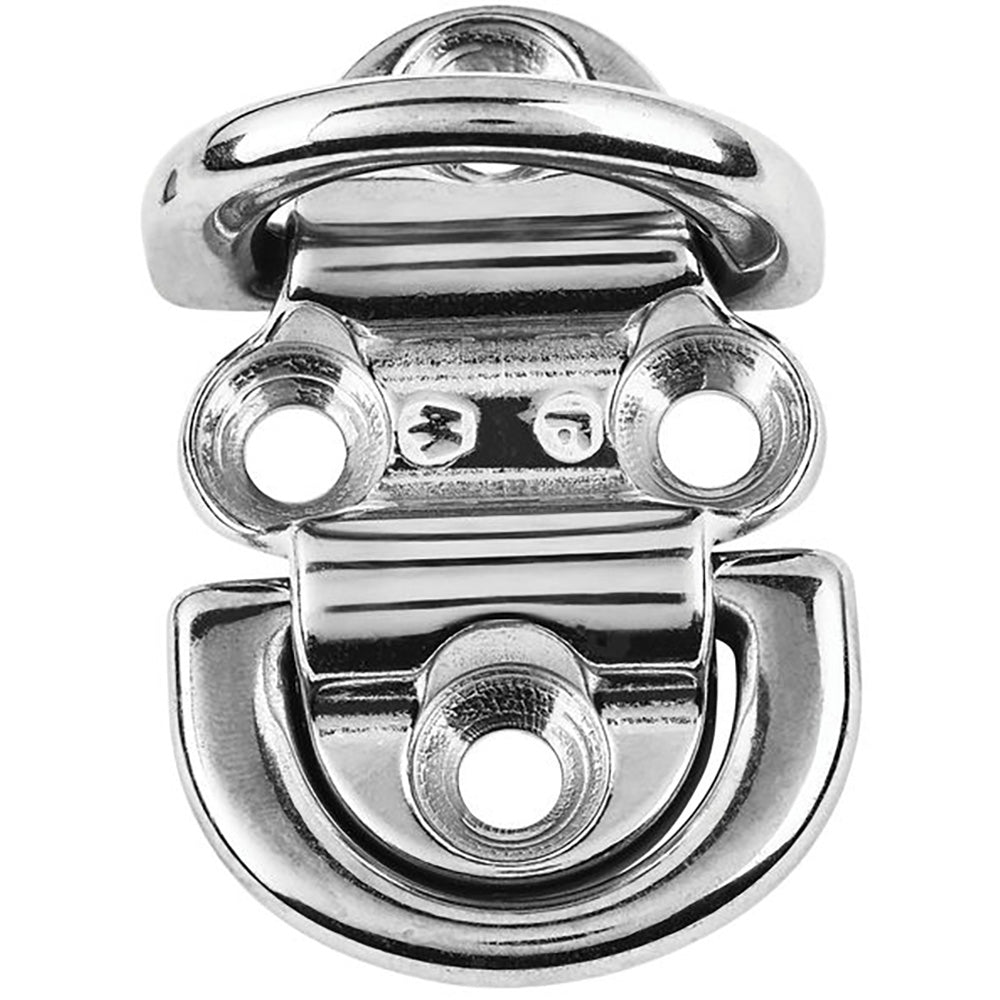

Wichard Double Folding Pad Eye, 10mm

The Wichard Double Folding Pad Eye is a drop-forged 316L stainless steel attachment point designed for versatile marine applications, including stays, blocks, and jib tack points. Featuring a modern, optimized design, this pad eye folds down when not in use to minimize tripping hazards and includes a silicone pad to reduce noise and vibrations.

Key Features:

• Constructed from high-strength 316L stainless steel
• Fully drop forged for high breaking and working loads regardless of angle
• Foldable design to prevent injury and clear deck space
• Silicone pad prevents noise and vibration
• Suitable for attaching multiple stays or shrouds
• Manufacturer Part Number: 6566W

Specifications:

• Rod Diameter: 10 mm (25/64 in.)
• Working Load: 10,050 lb (4,560 kg)
• Breaking Load: 19,840 lb (9,000 kg)
• Weight: 1.089 lb (494 g)

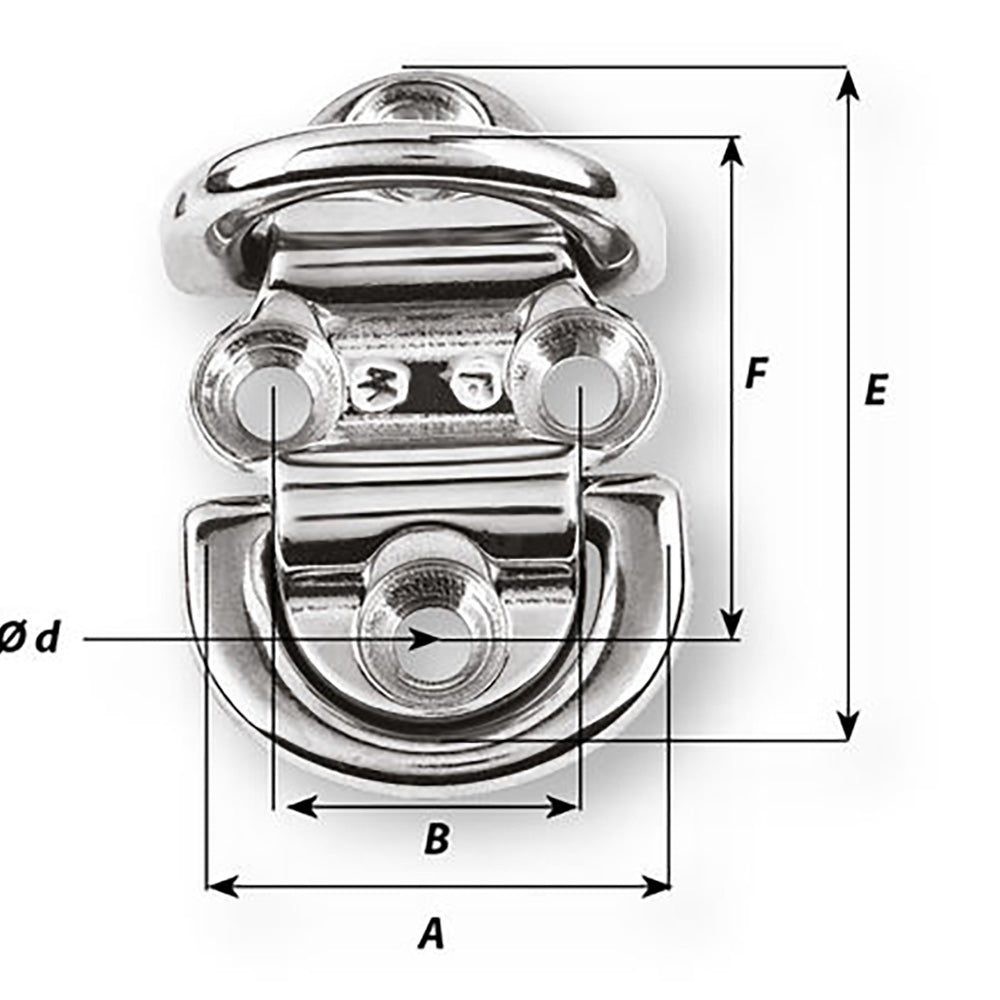

• Dimensions (mm): A: 75, B: 45, C: 23, d: 10.5, D: 10, E: 104, F: 78
• Sold as an individual unit

Note: Working Load (WL) figures are intended for nautical applications. For industrial applications, the Working Load Limit (WLL) is calculated as the breaking load divided by a safety factor of 5.
