Wichard Marine M12 x 175mm Forged Eye Bolt - 120mm Length
Wichard Marine M12 x 175mm Forged Eye Bolt - 120mm Length
3 available
About this product
The Wichard Marine forged eye bolt is a single-piece component designed for secure fastening in nautical, towing, and waterskiing applications. Manufactured from 316L grade stainless steel, this eye bolt offers significant strength and durability.
Specifications:
- Part Number: 6497W
- Material: 316L stainless steel
- Dimensions: M12 x 175mm thread, 120mm length
- Working Load: 2400 kg (5290 lb)
- Breaking Load: 3500 kg (7710 lb)
- Max Tightening Torque: 60 Nm
- Weight: 163 g (0.359 lb)

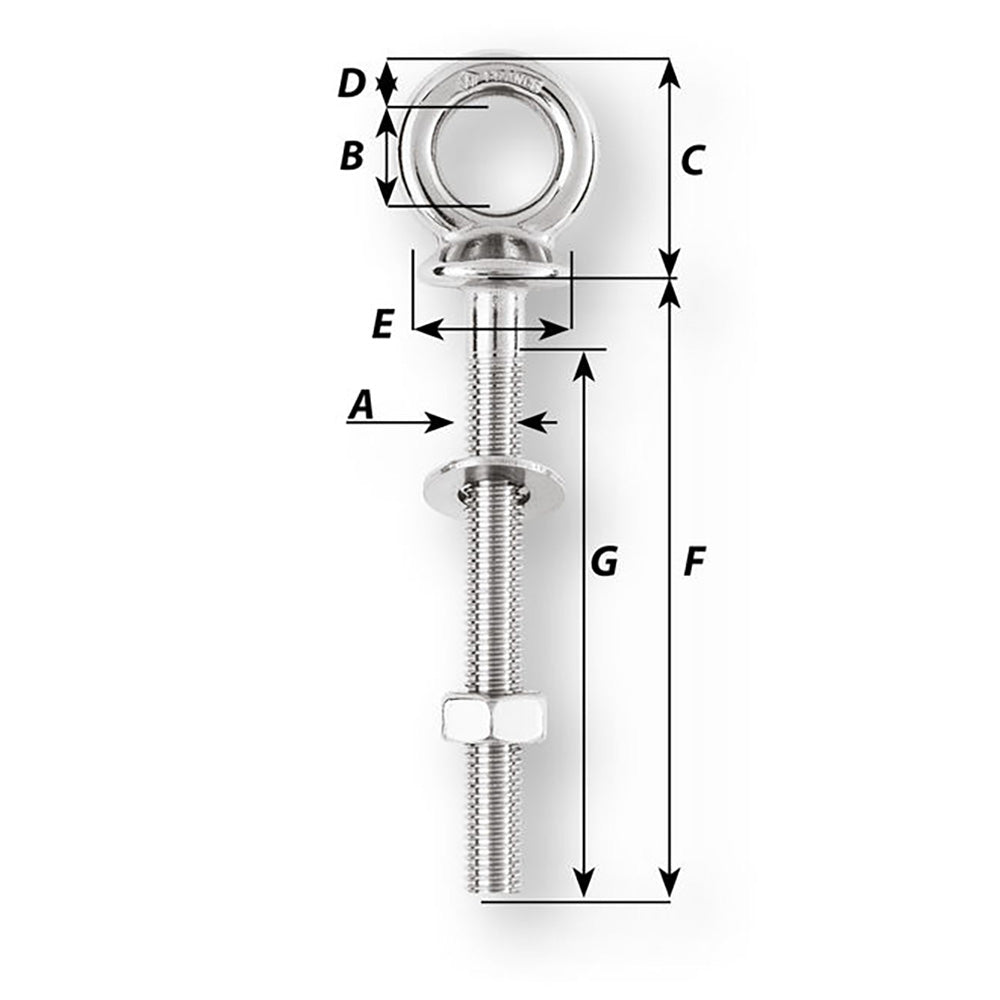

Additional Dimensions:
- Inner Eye Diameter: 18 mm (45/64 in.)
- Eye Width (Internal): 41 mm (1 39/64 in.)
- Eye Thickness: 8 mm (5/16 in.)
- Base to Eye: 28 mm (1 7/64 in.)
- Total Thread Length: 105 mm (4 9/64 in.)
Note: Sold as an individual unit. Working Load (WL) applies to nautical applications; for industrial applications, the Working Load Limit (WLL) is calculated as the breaking load divided by 5.
