Brand: Wichard Marine

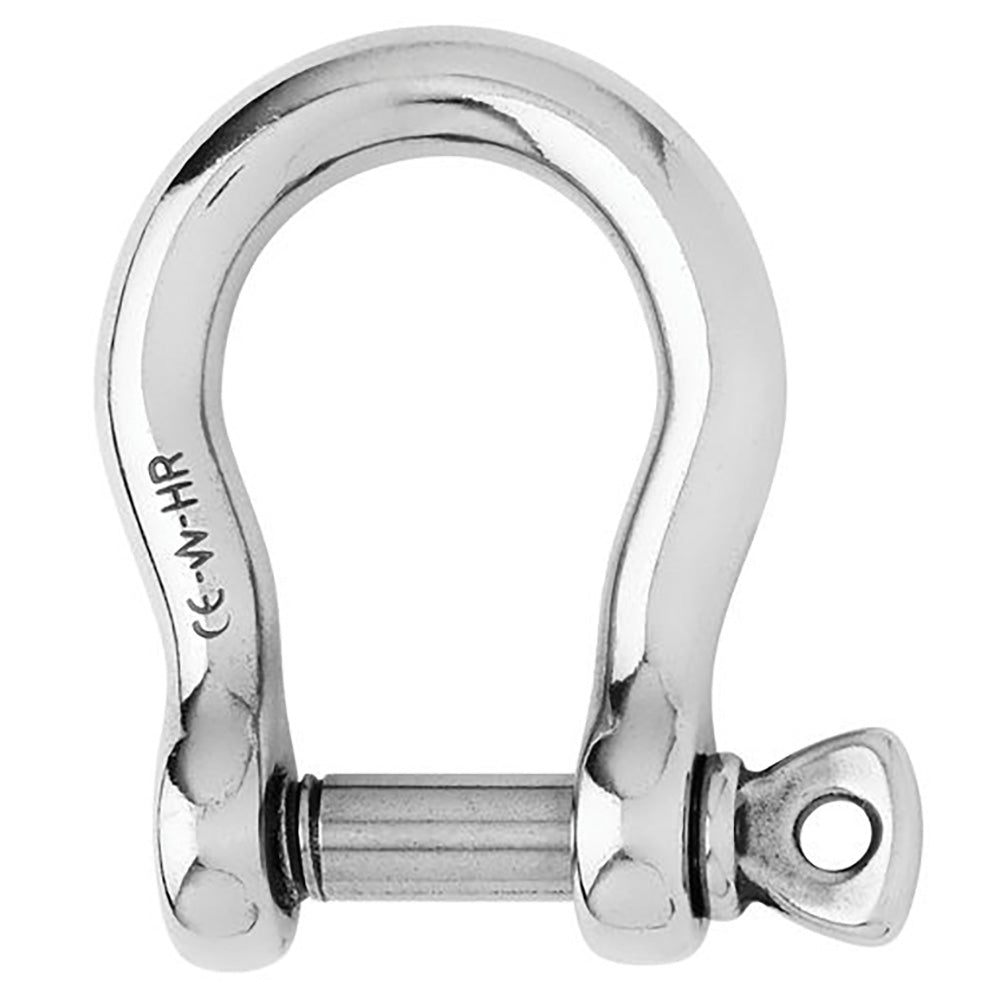

Wichard HR Bow Shackle, 14mm Diameter, 11240W
Wichard HR Bow Shackle, 14mm Diameter, 11240W
Sold out
About this product
This Wichard HR Bow Shackle is a high-resistance component engineered for nautical applications that require superior load-bearing performance. Forged from high-resistance 17.4 PH stainless steel, this shackle offers exceptional strength compared to standard 316L stainless steel hardware. Its bow design provides ample space for attaching multiple lines or cables.
Key Features and Specifications:
- Material: HR 17.4 PH stainless steel
- Diameter: 14mm (35/64 in.)
- Working Load (nautical): 11,280 lbs. (5,120 kg)
- Working Load Limit (industrial): 5,290 lbs. (2,400 kg)
- Breaking Load: 26,450 lbs. (12,000 kg)
- Weight: 0.802 lbs. (364 g)
- Includes CE marking and batch number

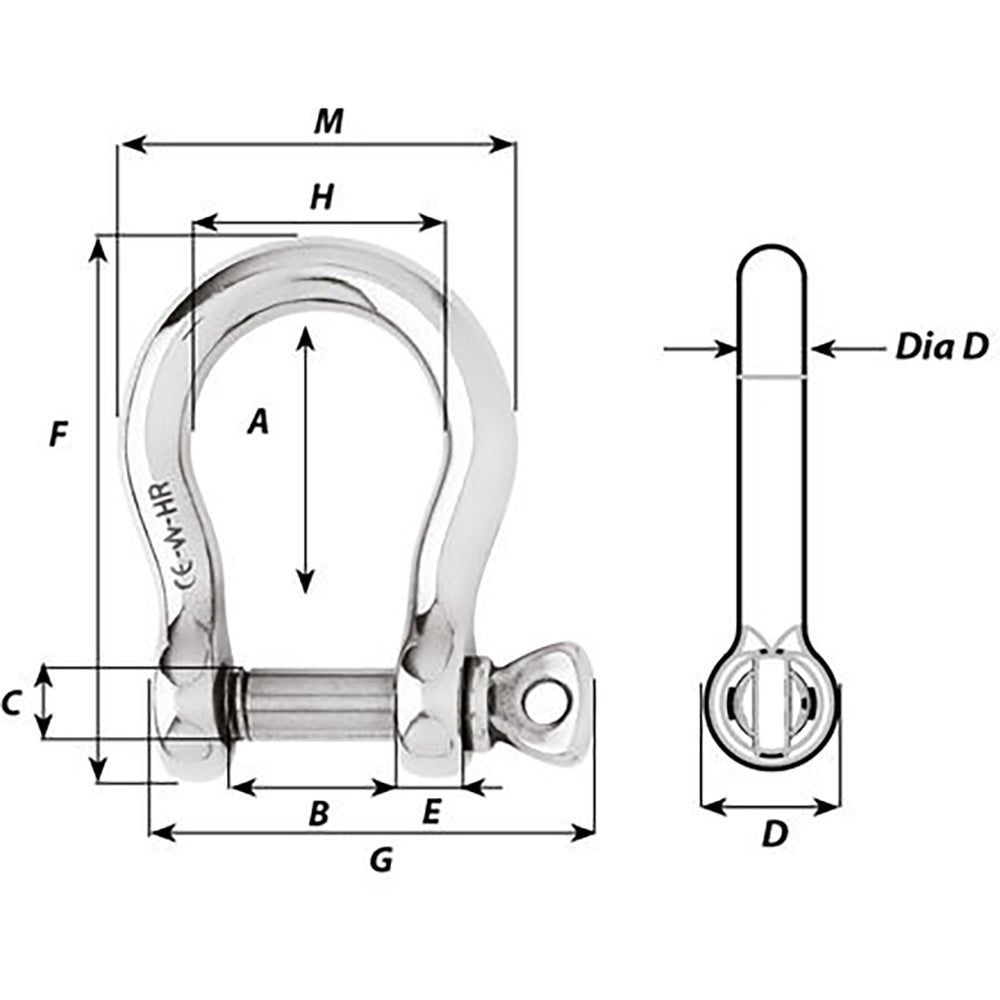

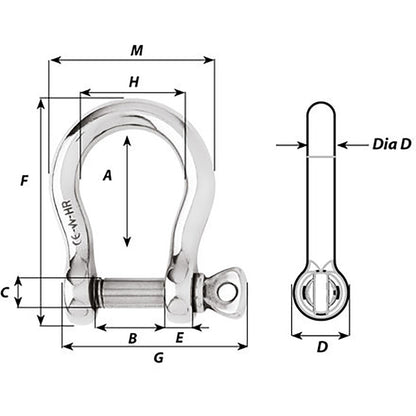

Dimensions:
- A: 2 31/64 in. (63 mm)
- B: 1 7/64 in. (28 mm)
- C: 35/64 in. (14 mm)
- D: 1 7/64 in. (28 mm)
- E: 33/64 in. (13 mm)
- M: 2 53/64 in. (72 mm)
Note: This product is sold as an individual unit. Do not use for mooring applications.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-119967
- Model / MPN
- 11240W
- UPC / GTIN
- 3587790112405
- Package dimensions (H × W × L)
- 1" X 3" X 6"
- Package weight
- 0.81 lb
Specifications
- Type
- Wichard HR Bow Shackle - 14mm Diameter - 35/64"
