Brand: Wichard Marine

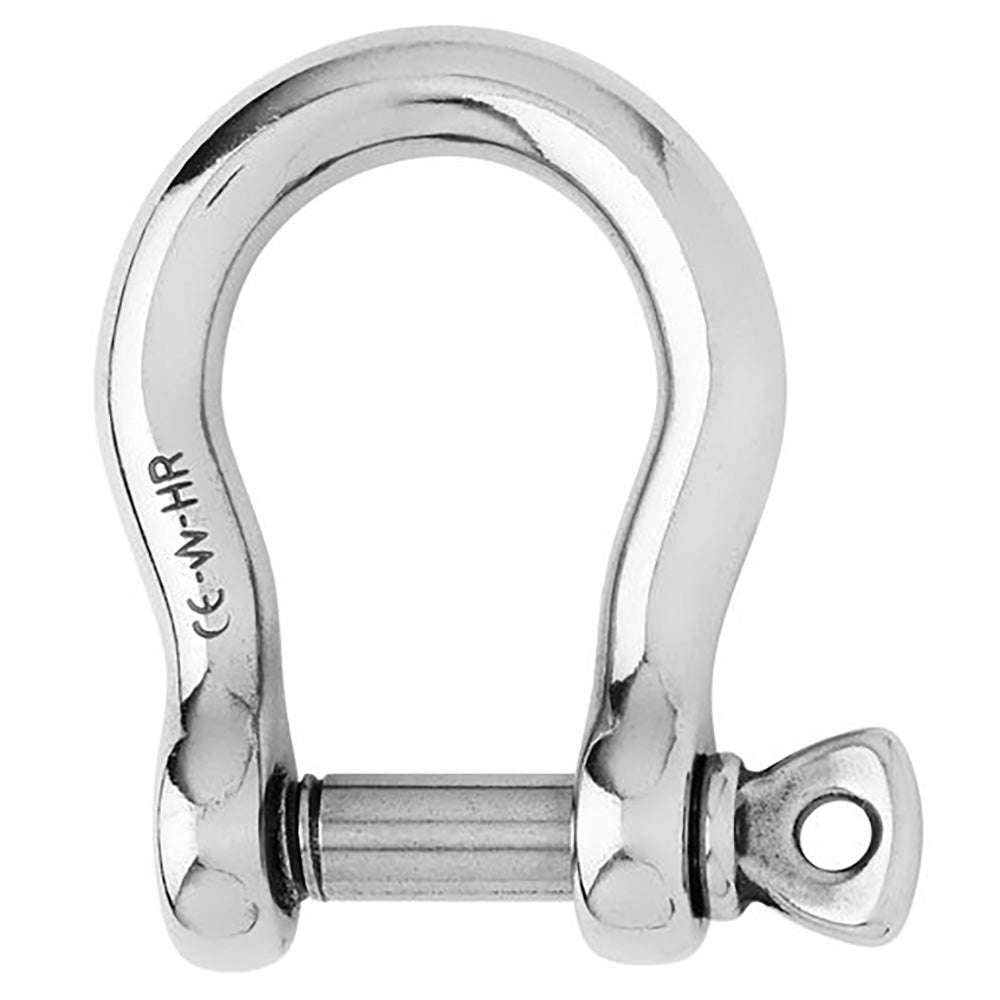

Wichard HR Bow Shackle, 20mm (25/32 in.)
Wichard HR Bow Shackle, 20mm (25/32 in.)
Sold out
About this product
This Wichard HR Bow Shackle is forged from 17.4 PH grade high-resistance stainless steel, providing superior working and breaking loads compared to standard 316L stainless steel shackles. It is designed for high-load applications requiring ample clearance and the ability to attach multiple lines or cables.
- Material: HR 17.4 PH stainless steel
- Diameter: 20mm (25/32 in.)
- Breaking load: 61,720 lbs (28,000 kg)
- Working load (nautical): 19,400 lbs (8,800 kg)
- Working Load Limit (WLL, industrial): 12,340 lbs (5,600 kg)
- Weight: 2.229 lbs (1.011 kg)

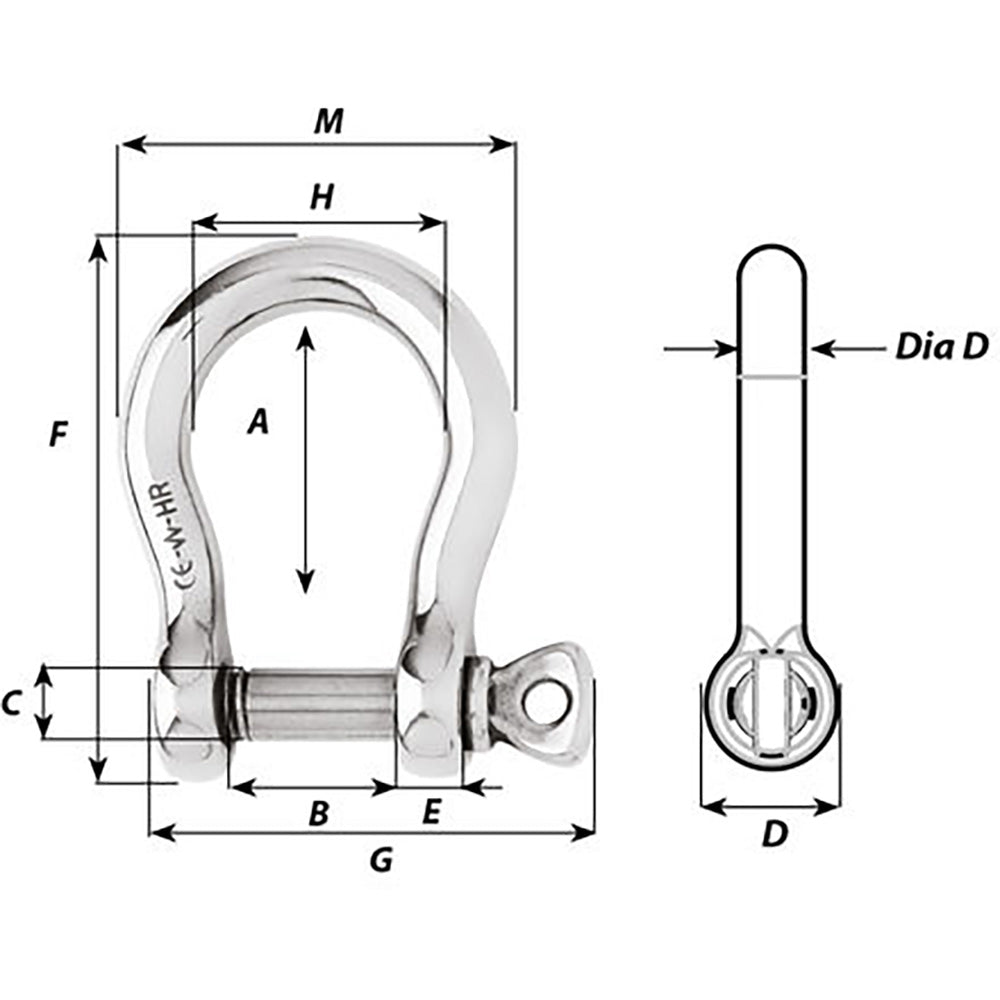

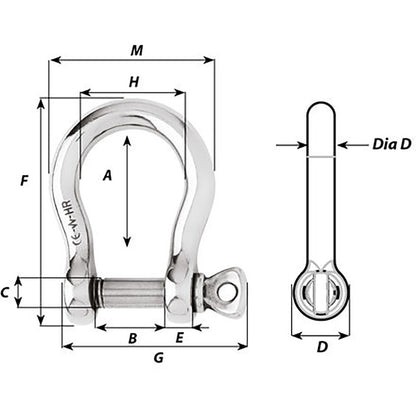

- Dimensions (mm): A=80, B=40, C=20, D=40, E=18, M=100
- CE marked
Sold as an individual unit. Please note that the Working Load Limit (WLL) is strictly for industrial lifting applications with a safety factor of 5. This shackle should not be used for mooring applications.
