Brand: Wichard Marine
Wichard HR Bow Shackle, 24mm (15/16 in.), 11249W
Wichard HR Bow Shackle, 24mm (15/16 in.), 11249W
2 available
About this product
This Wichard HR (High Resistance) Bow Shackle is forged from 17.4 PH stainless steel, offering exceptional strength-to-weight performance. Designed for applications requiring high loads and ample clearance, it allows for the attachment of multiple lines or cables. It features CE marking and is sold as an individual unit.
Key Specifications:
- Material: 17.4 PH stainless steel
- Diameter: 24mm (15/16 in.)
- Working Load (Nautical): 28,210 lbs (12,800 kg)
- WLL (Industrial): 15,430 lbs (7,000 kg)
- Breaking Load: 77,160 lbs (35,000 kg)
- Weight: 3.761 lbs (1.706 kg)

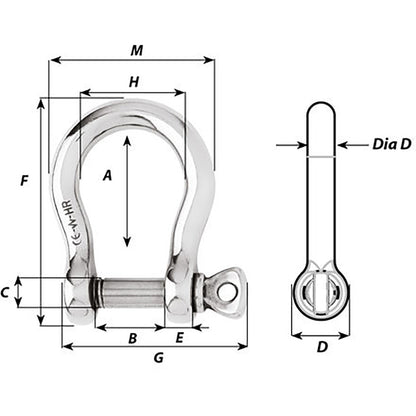

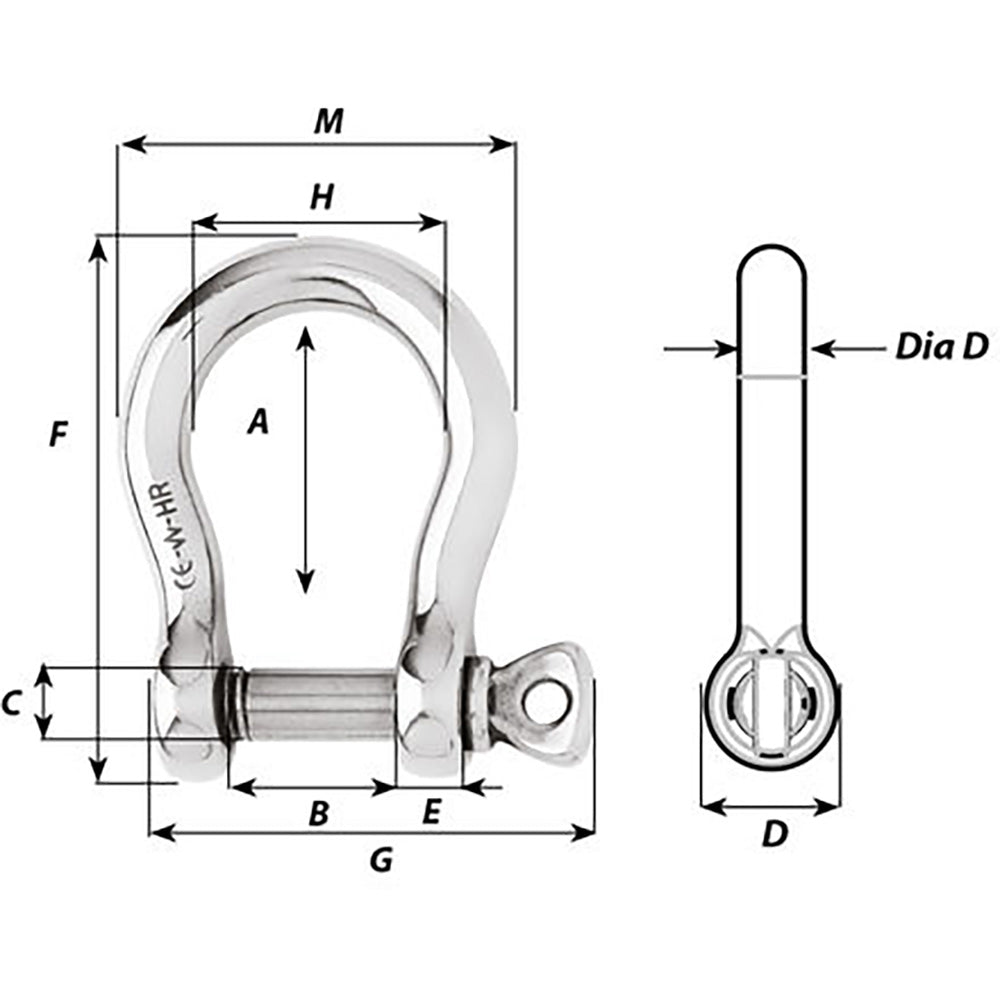

- Dimensions (mm): A: 108, B: 48, C: 24, D: 47, E: 20, M: 118
Notes: Industrial WLL ratings are for lifting applications only with a safety factor of 5. Do not use this product for mooring applications.
