Brand: Wichard Marine
Wichard HR D Shackle - 20mm Diameter
Wichard HR D Shackle - 20mm Diameter
Last one
About this product

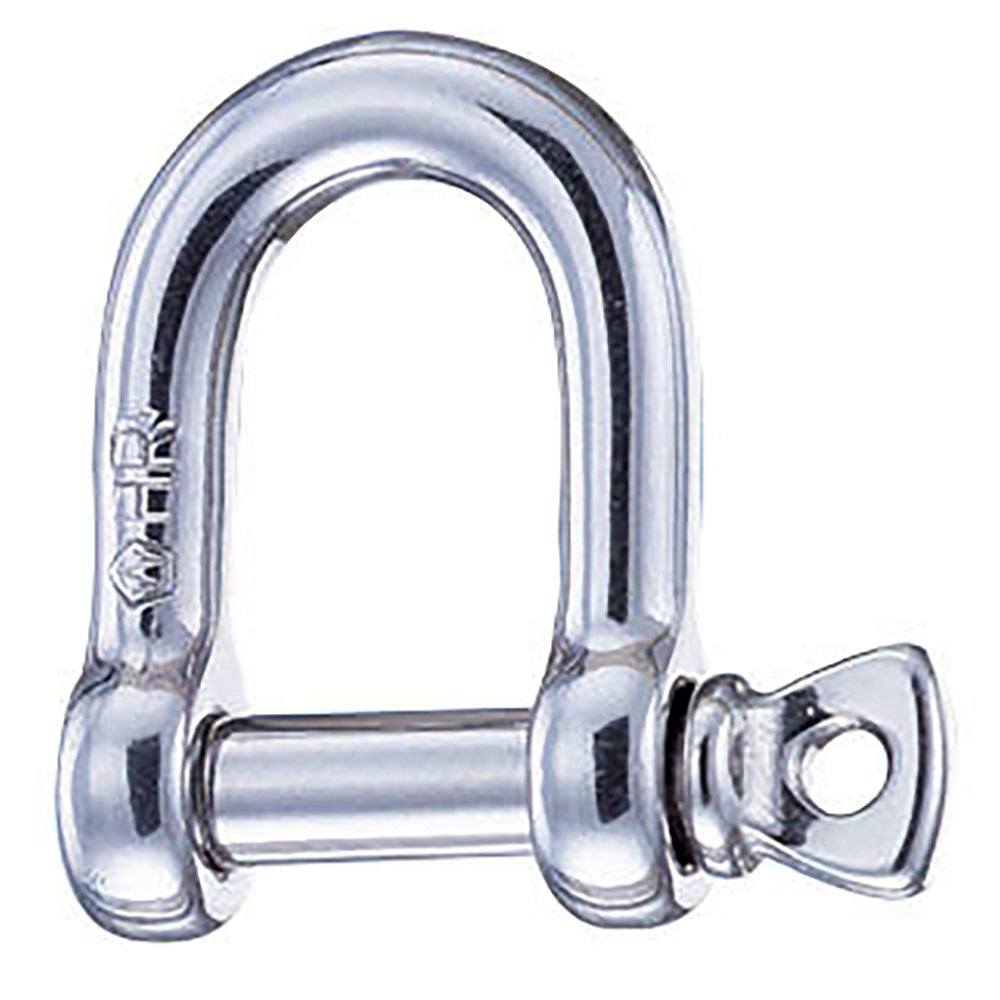

This Wichard High Resistance (HR) D-shackle features a 20mm (25/32 in.) diameter and is forged from 17.4 PH stainless steel for superior strength. Designed for applications requiring high loads, this shackle provides exceptional working and breaking loads, offering up to 60% higher resistance than standard 316L stainless steel shackles.
Key Specifications:
- Material: HR 17.4 PH stainless steel
- Diameter: 20mm (25/32 in.)
- Working Load (Nautical): 19,400 lb (8,800 kg)
- Working Load Limit (Industrial): 12,340 lb (5,600 kg)
- Breaking Load: 61,720 lb (28,000 kg)
- Weight: 1.896 lb (860 g)

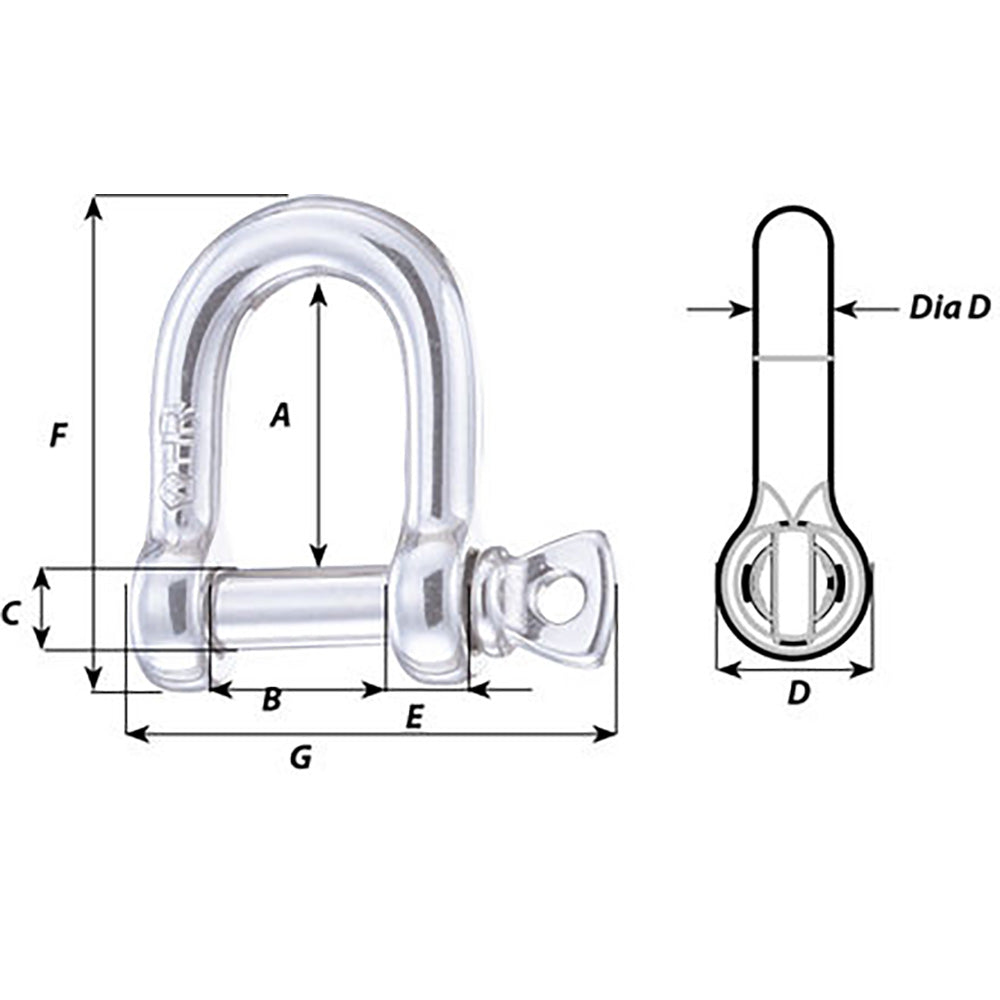

- Dimensions (A): 70mm (2 3/4 in.)
- Dimensions (B): 40mm (1 37/64 in.)
- Manufacturer Part Number: 11209W
Application and Usage Notes:
- Suitable for general attachment applications, such as blocks or heads.
- Do not use this product for mooring applications.
- Sold as an individual unit.
- Includes CE marking.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-119956
- Model / MPN
- 11209W
- Package dimensions (H × W × L)
- 2" X 5" X 5"
- Package weight
- 2.05 lb
Specifications
- Type
- Wichard HR D Shackle - 20mm Diameter - 25/32"
