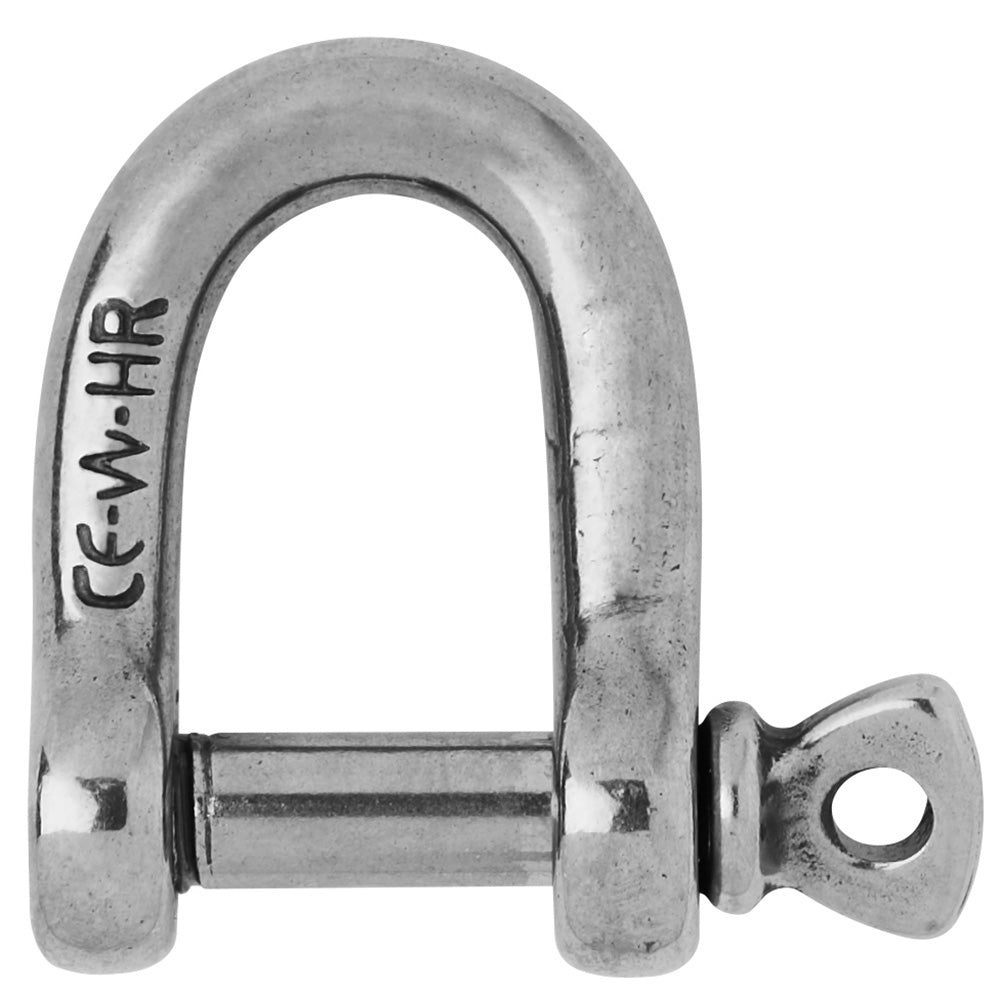

Wichard HR D Shackle, 15/64" Pin Diameter – Forged 17.4 PH Stainless Steel

Wichard HR D Shackle, 15/64" Pin Diameter – Forged 17.4 PH Stainless Steel

SKUCT-111087

$76.18
$76.18
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Engineered for extreme strength and reliability, the Wichard HR D Shackle is meticulously forged from high-resistance (HR) 17.4 PH stainless steel. This advanced material provides up to 60% greater resistance than standard 316L stainless steel, making it ideal for the most demanding high-load industrial applications and ocean racing. Proudly designed and made in France, this shackle is CE marked, affirming its compliance for industrial lifting. Upgrade your rigging with Wichard's renowned performance and secure connections today.

Key Features & Benefits:
  • Forged High-Resistance (HR) 17.4 PH Stainless Steel: Delivers exceptional strength and superior corrosion resistance, outperforming 316L stainless steel by up to 60%.
  • Impressive Working Load (WL): Rated for a 2290 lb (10.1 kN) working load, ensuring secure handling of substantial static forces.
  • High Breaking Load: Boasts a 5070 lb (22.5 kN) breaking load, providing a significant safety margin for critical applications.
  • Precise 15/64" (approx. 6mm) Pin Diameter: Ensures robust and secure attachment points for various rigging and lifting components.
  • CE Marked: Complies with the Machines Directive 2006/42, certifying its suitability for industrial lifting accessories.
  • Loose Pin Design: Allows full access to the shackle opening, offering versatile and easy attachment options.
Usage Guidelines:
  • Not recommended for prolonged submersion.
  • Not suitable for permanent mooring applications.
