Brand: Wichard Marine

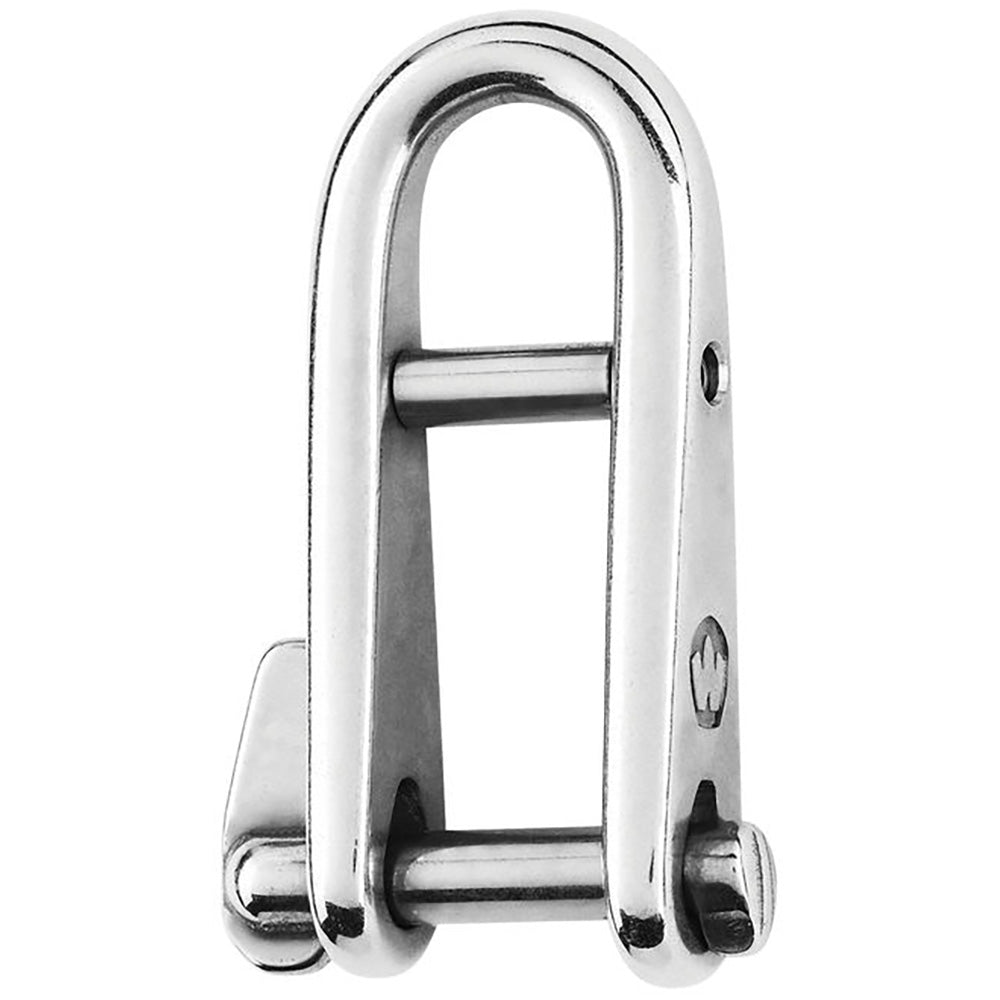

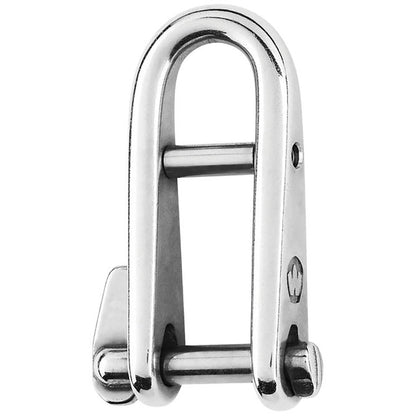

Wichard HR Key Pin Shackle With Bar, 5mm Pin Diameter (91432W)
Wichard HR Key Pin Shackle With Bar, 5mm Pin Diameter (91432W)
2 available
About this product
This Wichard HR Key Pin Shackle is forged from high-resistance 17.4 PH stainless steel, offering exceptional strength compared to standard 316L stainless steel hardware. Designed for frequent opening and closing, this shackle with bar is suitable for high-load applications like halyards.
- Pin diameter: 5 mm (approx. 13/64 in.)
- Material: HR 17.4 PH stainless steel
- Breaking load: 3,300 lbs (1,500 kg)
- Working load (nautical): 1,050 lbs (480 kg)
- Weight: 0.068 lbs (31 g)
- CE marked
- Includes bar for added security
Usage Notes: This item is intended for high-load nautical applications and should not be used for mooring. When used for industrial lifting applications, the working load limit (WLL) is calculated with a safety factor of 5 times the breaking load.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-115928
- Model / MPN
- 91432W
- UPC / GTIN
- 768536028522
- Package dimensions (H × W × L)
- 1" X 2" X 6"
- Package weight
- 0.08 lb
Specifications
- Type
- Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter
