Brand: Wichard Marine
Wichard HR Key Pin Shackle With Bar, 6mm Pin Diameter (91433W)
Wichard HR Key Pin Shackle With Bar, 6mm Pin Diameter (91433W)
6 available
About this product
This Wichard HR (High Resistance) key pin shackle is forged from 17.4 PH stainless steel, offering significant strength advantages over standard 316L stainless steel hardware. The inclusion of a captive bar makes it an ideal choice for applications involving frequent adjustment, such as halyard management.
- Pin diameter: 6mm
- Material: HR 17.4 PH stainless steel
- Working load (nautical): 1320 lbs / 600 kg
- Breaking load: 4850 lbs / 600 kg
- Weight: 0.117 lbs / 53 g
- CE marked

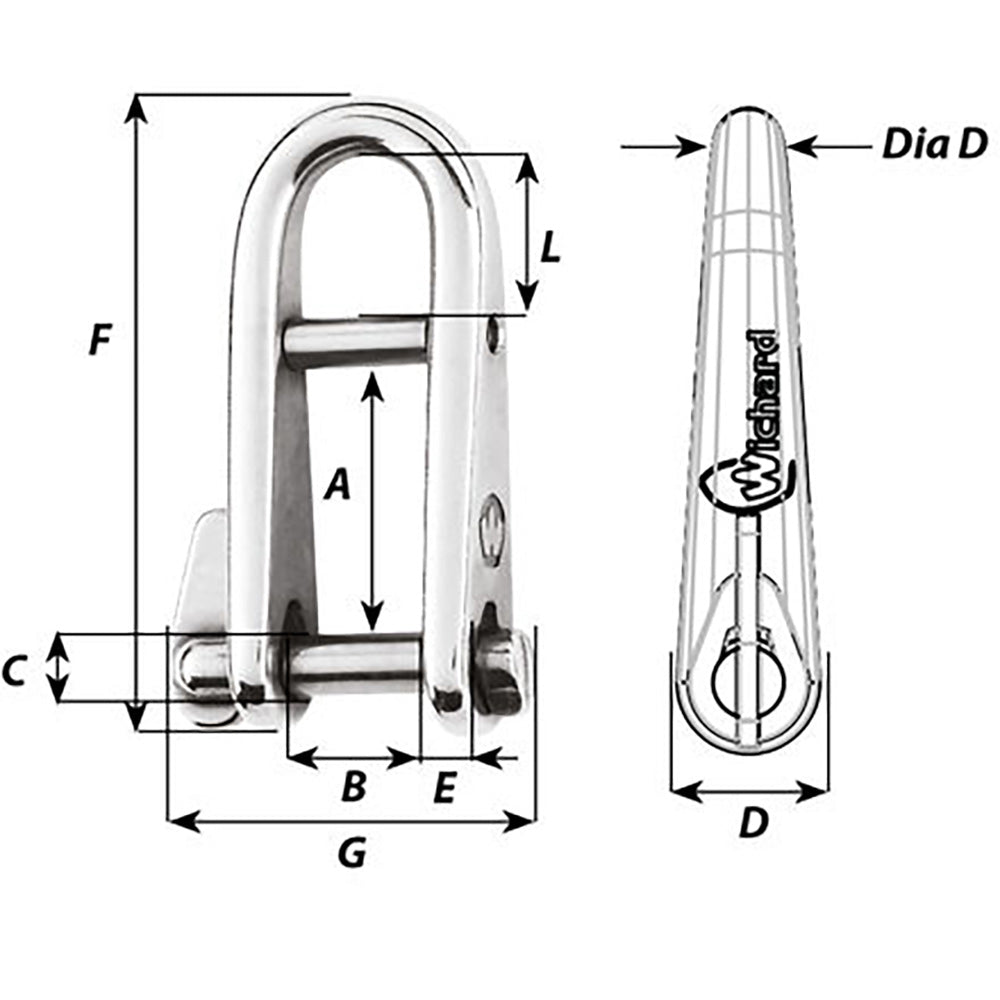

Dimensions:
- A: 1 49/64 in. (45 mm)
- B: 5/8 in. (16 mm)
- C: 15/64 in. (6 mm)
- D: 33/64 in. (13 mm)
- E: 5/32 in. (4 mm)
- F: 2 23/64 in. (60 mm)
- G: 1 29/64 in. (37 mm)
- L: 19/32 in. (15 mm)
Notes:
Sold as an individual unit. Not for use in mooring applications. WLL for industrial lifting applications is calculated at 1/5 of the breaking load.
