Brand: Wichard Marine

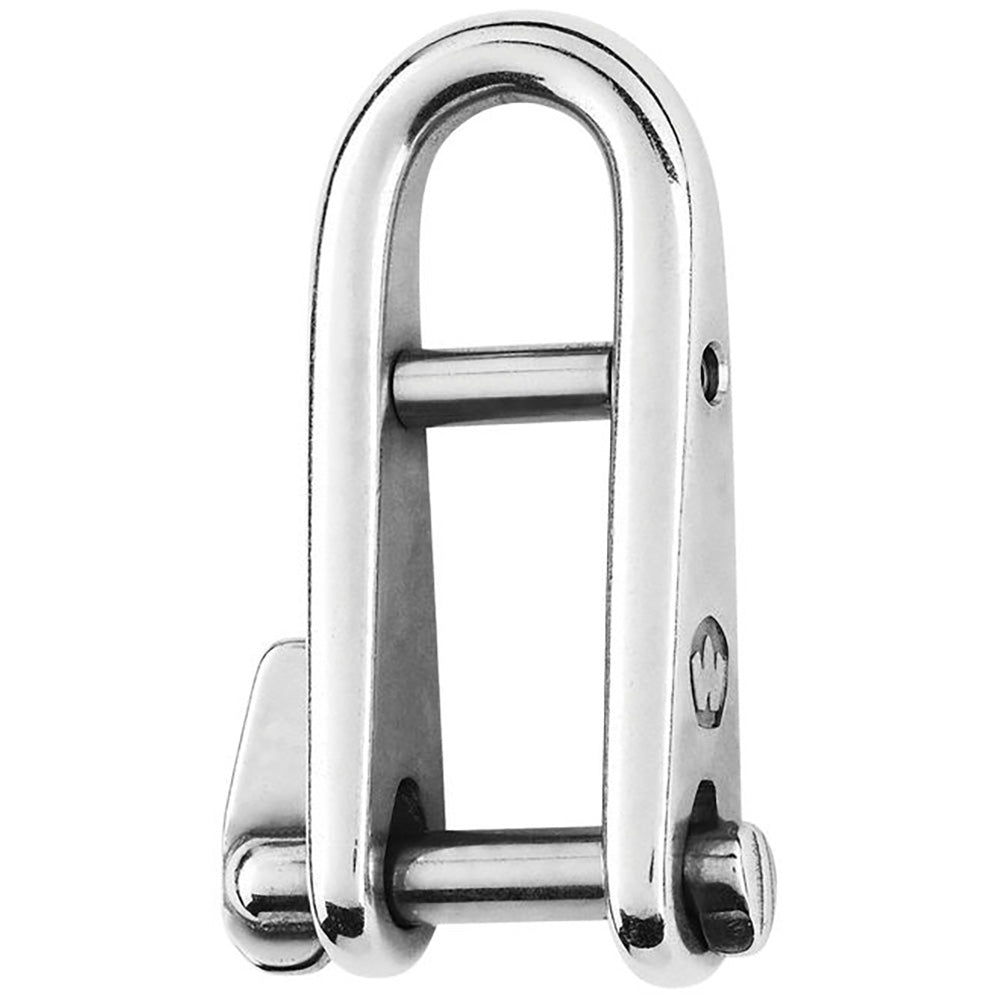

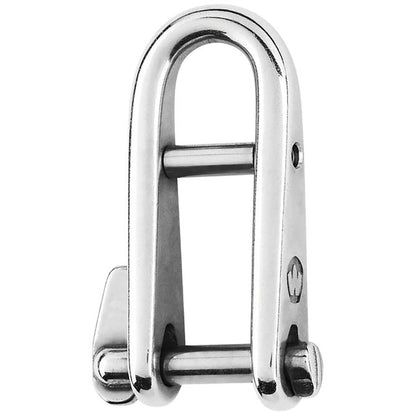

Wichard HR Key Pin Shackle with Bar, 8mm
Wichard HR Key Pin Shackle with Bar, 8mm
3 available
About this product
The Wichard HR Key Pin Shackle with Bar features a forged 17.4 PH stainless steel construction, offering exceptional strength and durability for high-load nautical applications. Designed for reliability, this shackle provides up to 60% higher resistance than standard 316L stainless steel hardware. It is ideal for halyards and applications requiring frequent opening and closing.
Key Features:
- Forged in HR 17.4 PH stainless steel for outstanding load capacity
- Key pin design for frequent operation
- CE marked
- Working load (nautical): 2110 lbs (960 kg)
- Breaking load: 7710 lbs (3500 kg)
- Pin diameter: 8 mm (5/16 in.)
- Weight: 0.271 lbs (123 g)
Note: This product is not intended for mooring applications. Working Load Limit (WLL) refers to industrial lifting applications only, with a safety factor of 5 times the breaking load. Sold as an individual unit.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-120040
- Model / MPN
- 91434W
- Package weight
- 0.25 lb
Specifications
- Type
- Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter
