Brand: Wichard Marine

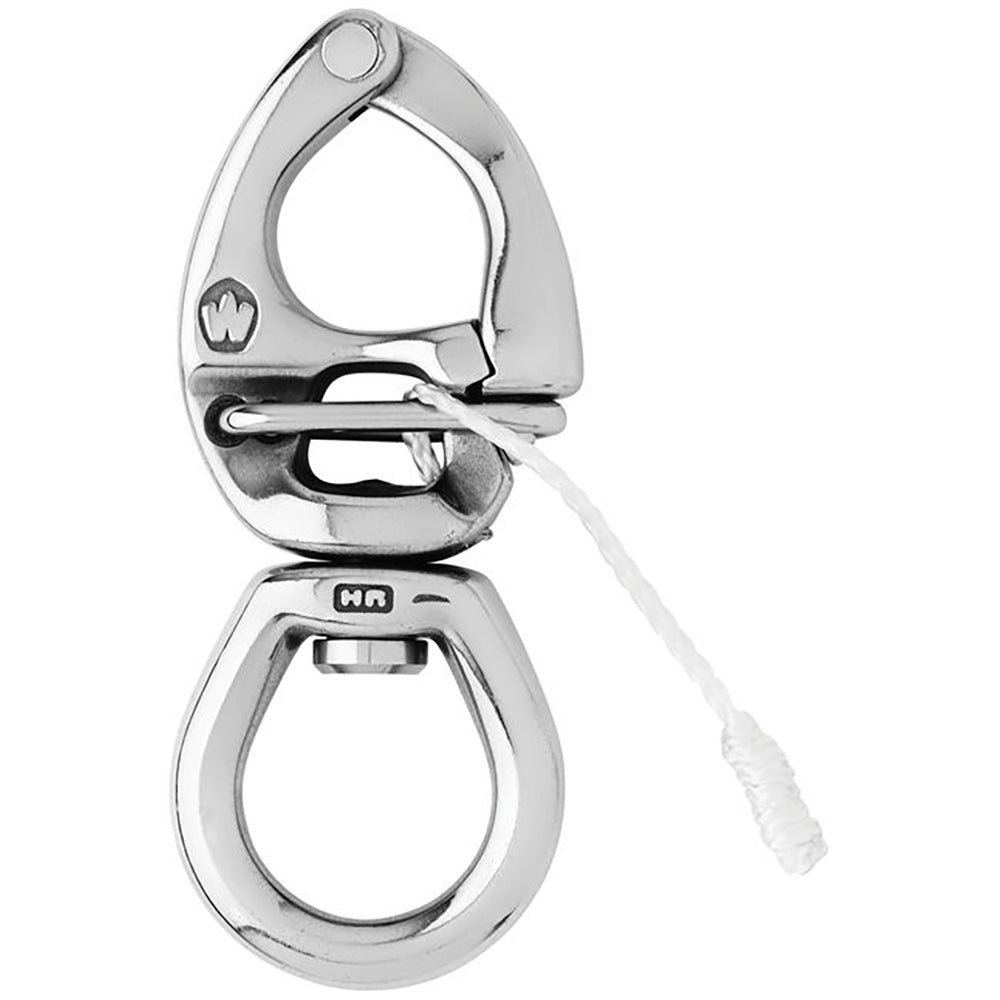

Wichard HR Quick Release Snap Shackle with Large Bail, 145mm
Wichard HR Quick Release Snap Shackle with Large Bail, 145mm
4 available
The Wichard HR Quick Release Snap Shackle is designed for demanding sailing applications, including spinnaker operations. Crafted from HR 17.4 PH stainless steel, this shackle provides high working and breaking loads and features a swivel for free rotation. The large bail is well-suited for attaching multiple lines, such as spinnaker sheets, and the shackle can be opened quickly by pulling the attached lanyard.
Product Specifications:
- Model number: 2777W
- Material: HR 17.4 PH stainless steel
- Overall length: 5 45/64 in. (145 mm)
- Working load: 6,170 lb (2,800 kg)
- Breaking load: 13,880 lb (6,300 kg)
- Weight: 0.873 lb (396 g)

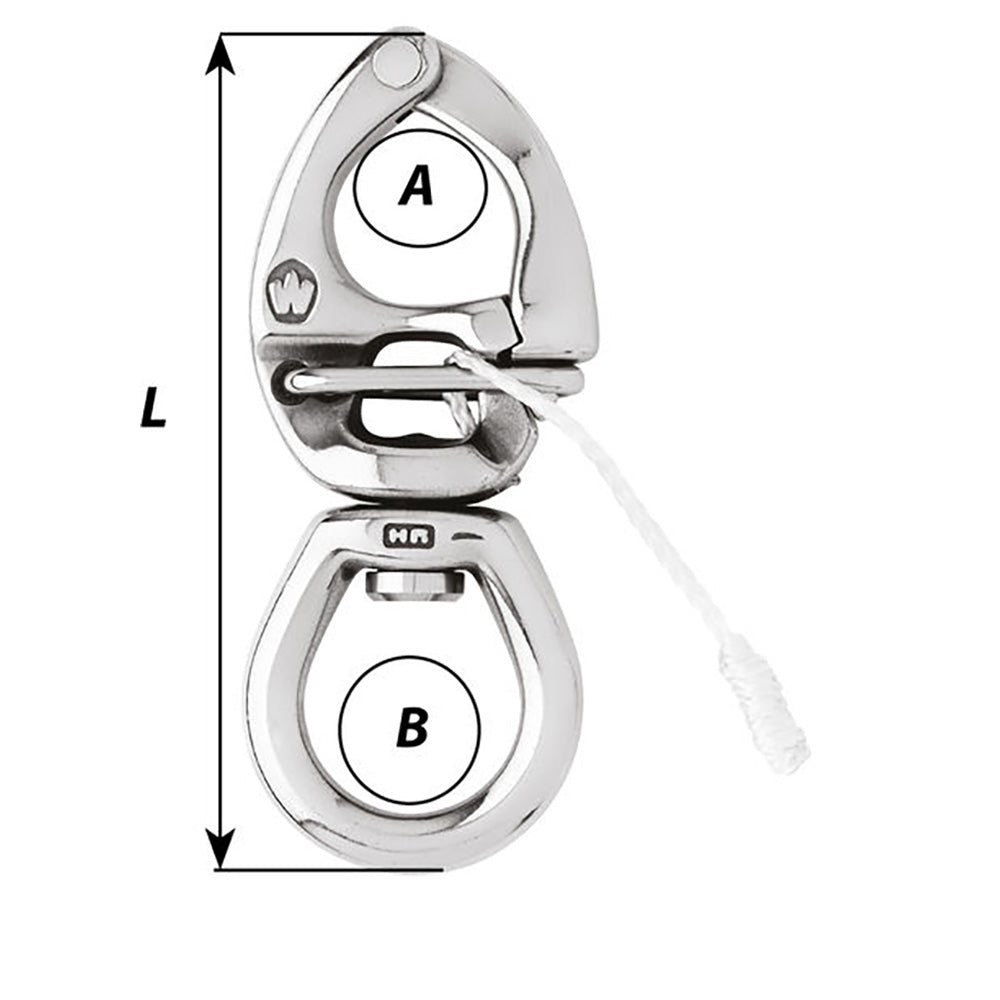

- Dimensions A: 1 3/16 in. (30 mm)
- Dimensions B: 1 25/64 in. (35.5 mm)
- Included: Sold as an individual unit
Usage Note: For industrial applications, the Working Load Limit is calculated as the breaking load divided by 5.
Product facts
- CT SKU
- CT-117401
- Package weight
- 0.9 lb
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
