Brand: Wichard Marine
Wichard HR Quick Release Snap Shackle with Large Bail, 90mm
Wichard HR Quick Release Snap Shackle with Large Bail, 90mm
Last one

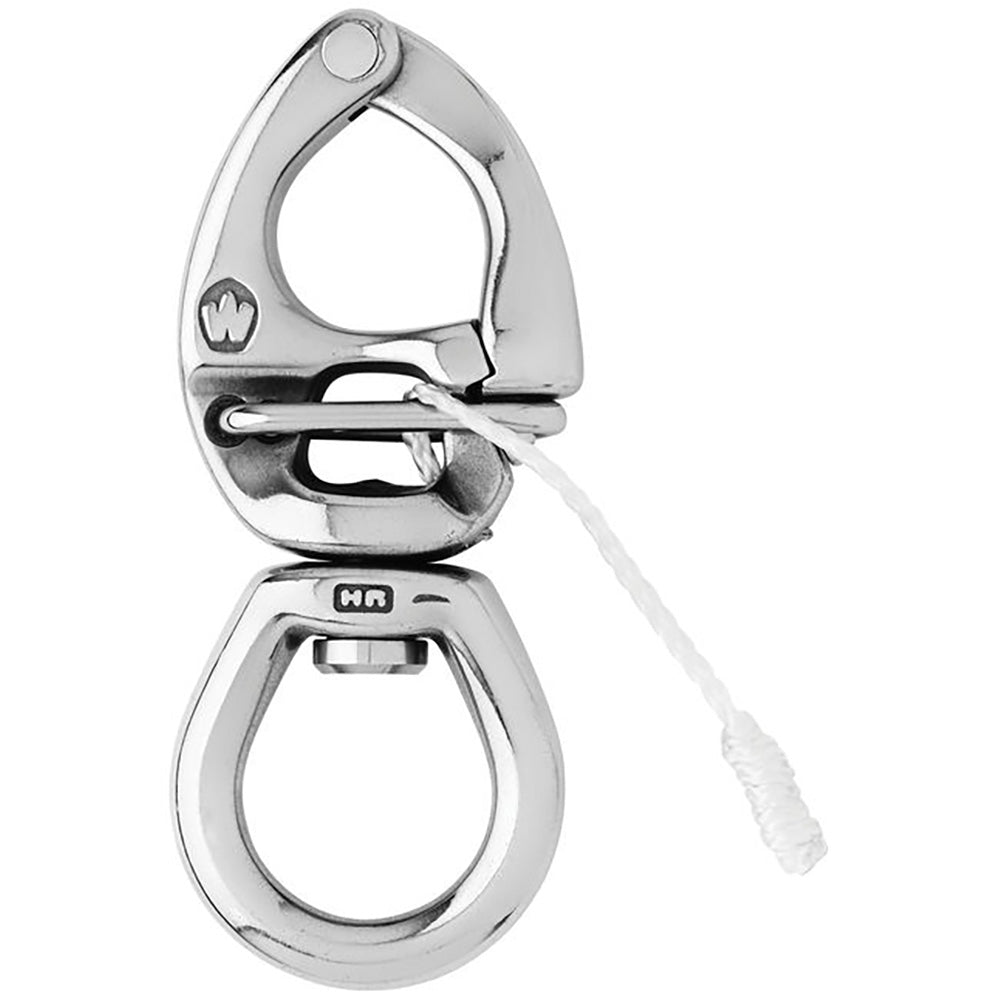

This Wichard HR quick-release snap shackle features a large bail, making it an efficient choice for attaching multiple lines, such as spinnaker sheets. Forged from high-resistance 17.4 PH stainless steel, this shackle includes a swivel for free rotation and is operated by a simple lanyard pull.
- Length: 90mm (3-35/64 in.)
- Material: HR 17.4 PH stainless steel
- Working Load: 1,280 kg (2,820 lb)
- Breaking Load: 2,000 kg (4,400 lb)
- Weight: 100g (0.22 lb)

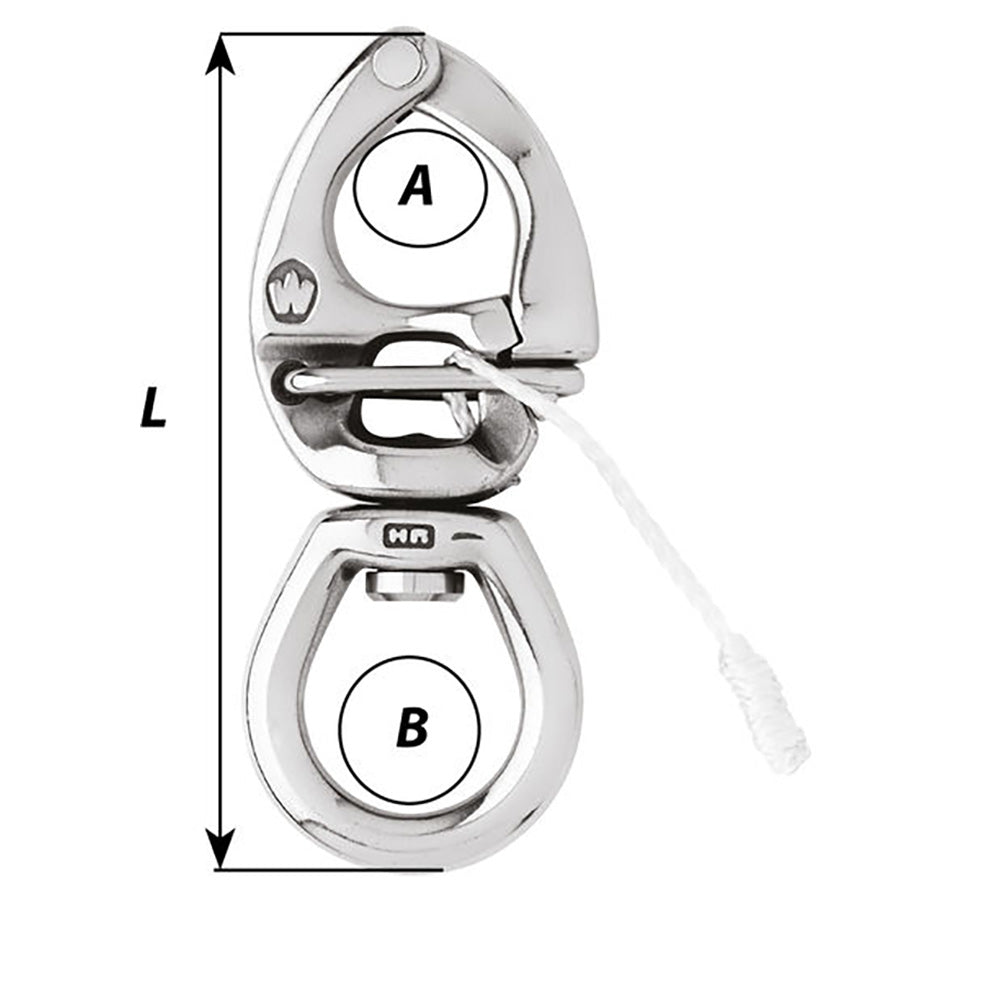

- Dimensions: A = 16mm (5/8 in.); B = 23mm (29/32 in.)
- Sold as an individual unit
Safety note: For industrial applications, the Working Load Limit (WLL) is calculated as the breaking load divided by 5.
Product facts
- CT SKU
- CT-115767
- Model / MPN
- 02774
- UPC / GTIN
- 3587790027747
- Package dimensions
- 1" X 2" X 6"
- Package weight
- 0.25 lb
