Brand: Wichard Marine
Wichard HR Snap Shackle with Clevis Pin Swivel, 120mm
Wichard HR Snap Shackle with Clevis Pin Swivel, 120mm
2 available

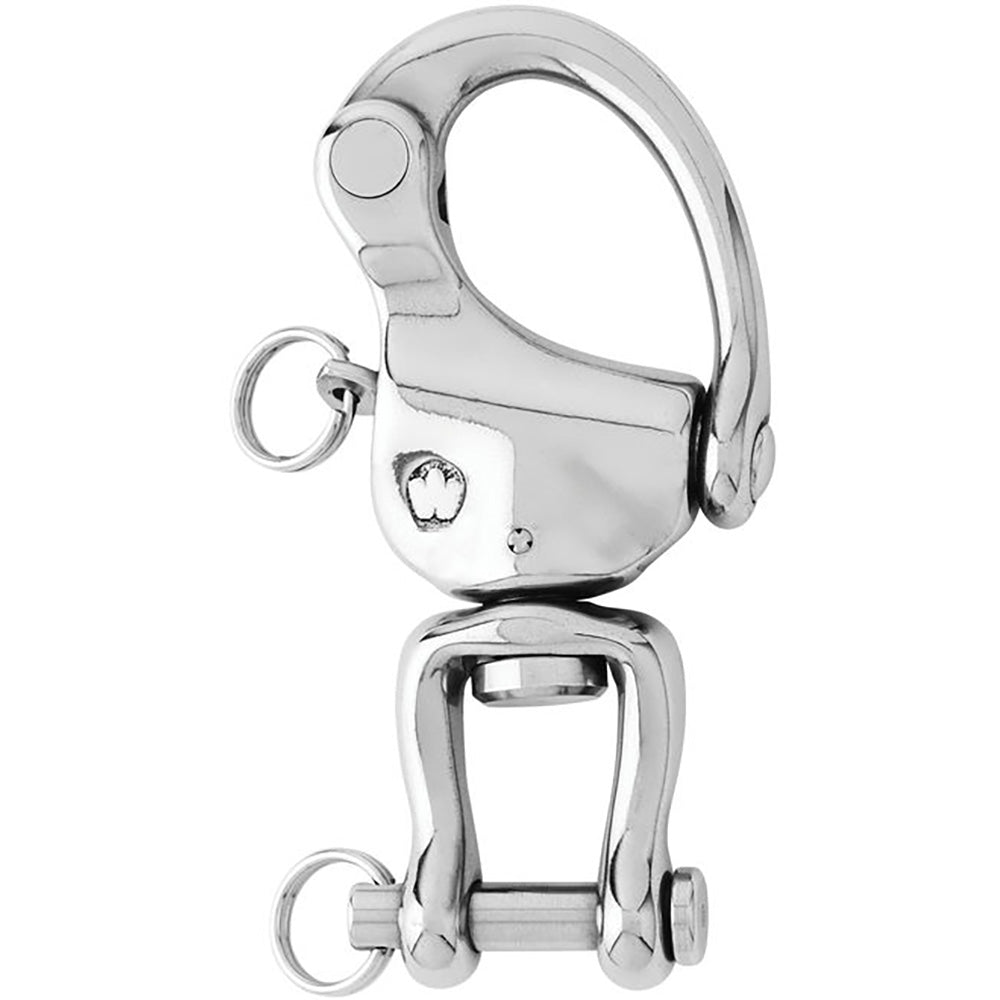

This Wichard HR snap shackle features a clevis pin swivel design, crafted from Grade 17.4 PH stainless steel for high-resistance marine applications. The swivel eye allows for free rotation, while the captive plunger pin ensures the mechanism remains intact during operation.
- Length: 120mm (4 23/32")
- Material: HR 17.4 PH stainless steel
- Working Load: 5,290 lbs (2,400 kg)
- Breaking Load: 15,430 lbs (7,000 kg)
- Weight: 0.919 lbs (417 g)
- Key Features: Captive plunger pin; swivel eye for free rotation; lanyard-compatible pull mechanism

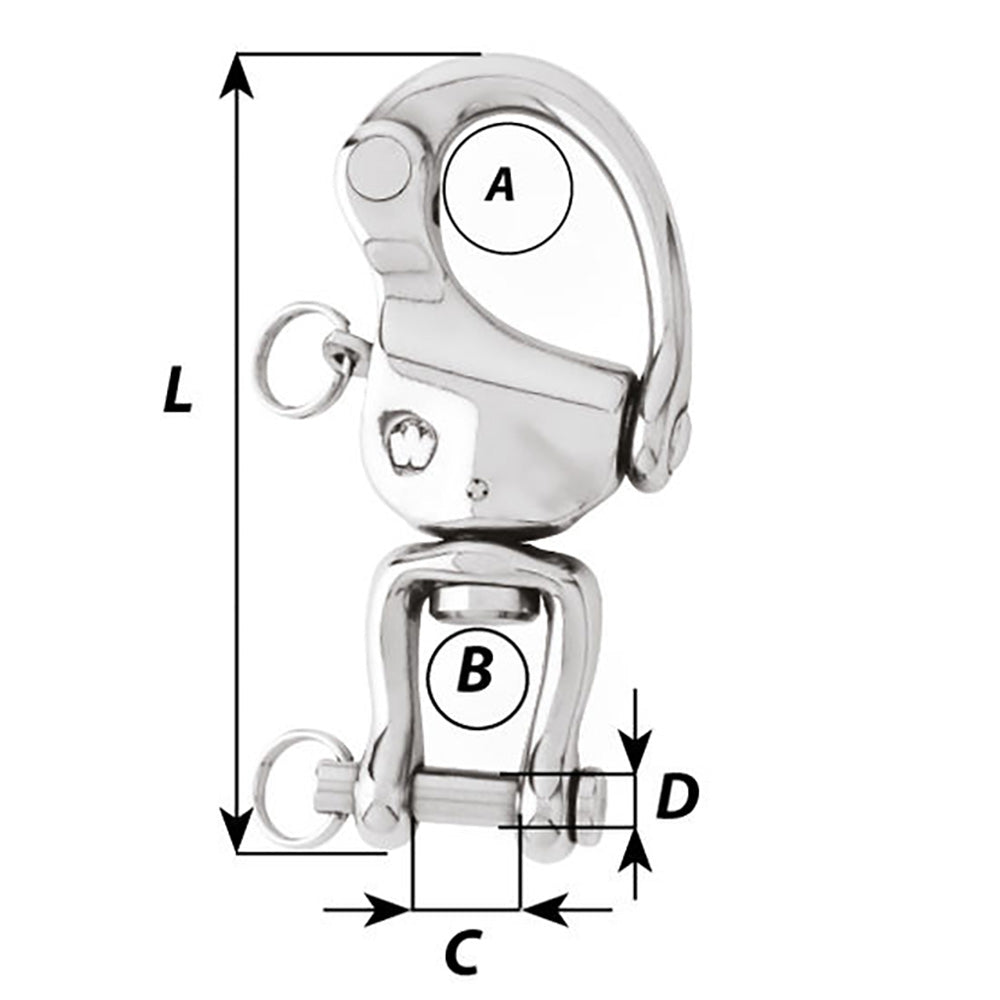

- Dimensions: A: 1 1/32" (26mm); B: 1 1/16" (27mm); C: 45/64" (18mm); D: 7/16" (11mm)
Sold as an individual unit. For industrial applications, the Working Load Limit is calculated as the breaking load divided by 5.
Product facts
- CT SKU
- CT-115828
- Model / MPN
- 02478
- UPC / GTIN
- 768536024784
- Package dimensions
- 1" X 3" X 6"
- Package weight
- 0.91 lb
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
