Brand: Wichard Marine
Wichard 5mm Key Pin Shackle, 3/16 inch
Wichard 5mm Key Pin Shackle, 3/16 inch
5 available
About this product

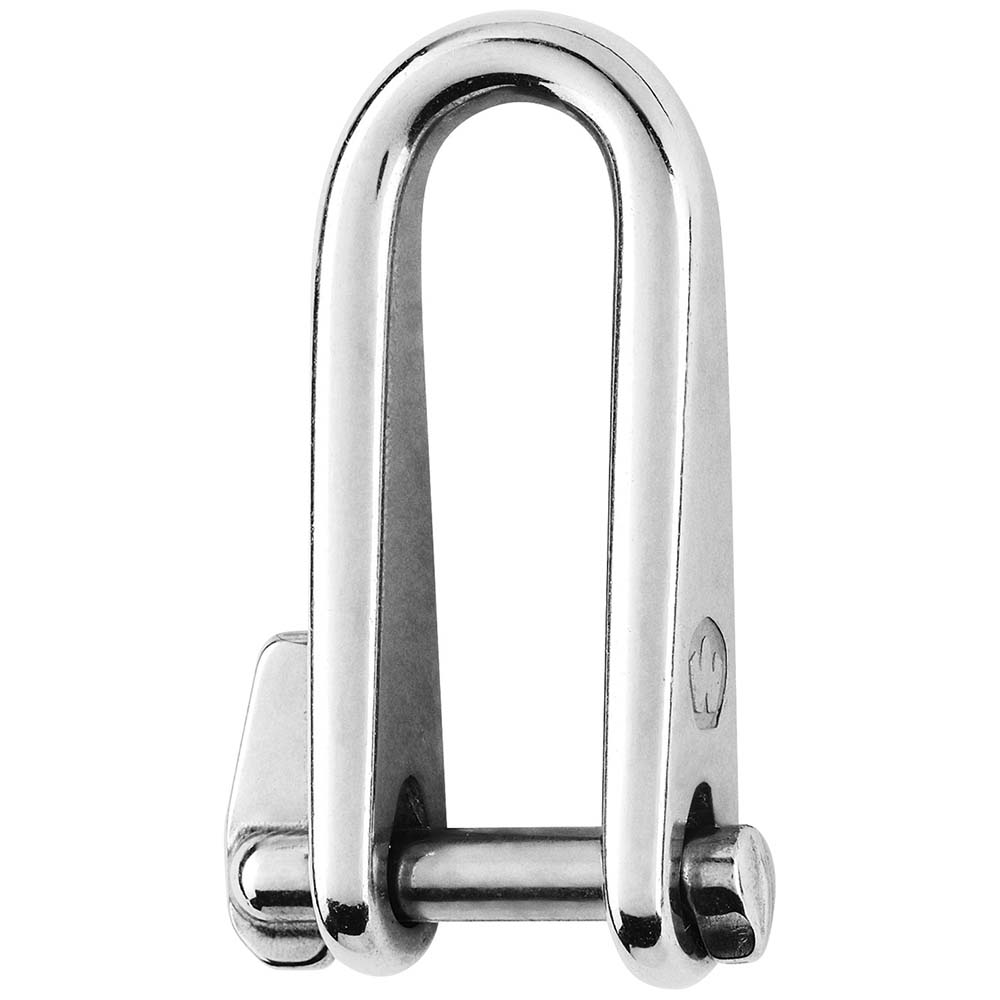

This Wichard Key Pin Shackle is a forged, high-strength connector designed for sailing applications requiring frequent adjustments. Engineered for efficiency, the pin can be opened or closed with a simple half-turn and remains attached to the shackle body to prevent loss during handling.
Key Features:
- Forged from grade 316L stainless steel for durability
- Captive pin design eliminates the risk of loss
- Ideal for halyards and applications requiring rapid opening and closing
- Working load: 880 lb
- Breaking load: 2200 lb
- Weight: 0.068 lb
- Manufacturer part number: 1432W

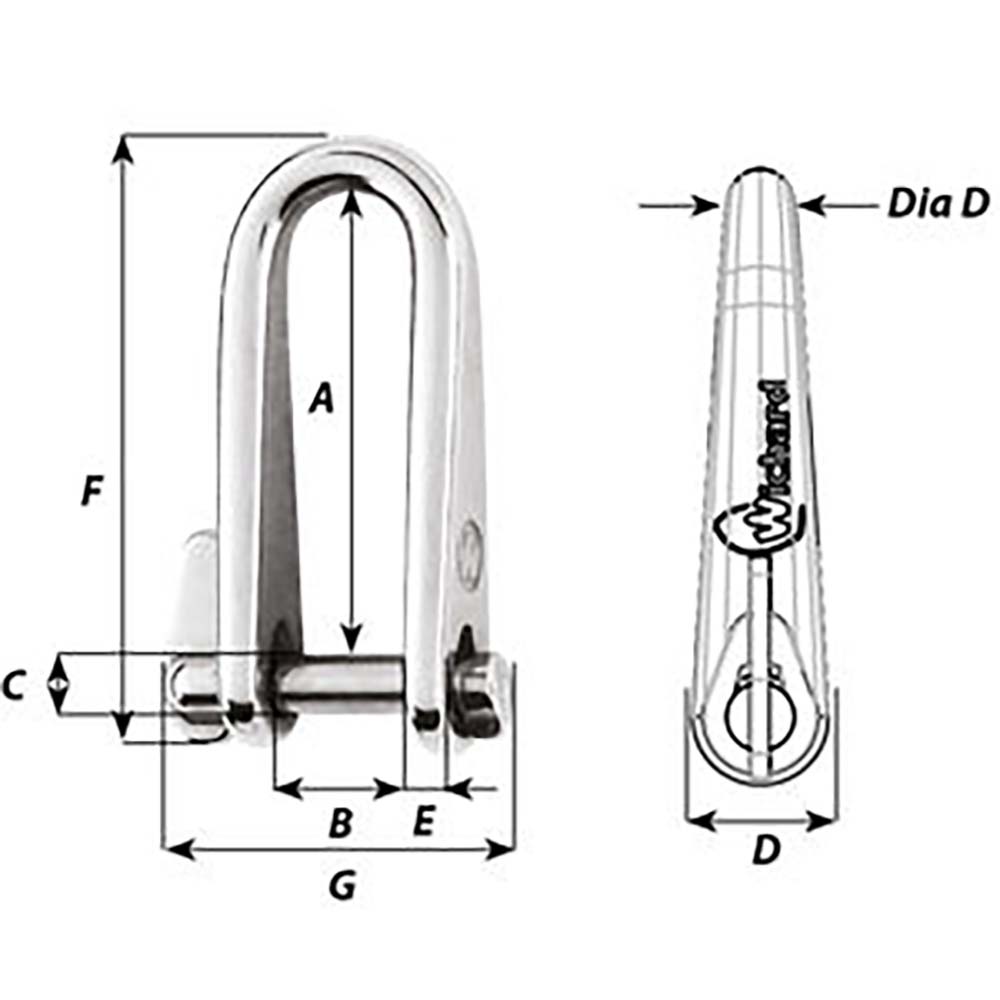

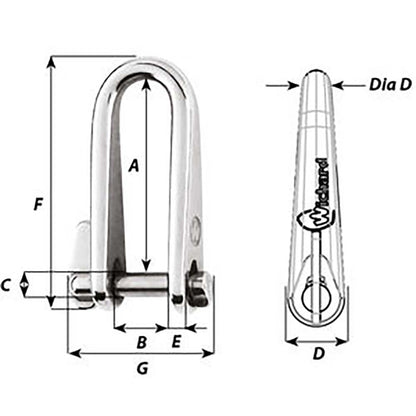

Dimensions:
- A: 1-29/64 in.
- B: 33/64 in.
- C: 13/64 in.
- D: 7/16 in.
- D diameter: 13/64 in.
- E: 5/32 in.
- F: 1-59/64 in.
- G: 1-7/32 in.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-110680
- Model / MPN
- 1432W
- UPC / GTIN
- 3587790014327
- Package dimensions (H × W × L)
- 1" X 3" X 6"
- Package weight
- 0.08 lb
Specifications
- Type
- Wichard Key Pin Shackle - Diameter 5mm - 3/16"
