• Wichard Marine Not Self-Locking D Shackle, 14mm (9/16 in.)
  • Wichard Marine Not Self-Locking D Shackle, 14mm (9/16 in.)
1 2

Brand: Wichard Marine

Wichard Marine Not Self-Locking D Shackle, 14mm (9/16 in.)

Wichard Marine Not Self-Locking D Shackle, 14mm (9/16 in.)

$191.54
$191.54
Sale Sold out
Shipping calculated at checkout.

4 available

About this product

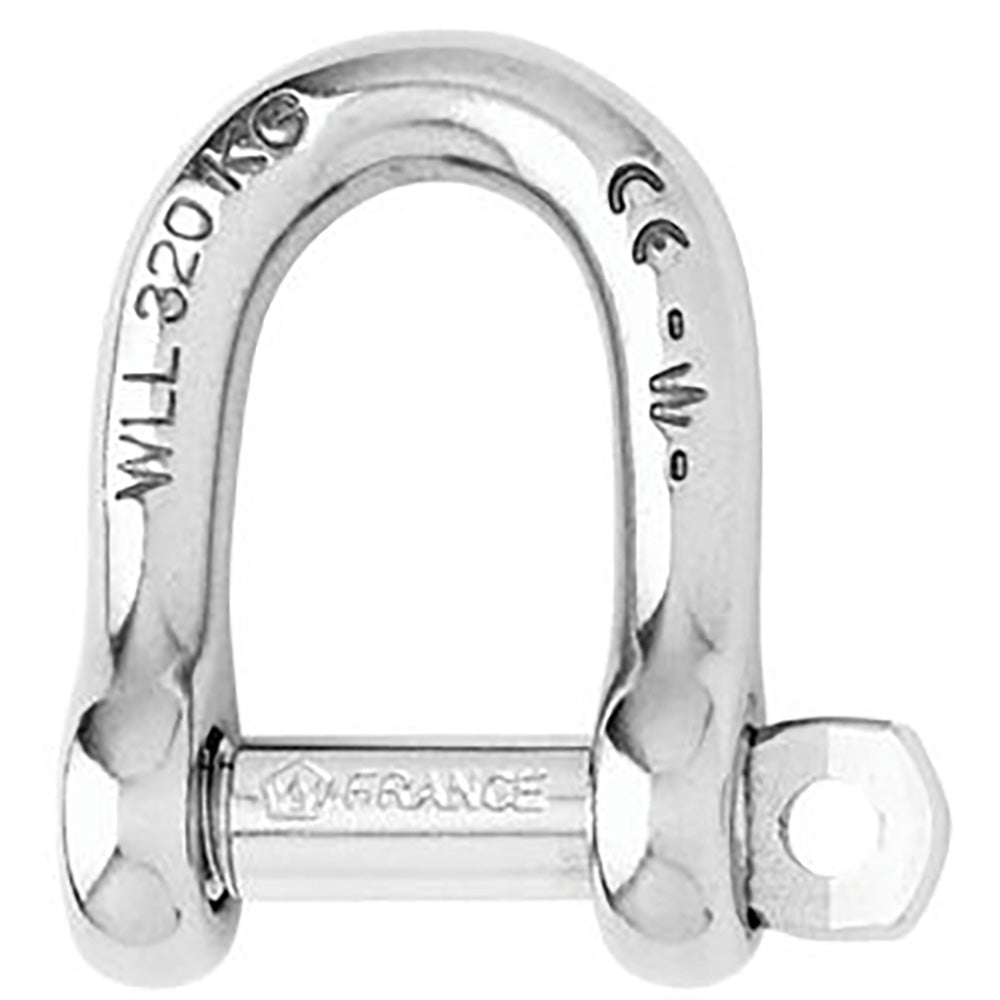

This Wichard D shackle is forged from 316L grade stainless steel, offering durability and high working loads for a variety of marine and industrial applications. The pin features a design that locks into indentations, preventing the shackle from loosening due to vibrations.

Key Specifications:

  • Diameter: 14mm (9/16 in.)
  • Breaking Load: 17,630 lb (8,000 kg)
  • Working Load (Nautical): 5,290 lb (2,400 kg)
  • Working Load Limit (Industrial): 3,520 lb (1,600 kg)
  • Weight: 0.688 lb (312 g)
  • CE marked
  • Manufacturer part number: 1207W

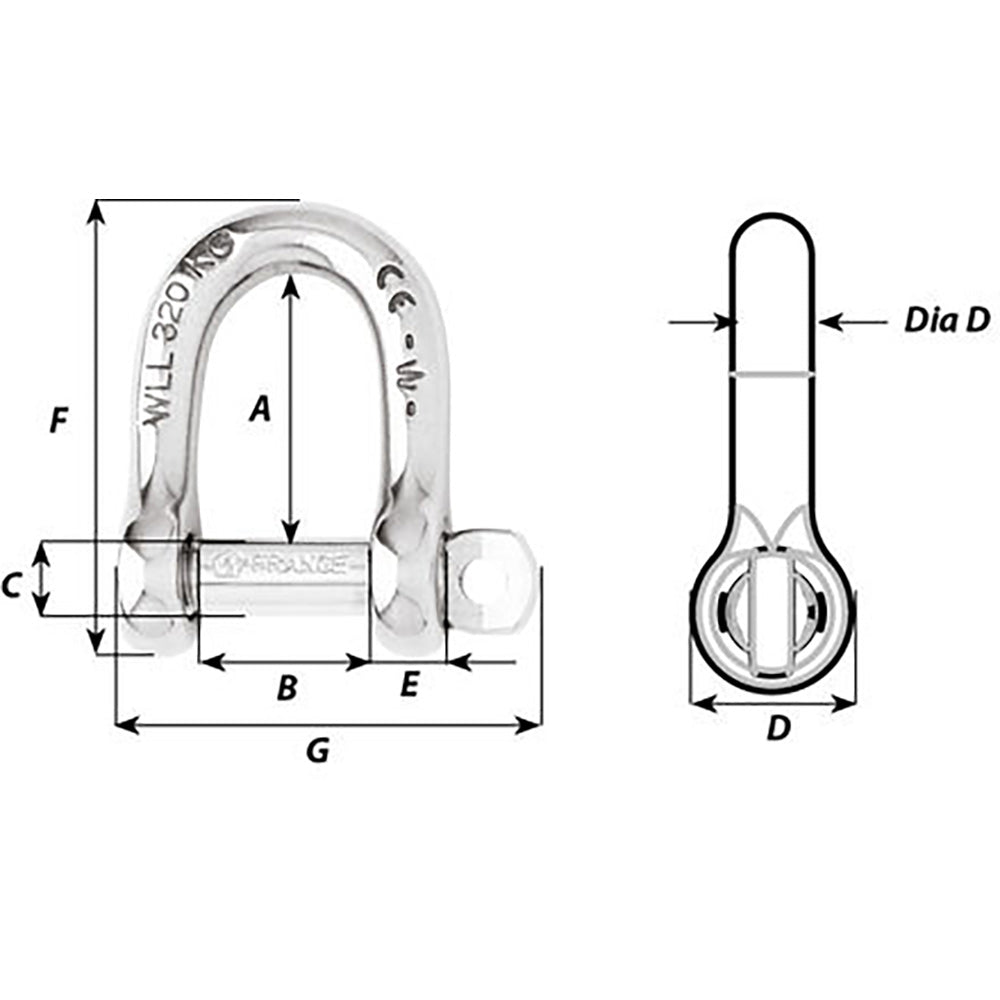

Dimensions:

  • Internal Length (A): 1 27/32 in. (47 mm)
  • Internal Width (B/D): 1 7/64 in. (28 mm)
  • Pin Diameter (C): 35/64 in. (14 mm)
  • Clearance (E): 33/64 in. (13 mm)
  • Overall Length (F): 3 15/64 in. (82 mm)
  • Pin Clearance (G): 3 5/64 in. (78 mm)

Each shackle is sold individually. Note: The Working Load Limit (WLL) applies specifically to industrial applications, utilizing a safety factor of 5 times the breaking load.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-117396
Model / MPN
1207W
Package dimensions (H × W × L)
1" X 3" X 6"
Package weight
0.71 lb

Specifications

Type
Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16"
