Brand: Wichard Marine

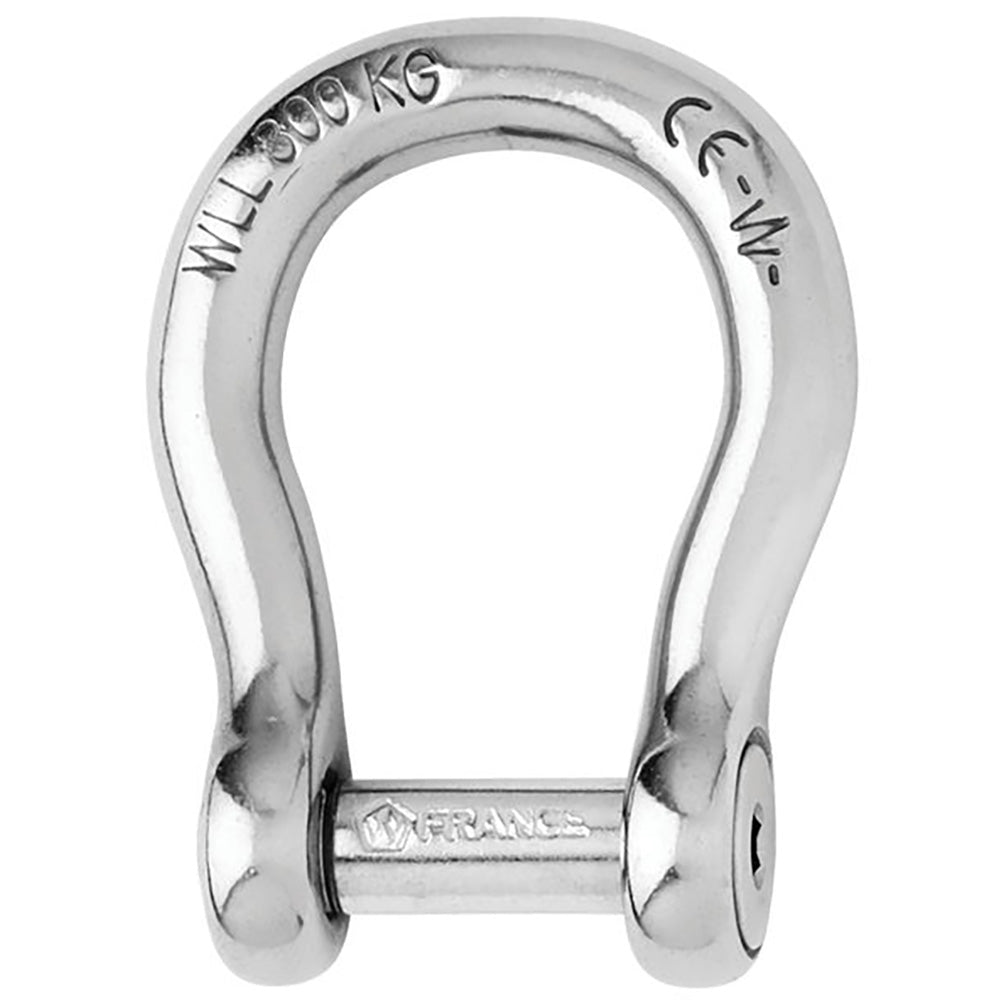

Wichard Self-Locking Allen Head Bow Shackle, 10mm
Wichard Self-Locking Allen Head Bow Shackle, 10mm
Sold out
About this product
The Wichard Self-Locking Allen Head Bow Shackle is forged from grade 316L stainless steel, designed to provide a secure, snag-free connection for marine applications. Featuring a recessed pin that locks into indentations, this shackle resists loosening from vibrations and prevents damage to sails or rigging.
Key Features:
- Forged 316L grade stainless steel construction
- Flush-mount pin head prevents snagging
- Self-locking mechanism for vibration resistance
- CE marked
- Diameter: 10mm (13/32")
- Working Load (WL): 3,170 lbs (1,440 kg)
- Working Load Limit (WLL): 1,890 lbs (860 kg) for industrial applications
- Breaking Load: 9,470 lbs (4,300 kg)
- Weight: 0.293 lbs (133 g)

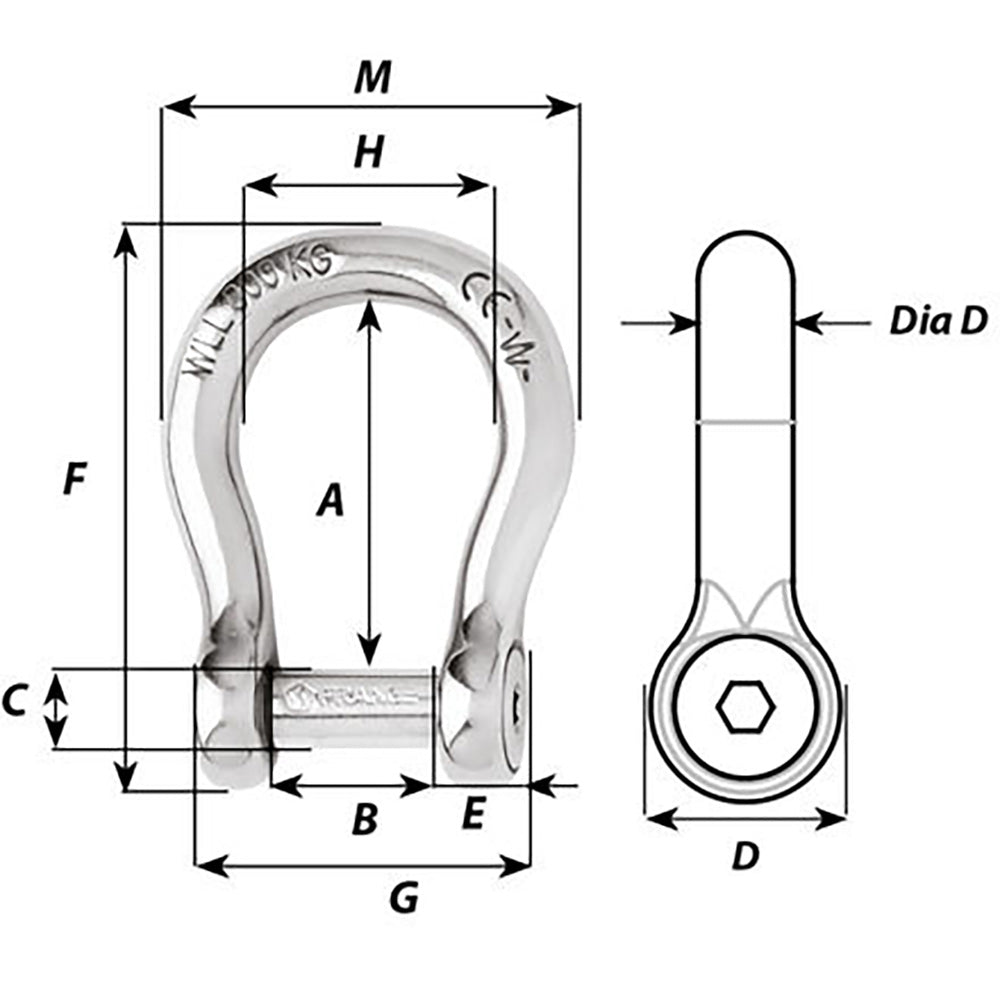

Dimensions:
- A: 1 27/32" (47mm)
- B: 25/32" (20mm)
- C: 25/64" (10mm)
- D (Width): 25/32" (20mm)
- D (Diameter): 25/64" (10mm)
- E: 23/64" (9mm)
- F: 1 17/64" (32mm)
- M: 2 3/64" (52mm)
Ideal for linking anchors and chains or for use on halyards. Sold as an individual unit. Manufacturer Part Number: 1345W.
