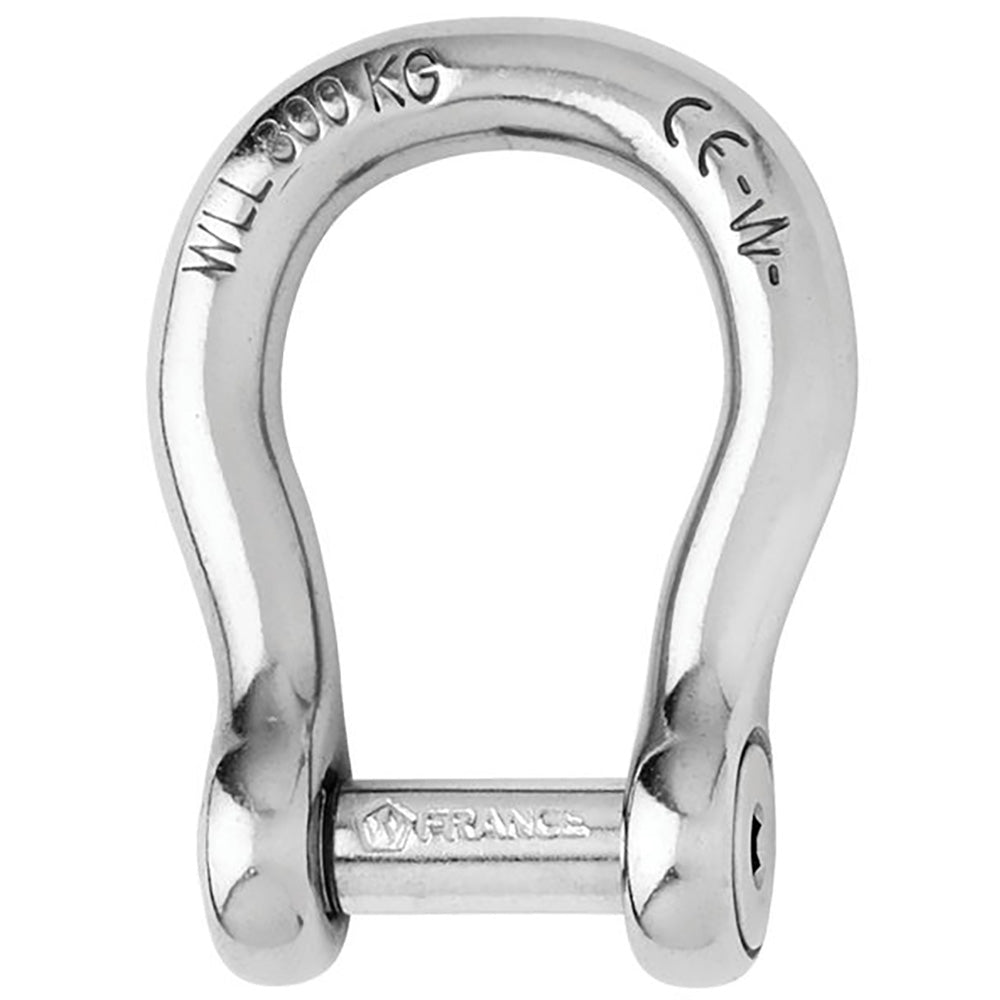

Wichard Self-Locking Allen Head Bow Shackle, 6mm

The Wichard Self-Locking Allen Head Bow Shackle is a forged 316L stainless steel fastener designed for secure connections in marine applications. Its self-locking pin design features an allen head that sits flush with the shackle body, preventing snagging and ensuring stability against vibration.

Key Features:

• Forged 316L stainless steel construction
• Flush-mount pin design eliminates snagging
• Self-locking mechanism prevents loosening from vibration
• Ideal for chain and anchor connections or halyard applications
• Sold as an individual shackle

Specifications:

• Diameter: 6mm (approx. 1/4 in.)
• Working Load (Nautical): 1,320 lbs (600 kg)
• Working Load Limit (Industrial): 660 lbs (300 kg)
• Breaking Load: 3,300 lbs (1,500 kg)
• Weight: 0.064 lbs (29 g)

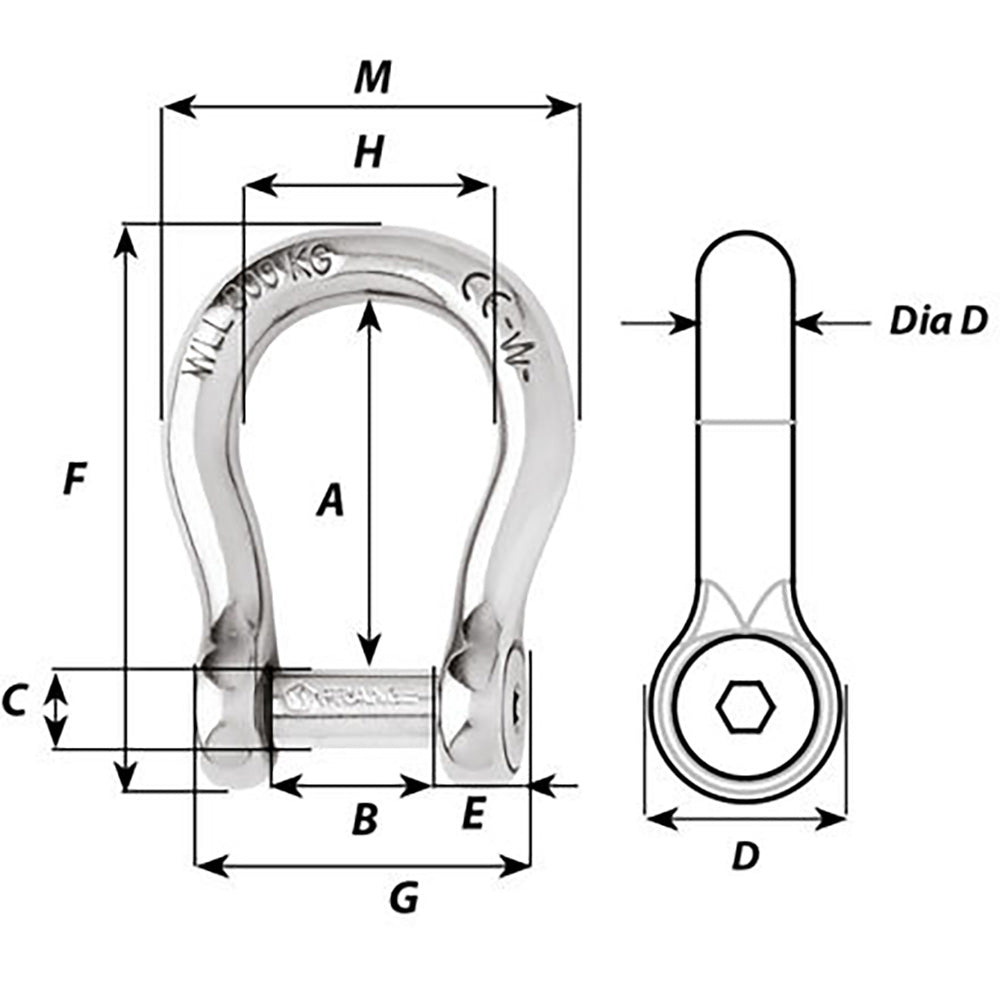

• Dimensions: A: 27 mm (1 1/16 in.); B: 12 mm (15/32 in.); C: 6 mm (15/64 in.); D: 12 mm (15/32 in.); E: 5 mm (13/64 in.); F: 1 mm (3/64 in.); M: 32 mm (1 17/64 in.)
• Manufacturer Part Number: 1343W
