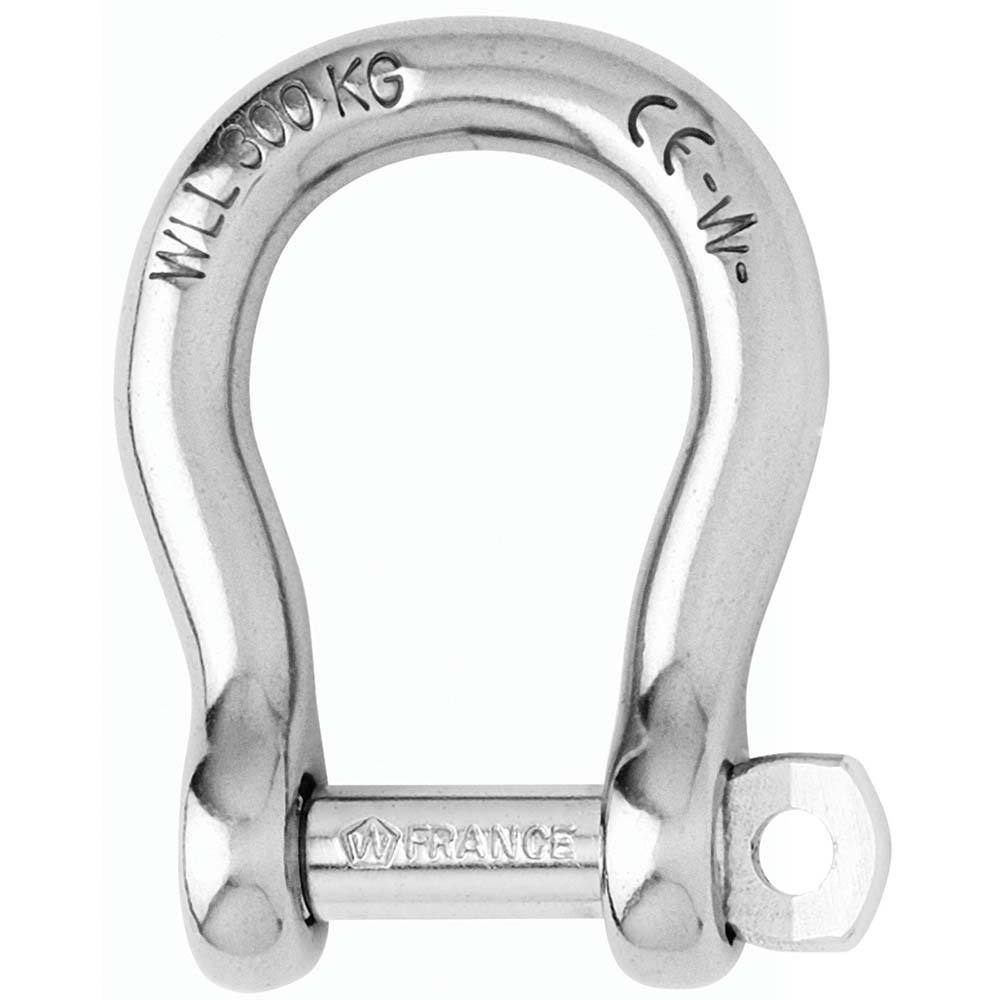

Wichard Self-Locking Bow Shackle, 12mm 316L Stainless Steel – CE Certified

Ensure maximum security and reliability in your marine and industrial rigging with the Wichard Self-Locking Bow Shackle. Expertly forged from corrosion-resistant 316L stainless steel, this shackle features an innovative self-locking pin designed to prevent accidental loosening from vibrations, even in the harshest conditions. Approved for lifting applications with a CE marking and a robust 5:1 safety factor, it offers unparalleled strength and peace of mind. Upgrade your gear with Wichard's trusted engineering for superior performance.

Key Benefits & Specifications:

• Premium 316L Stainless Steel Construction: Forged from high-grade 316L stainless steel, offering exceptional corrosion resistance and long-term durability in aggressive environments.
• Secure Self-Locking Pin: Features an innovative self-locking pin mechanism that positively locks into indentations, virtually eliminating risks of loosening due to intense vibrations.
• Certified for Lifting: CE marked in accordance with the Machinery Directive 2006/42/EC, affirming its suitability for industrial lifting applications with a 5:1 safety factor.
• High Working Load Limit (WLL): Rated for a Working Load Limit (WLL) of 2640 lb (1200 kg) for industrial applications, ensuring robust load-bearing capability.
• Exceptional Breaking Load: Boasts an impressive breaking load of 13220 lb (6000 kg), providing a significant safety margin.
• Versatile Nautical Working Load: Offers a working load of 4580 lb (2080 kg) for general nautical applications.

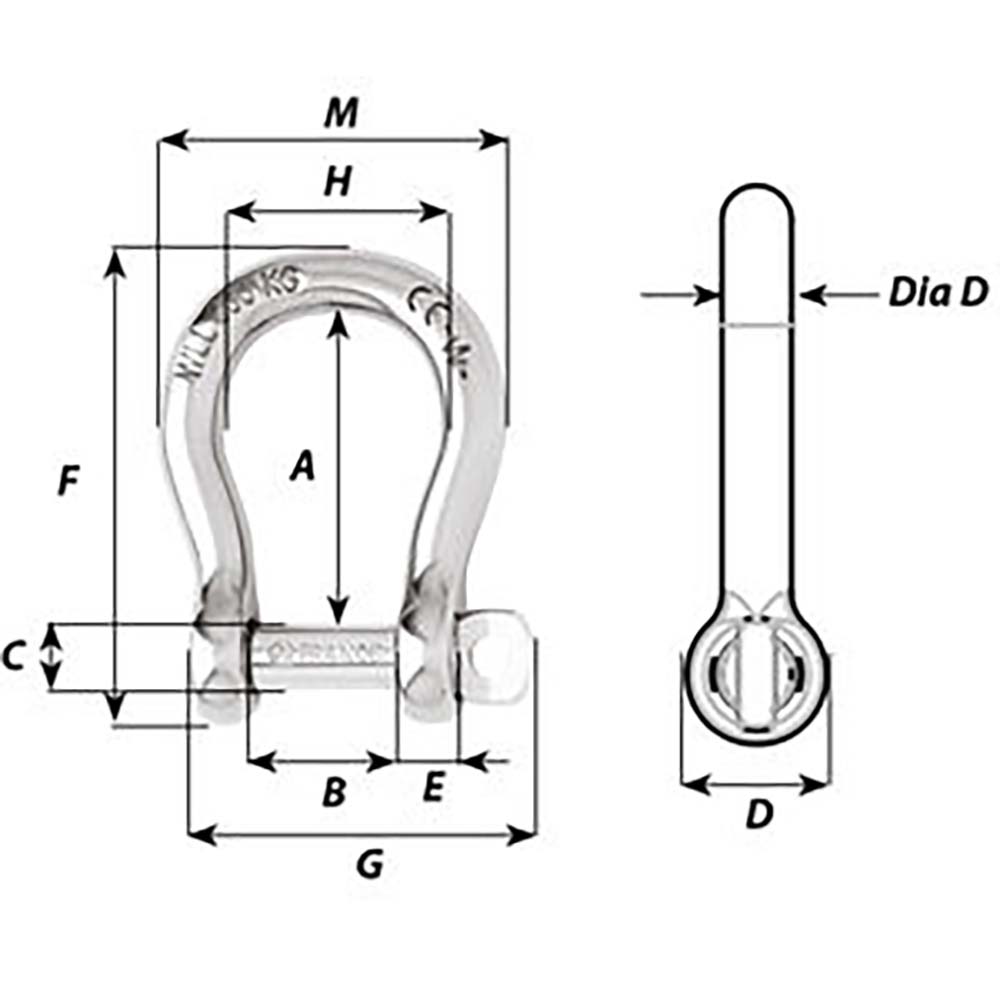

• Optimized Dimensions: Designed with a 12mm (15/32") pin diameter (C) and an inner width (D) of 15/16" for versatile attachment points. Overall dimensions include an outer width (B) of 15/16", an overall height (A) of 2-11/64", an inside height (E) of 25/64", and an opening measurement (M) of 2-31/64".
• Lightweight Design: Weighs approximately 0.514 lb (233 g), minimizing added bulk without compromising strength.

Applications:

• Ideal for use when ample room is required, or when connecting multiple lines or cables is necessary.
• Perfect for industrial lifting and demanding marine environments due to its robust construction and certifications.
