Brand: Wichard Marine
Wichard Self-Locking D Shackle, 5/32 in. Diameter (1201W)
Wichard Self-Locking D Shackle, 5/32 in. Diameter (1201W)
9 available
About this product

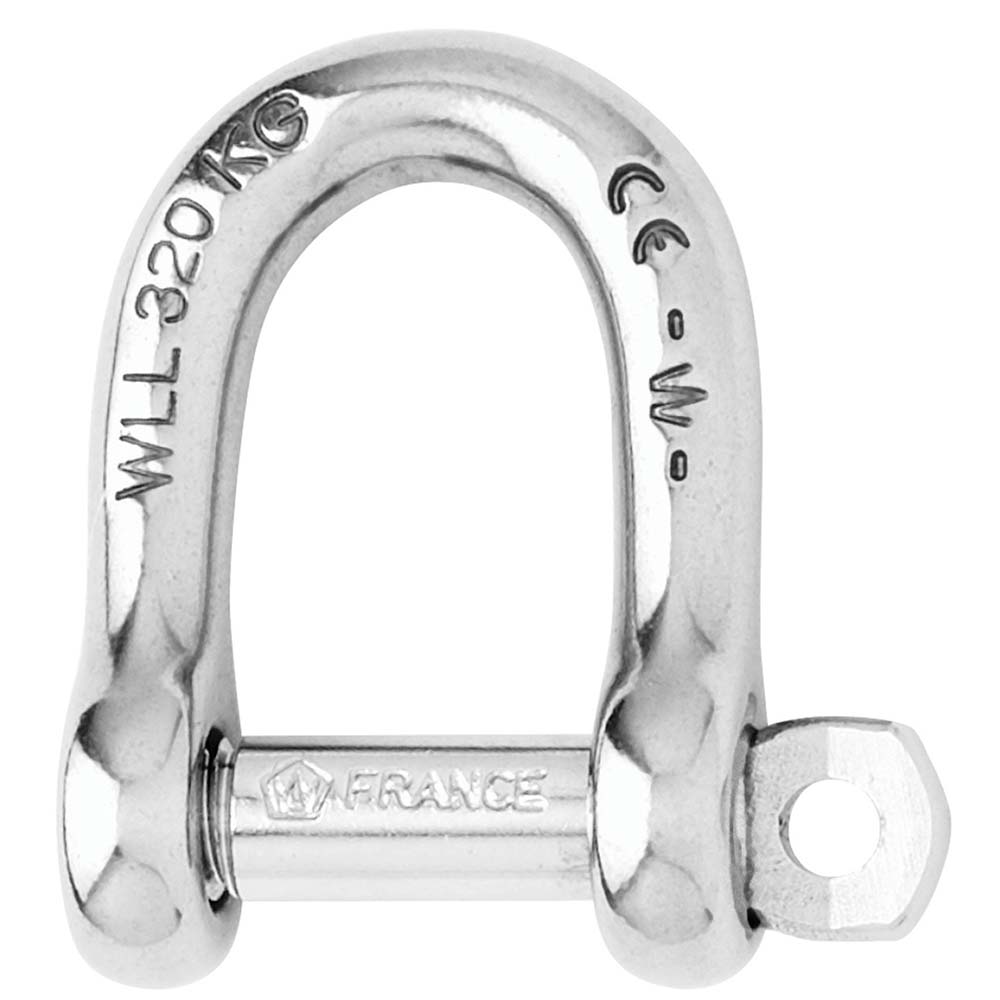

This Wichard Self-Locking D Shackle is forged from grade 316L stainless steel, offering durability and high breaking loads for marine and attachment applications. The integrated locking system secures the pin into indentations, preventing loosening caused by vibrations.
Key Specifications:
- Pin Diameter: 5/32 in. (4mm)
- Working Load: 700 lbs.
- Working Load Limit (WLL): 300 lbs.
- Breaking Load: 1540 lbs.
- Weight: 0.015 lbs.
- Material: 316L Stainless Steel
- Manufacturer Part Number: 1201W
- UPC: 3587790012019

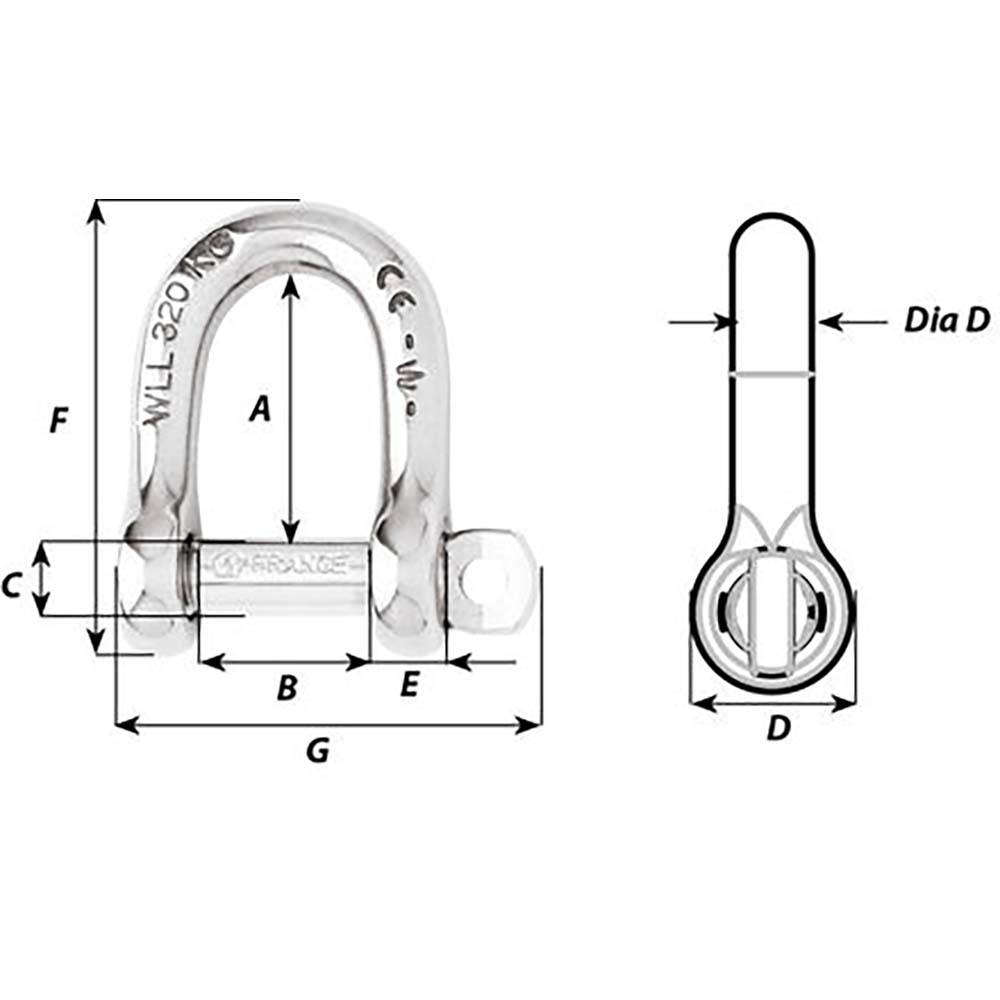

Dimensions:
- A: 33/64 in.
- B: 5/16 in.
- C: 5/32 in.
- D: 5/16 in.
- E: 1/8 in.
- F: 29/32 in.
- G: 25/32 in.
Each unit features a CE marking and unique batch number for traceability. The specified WLL is intended for industrial lifting applications.
