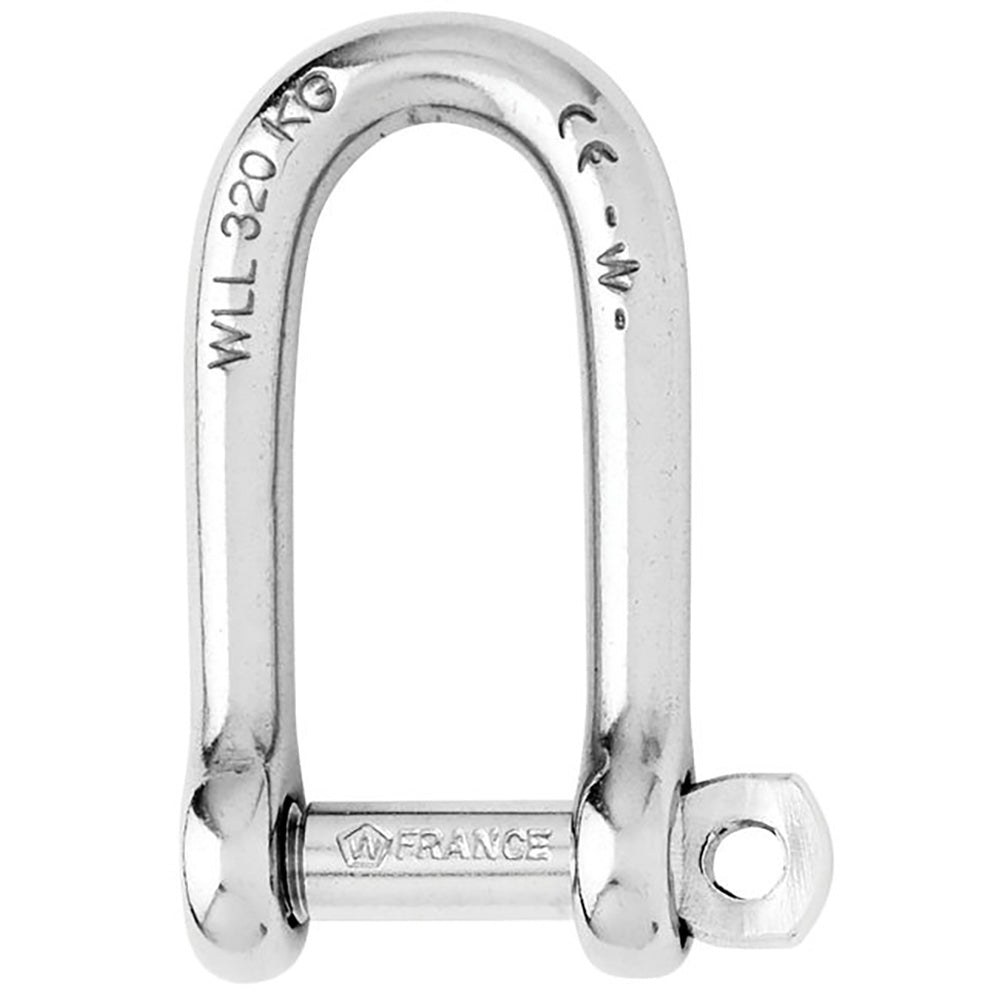

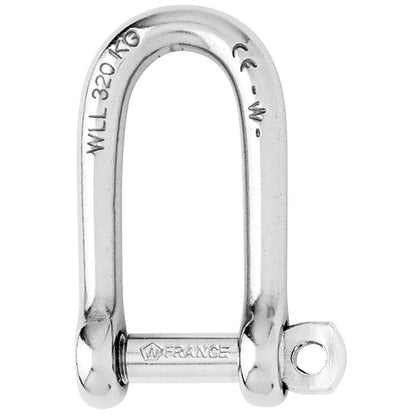

Self-Locking Long D Shackle - 10mm Diameter - 13/32"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3350 / (kg) 1520
- WLL: (lb) 1890 / (kg) 860
- Breaking load: (lb) 9470 / (kg) 4300
- Weight: (lb) 0.282 / (kg) 4300

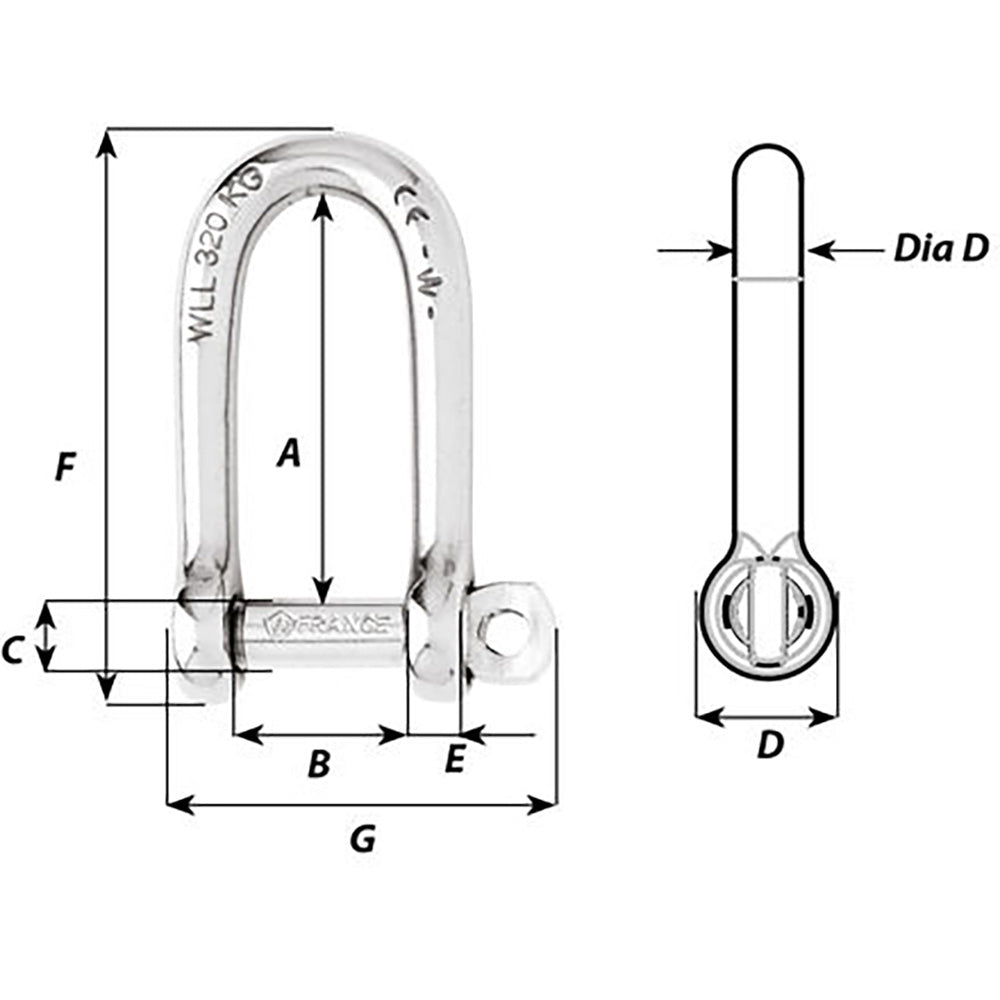

Dimensions:
- A: (inch) 2 11/64" / (mm) 55
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 3/4" / (mm) 19
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 23/64" / (mm) 9
- G: (inch) 3 7/64" / (mm) 79
- H: (inch) 2 3/64" / (mm) 52
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
