Brand: Wichard Marine
Wichard Self-Locking Long D Shackle, 1/4 in. (6mm)
Wichard Self-Locking Long D Shackle, 1/4 in. (6mm)
4 available
About this product
The Wichard Self-Locking Long D Shackle is a forged 316L stainless steel fastener designed for secure attachment in marine and industrial applications. This shackle features a self-locking mechanism where the pin secures into an indentation, preventing accidental loosening caused by vibrations.
- Material: Forged 316L stainless steel
- Diameter: 1/4 in. (6mm)
- Working Load: 1,320 lb
- Breaking Load: 3,520 lb
- WLL: 700 lb (for industrial applications)
- Weight: 0.06 lb

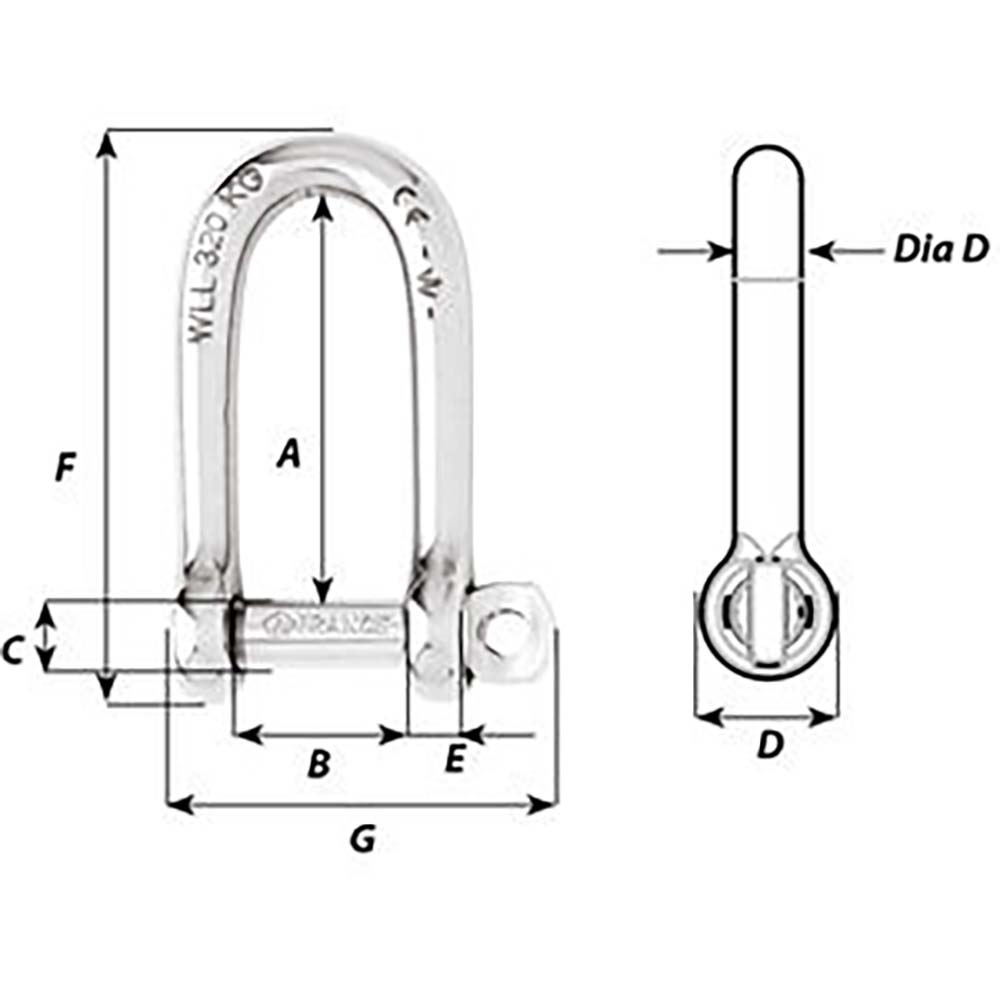

- Dimensions: A: 1-19/64 in., B: 15/32 in., C: 15/64 in., D: 15/32 in., D diameter: 15/64 in., E: 13/64 in., F: 1-27/32 in., G: 1-7/32 in.
- Manufacturing: Includes CE marking and batch number
Applications: Suitable for standard shackle use requiring additional length, including the attachment of blocks and heads.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-110682
- Model / MPN
- 1213W
- UPC / GTIN
- 768536012132
- Package dimensions (H × W × L)
- 1" X 2" X 6"
- Package weight
- 0.07 lb
Specifications
- Type
- Wichard Self-Locking Long D Shackle - Diameter 6mm - 1/4"
