Brand: Wichard Marine
Wichard Self-Locking Long D Shackle, 8mm (5/16 in.)
Wichard Self-Locking Long D Shackle, 8mm (5/16 in.)
Last one
About this product

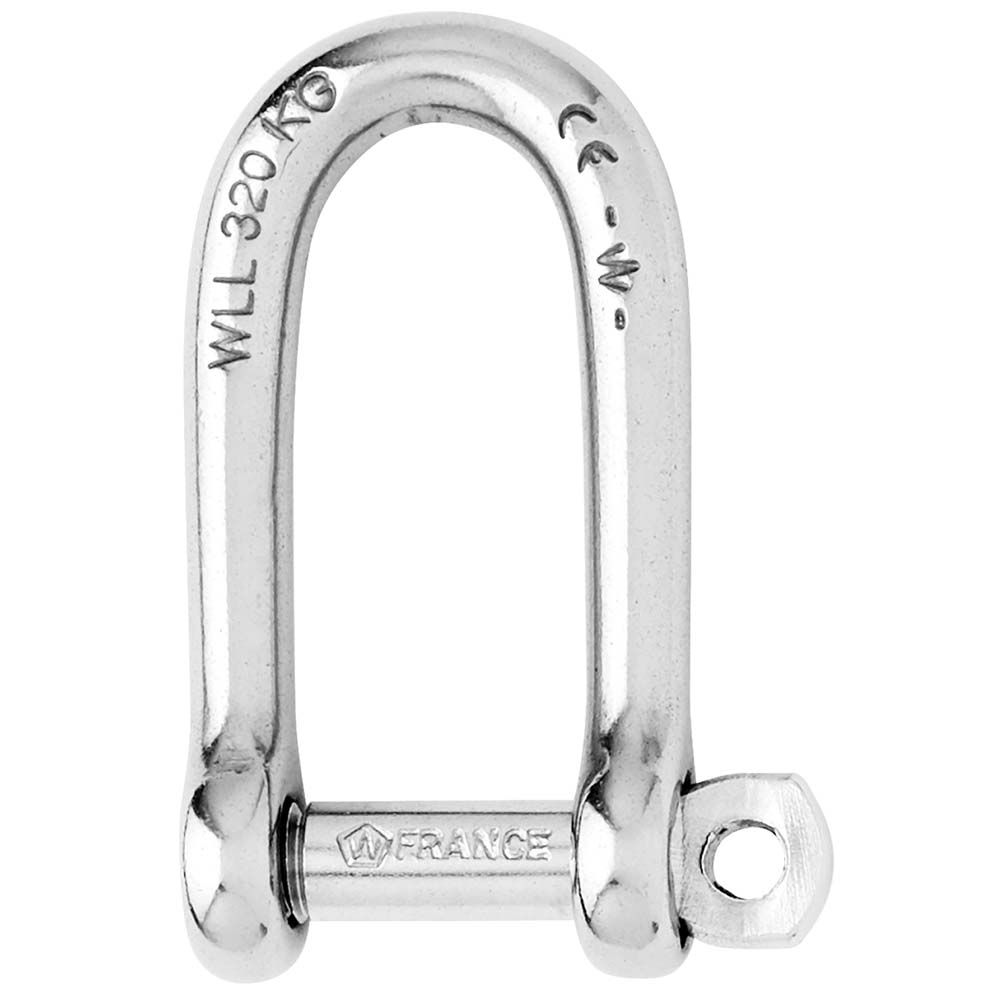

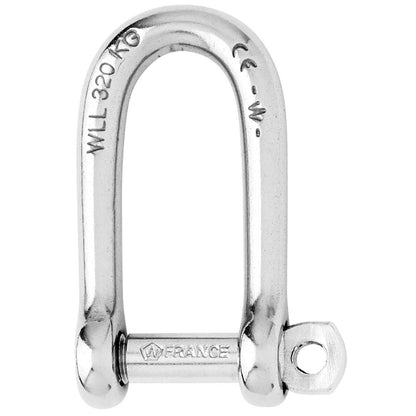

This Wichard Self-Locking Long D Shackle is precision-forged from grade 316L stainless steel for reliable performance in demanding marine environments. Designed with a self-locking pin that secures into integrated indentations, this shackle eliminates the risk of loosening caused by vibrations.
Key Features:
- Forged from high-grade 316L stainless steel
- Self-locking pin mechanism prevents vibration-induced loosening
- High working and breaking load capacity
- Includes CE marking and batch number for traceability
- Ideal for standard shackle applications requiring extra length, such as attaching blocks or heads
Specifications:
- Diameter: 8mm (5/16 in.)
- Working load: 2200 lbs
- Working Load Limit (WLL): 1190 lbs (for industrial applications)
- Breaking load: 5950 lbs
- Weight: 0.146 lbs

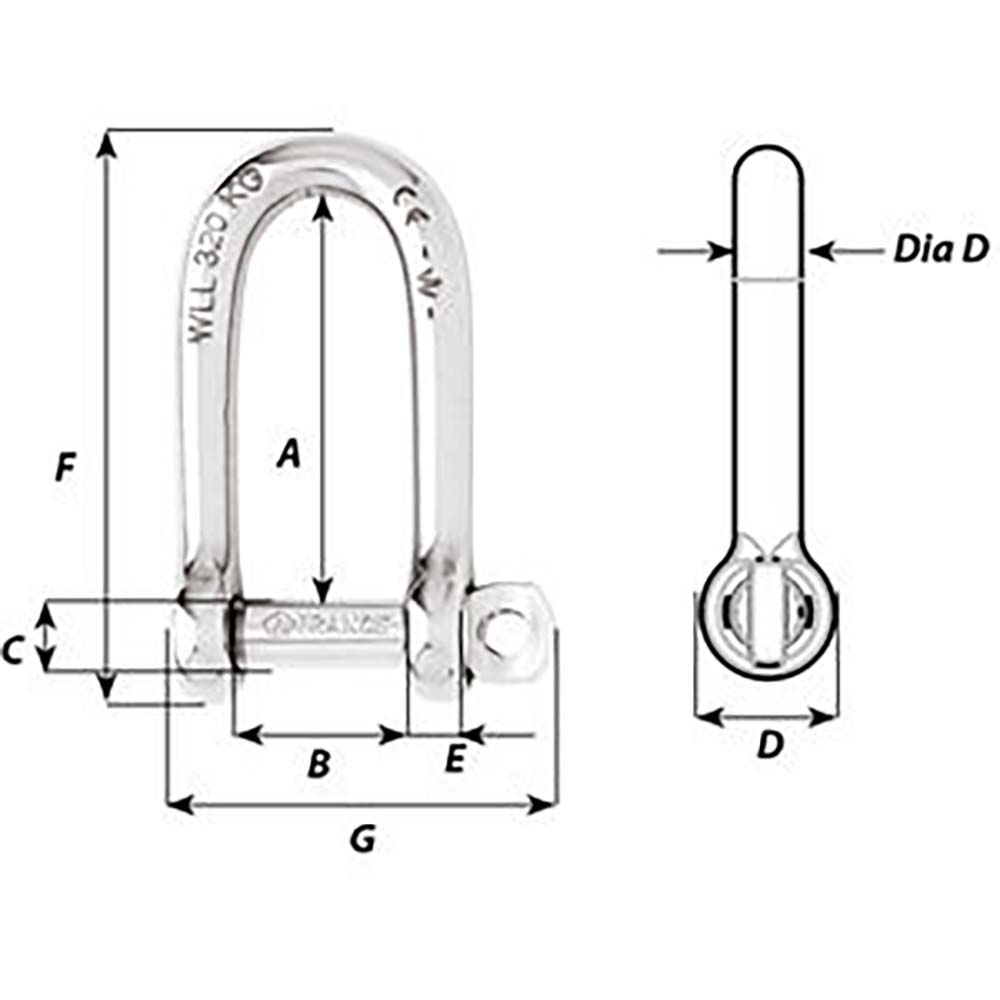

- Dimensions: A=1-49/64", B=5/8", C=5/16", D=5/8", E=9/32", F=2-33/64", G=1-39/64"
- Manufacturer Part Number: 1214W
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-110683
- Model / MPN
- 1214W
- UPC / GTIN
- 768536012149
- Package dimensions (H × W × L)
- 1" X 2" X 6"
- Package weight
- 0.16 lb
Specifications
- Type
- Wichard Self-Locking Long D Shackle - Diameter 8mm - 5/16"
