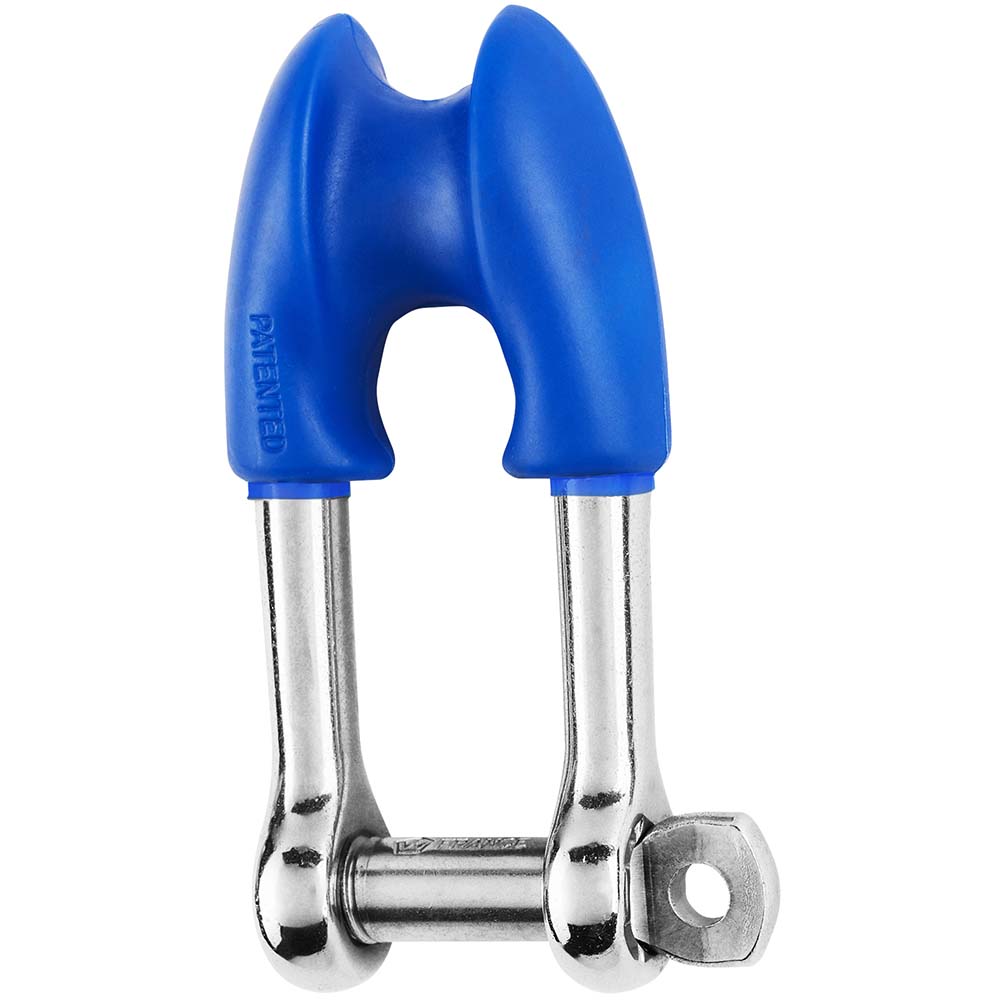

Wichard Marine Thimble Shackle, Captive Pin, 10mm (13/32") – 3350lb WL

Ensure maximum security and reliability in demanding marine applications with the Wichard Marine Captive Pin Thimble Shackle. Forged in France from premium 316L stainless steel, this shackle delivers exceptional corrosion resistance and a patented design that eliminates the risk of losing the pin. Its robust construction provides outstanding working and breaking loads, making it an essential component for critical rigging. Trust in over a century of Wichard expertise for uncompromised performance on the water.

Key Benefits & Specifications:

• Superior Corrosion Resistance: Forged in marine-grade 316L stainless steel for extreme durability against saltwater and harsh environments.
• Captive Pin Design: The innovative captive pin ensures the pin remains attached to the shackle body at all times, preventing loss during installation or removal.
• High Load Capacity: Engineered for strength with an impressive 3350 lb (1520 kg) working load and a 11020 lb (5000 kg) breaking load, suitable for high-stress applications.
• Optimal Rope Compatibility: Accommodates a maximum rope size of 16 mm (5/8 inch), ideal for various rigging lines including mainsheet halyards.

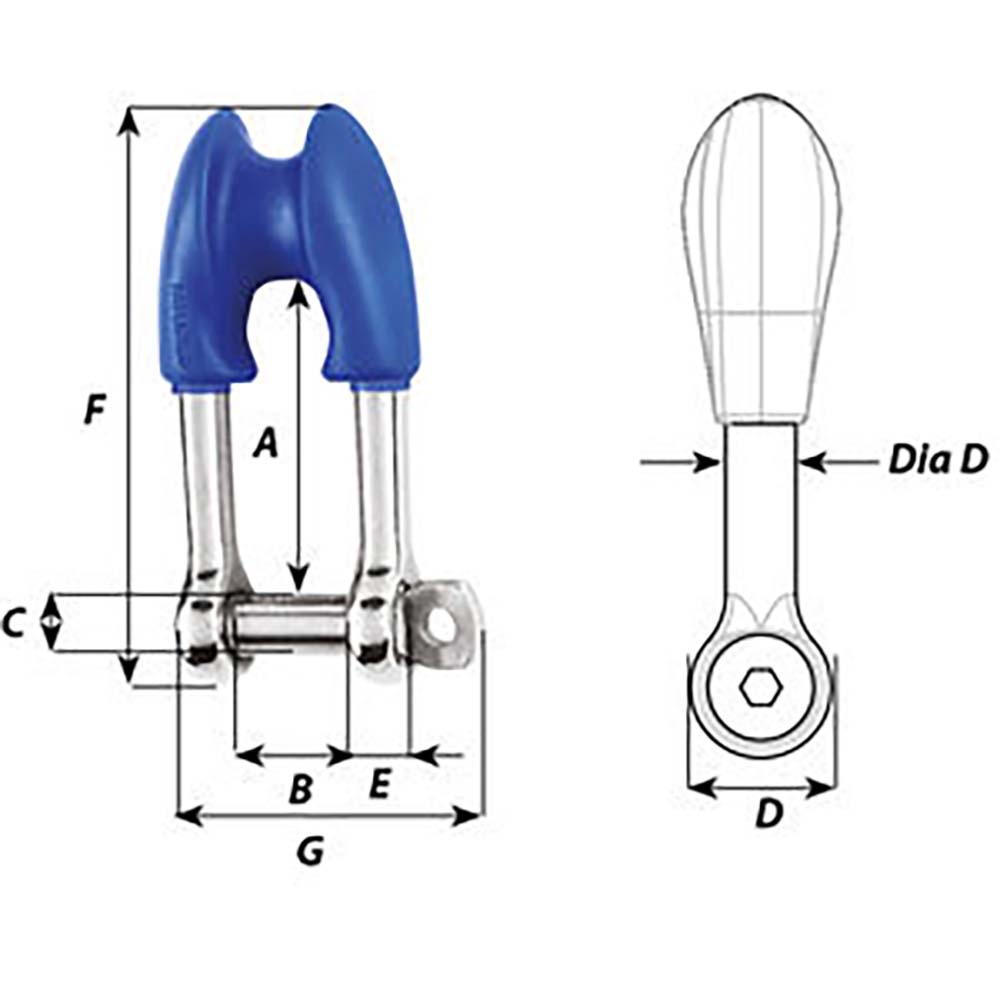

• Precision Engineered: Features precise dimensions with a 2-1/64 inch (51 mm) length (A) and 25/32 inch (20 mm) width (B), ensuring a snug and reliable fit.

Recommended Applications:

• Perfect for mainsheet halyards and other critical rigging on boats under 60 feet.
