Brand: Wichard Marine
Wichard 6523W U-Bolt Pad Eye, 6mm Diameter, 90mm Length
Wichard 6523W U-Bolt Pad Eye, 6mm Diameter, 90mm Length
Sold out
About this product
This Wichard U-Bolt Pad Eye is a drop-forged, 316L stainless steel fastening solution designed for marine applications including shrouds, lifelines, and blocks. Each unit is delivered with a counter-plate and bolts for installation.
- Material: 316L grade stainless steel
- Rod Diameter: 6 mm (15/64")
- Total Length: 90 mm (3 35/64")
- Working Load: 1280 kg (2820 lb)
- Breaking Load: 3000 kg (6610 lb)
- Weight: 67 g (0.148 lb)
- Max Tightening Torque: 7.5 Nm
- Includes: Pad eye, bolts, and counter-plate

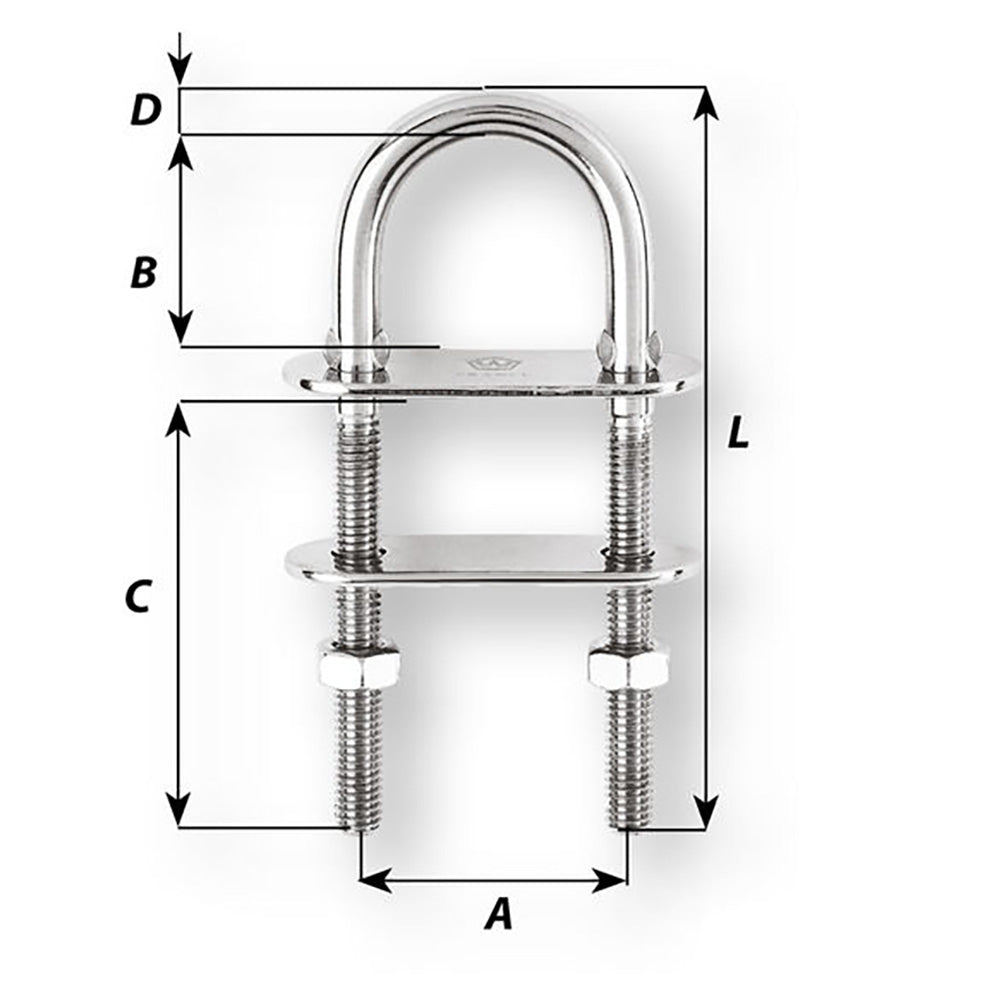

- Dimensions: A: 32 mm (1 17/64"), B: 27 mm (1 1/16"), C: 55 mm (2 11/64")
Note: Working Load (WL) is intended for nautical applications. For industrial applications, the Working Load Limit (WLL) is calculated as the breaking load divided by 5. Sold as an individual unit.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-115919
- Model / MPN
- 6523W
- UPC / GTIN
- 768536027211
- Package dimensions (H × W × L)
- 1" X 3" X 6"
- Package weight
- 0.16 lb
Specifications
- Type
- Wichard U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length
