Brand: Xantrex

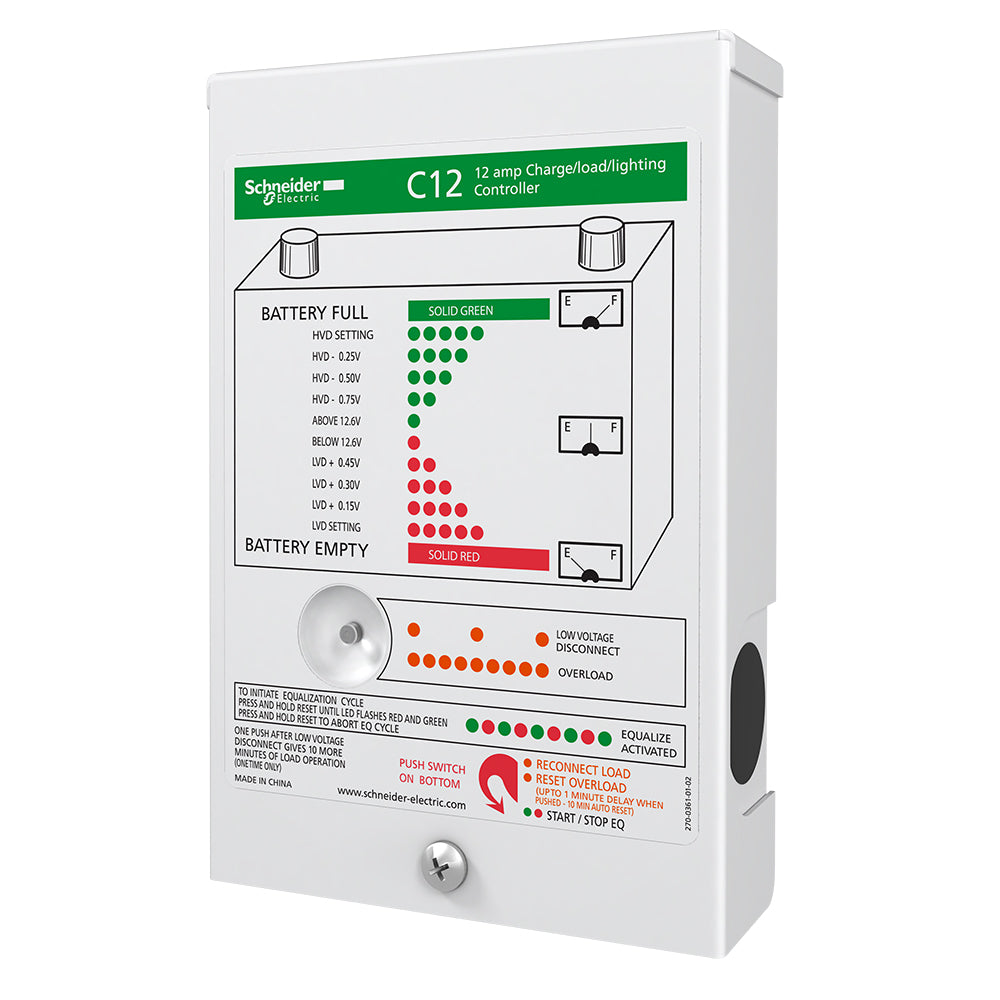

Xantrex C12 PWM Solar Charge Controller, 12 A at 12 V
Xantrex C12 PWM Solar Charge Controller, 12 A at 12 V
Sold out
About this product
The Xantrex C12 is a PWM PV charge, diversion, load, and lighting controller rated for 12 A at 12 V. It provides configurable three-stage charging, load control, and adjustable lighting operation for solar power systems.
- Controller functions: PV charge, diversion, load, and lighting control
- Charging: Three-stage PWM charging with user-definable voltage parameters and automatic equalization
- System rating: 12 A at 12 V only
- Load control: Field-adjustable low-voltage disconnect and reconnect points, plus a five-minute low-battery disconnect signal
- Lighting control: Adjustable run time from two to eight hours or dusk-to-dawn operation
- Protection: Electronic detection of short-circuit, overload, over-temperature, and reverse-polarity conditions
- Construction: Conformal-coated boards and a powder-coated enclosure
- Adjustability: Field-adjustable voltage and battery set points
- Temperature management: Temperature-based charging management is available with an optional battery temperature sensor
- Identifier: Manufacturer part number C12; UPC 687873000520
- Warranty: Two-year standard warranty
- Regulatory note: This product can expose you to chemicals including Diisononyl Phthalate (DINP), known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-106341
- Model / MPN
- C12
- UPC / GTIN
- 687873000520
- Package dimensions (H × W × L)
- 2" X 5" X 7"
- Package weight
- 1.34 lb
