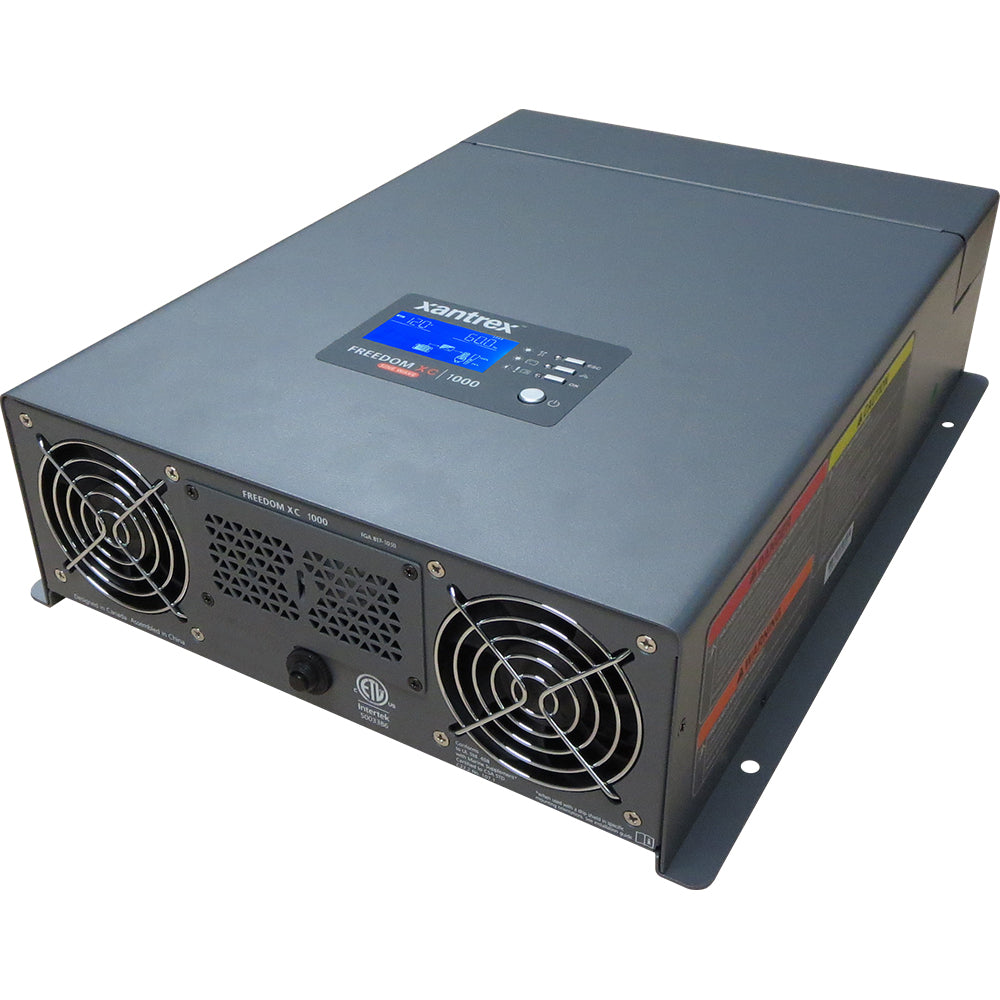

Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger, 12VDC to 120VAC, 1000W

The Xantrex Freedom XC 1000 is a compact, high-performance true sine wave inverter and charger with a built-in 30A AC transfer relay. Designed for recreational and commercial use, it provides reliable 120VAC power and features an extended surge rating capable of supporting demanding motor loads, such as refrigerators and microwaves.

Inverter Features:

• Continuous Output: 1000W with a 2000W surge rating for 2 seconds.
• Operating Temperature: Full output in invert or charge modes between -4°F and 104°F.
• Ignition Control: Enables unit power control via a 12VDC signal to minimize battery drain.
• Input Range: Wide 10-18 VDC input range compatible with high-voltage vehicle alternators.
• AC Connectivity: Hardwire connection with AC IN/OUT terminals.
• Configurable Shutdown: Programmable AC under-voltage shutdown (85-110VAC) for use with weak shore power or generators.

Charger Features:

• Multi-Stage Charging: Power factor corrected charging maintains efficiency and helps prevent tripped shore power breakers.
• Configurable Algorithms: Features a 3-stage temperature-compensated charging algorithm compatible with various battery types up to 18V.
• Battery Maintenance: Includes battery equalization for flooded batteries and supports charging dead batteries down to 0VDC.
• Power Share: Prioritizes AC loads by adjusting charge current to stay within breaker limits.

Regulatory Note: This product can expose you to chemicals, including Diisononyl Phthalate (DINP) and Di-isodecyl Phthalate (DIDP), which are known to the State of California to cause cancer and reproductive harm. For more information, visit P65Warnings.ca.gov.
