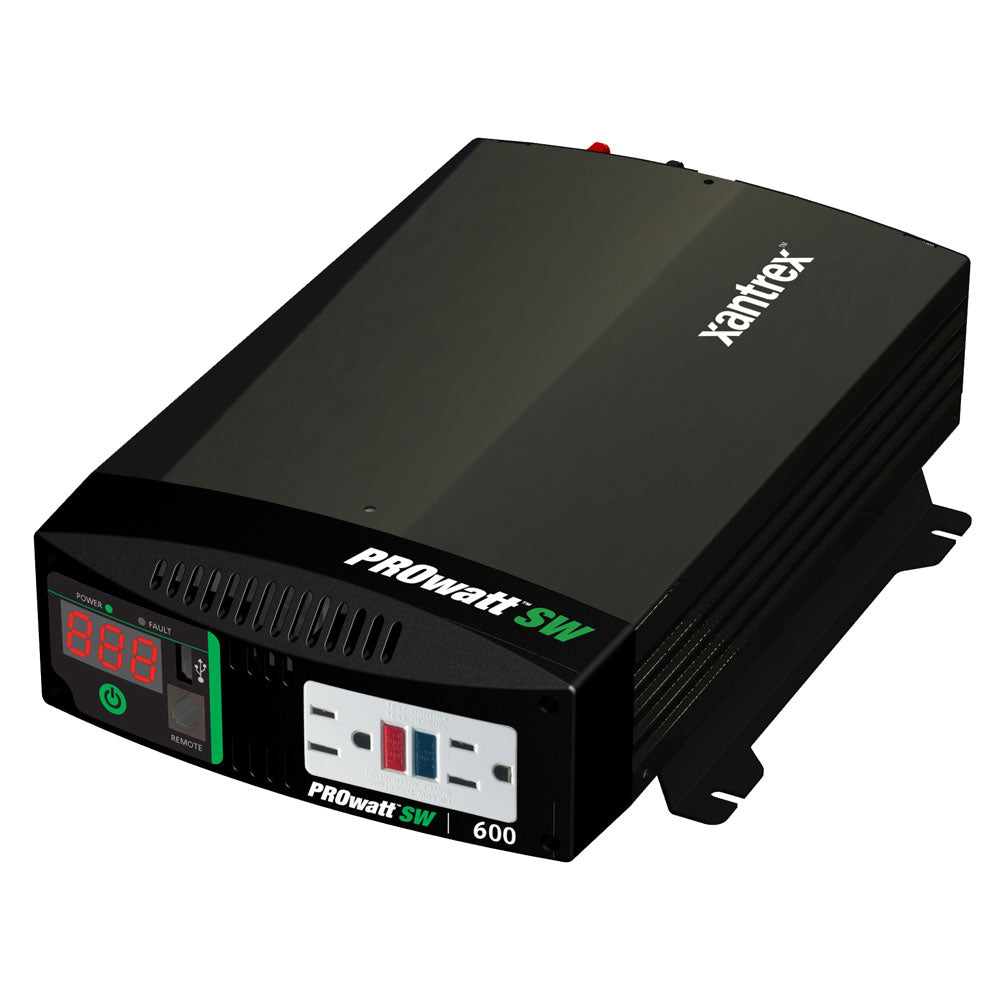

The Xantrex PROwatt SW600 is a 12V true sine wave inverter designed to provide reliable household-style AC power for RV, commercial truck, and marine applications. It delivers 540W of continuous power and features a 1200W surge capacity to handle demanding electrical startup loads.
Key Features:
- True sine wave output suitable for sensitive electronics and variable speed power tools
- Integrated digital display for monitoring DC voltage, AC output power, and error codes
- Dual GFCI AC receptacles and a built-in 5V USB port (Type A)
- Heavy-duty terminals for secure battery connections
- Comprehensive safety protections including low/over voltage, overload, and over-temperature shutdowns
- Optional remote switch available with ignition lockout capability
- Dimensions: 3.5" x 8.7" x 12.2"
- Weight: 6.5 lbs
- Two-year warranty
Technical Specifications:
- Input Voltage: 10.5 - 15.5 Vdc
- AC Output: 104 - 127 Vac at 60 Hz
- Optimum Efficiency: 90%
- Recommended DC Fuse: 150 A
- Operating Temperature: 32°F to 104°F
Regulatory note: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Di-isodecyl Phthalate (DIDP), which are known to the State of California to cause cancer and reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-101555
- Model / MPN
- 806-1206
- UPC / GTIN
- 715535894061
- Package dimensions
- 6" X 10" X 15"
- Package weight
- 6.8 lb
- Specifications
- DC Connection Type = Hardwire\nGFCI = Yes\nOutlet Qty = 1 Duplex GFCI\nInverter Surge Rating = 1200w\nInverter Input Voltage = 10.5-15.5v\nWaveform = True Sine Wave\nAC Connection Type = Hardwire\nInverter Output Voltage = 104-127v\nInverter Cont. Output Wattage = 540w
