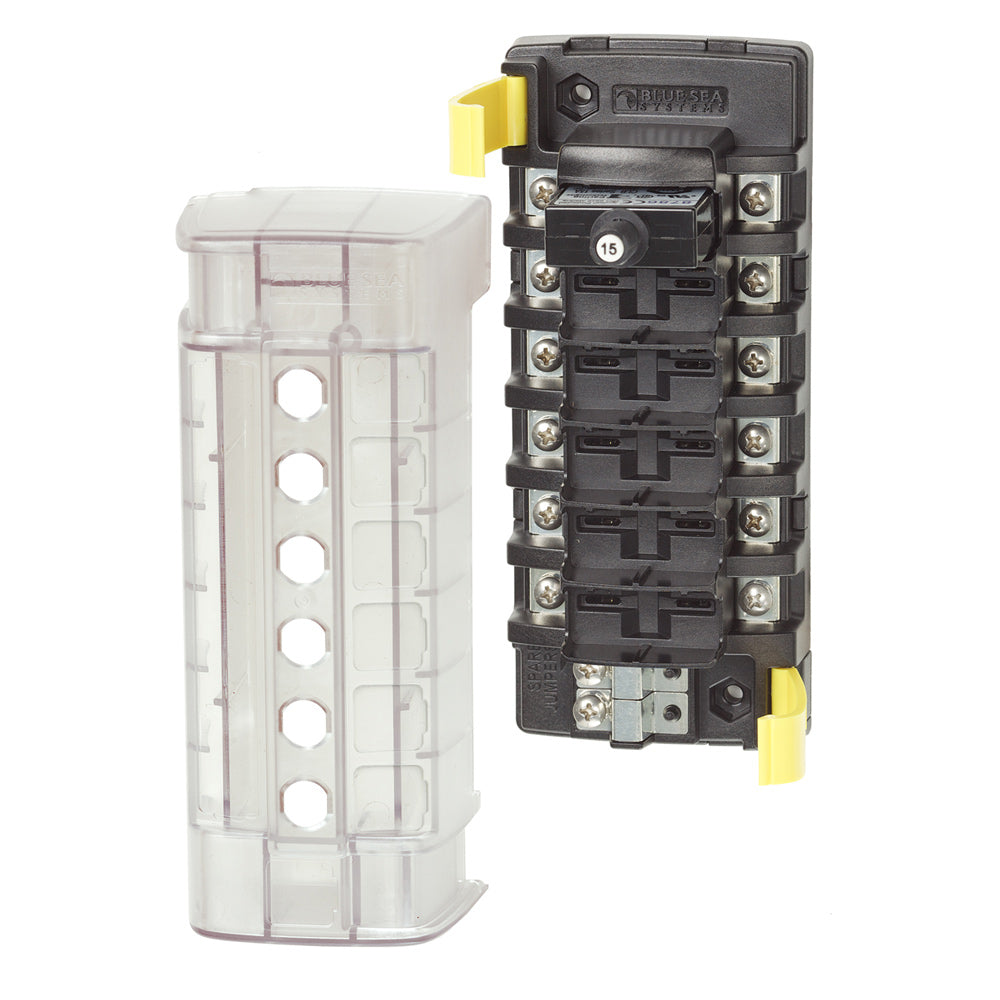

Blue Sea Systems 5050 ST CLB Circuit Breaker Block, 6 Circuits, 32V DC

Ensure reliable and efficient power distribution in your marine or mobile electrical system with the Blue Sea Systems 5050 ST CLB Circuit Breaker Block. This robust 6-position block simplifies circuit protection by utilizing compact, snap-in-place CLB resettable circuit breakers, making installation as straightforward as a fuse system. Designed for demanding environments, it provides independent protection for up to six circuits while meeting ABYC/USCG insulation requirements. Upgrade your vessel's electrical safety and management today.

In the Box:

• Blue Sea Systems 5050 ST CLB Circuit Breaker Block
• 2x Terminal Block Jumpers

Key Features & Benefits:

• 6 Independent Circuits: Provides dedicated protection for multiple devices, supporting up to 32A per circuit or 40A per jumped circuit group for flexible power management.
• Snap-In Circuit Breaker Compatibility: Designed for easy installation of CLB resettable circuit breakers, simplifying maintenance and upgrades.
• Durable Construction: Features tin-plated copper busses and screw terminals for superior corrosion resistance and reliable electrical connections.

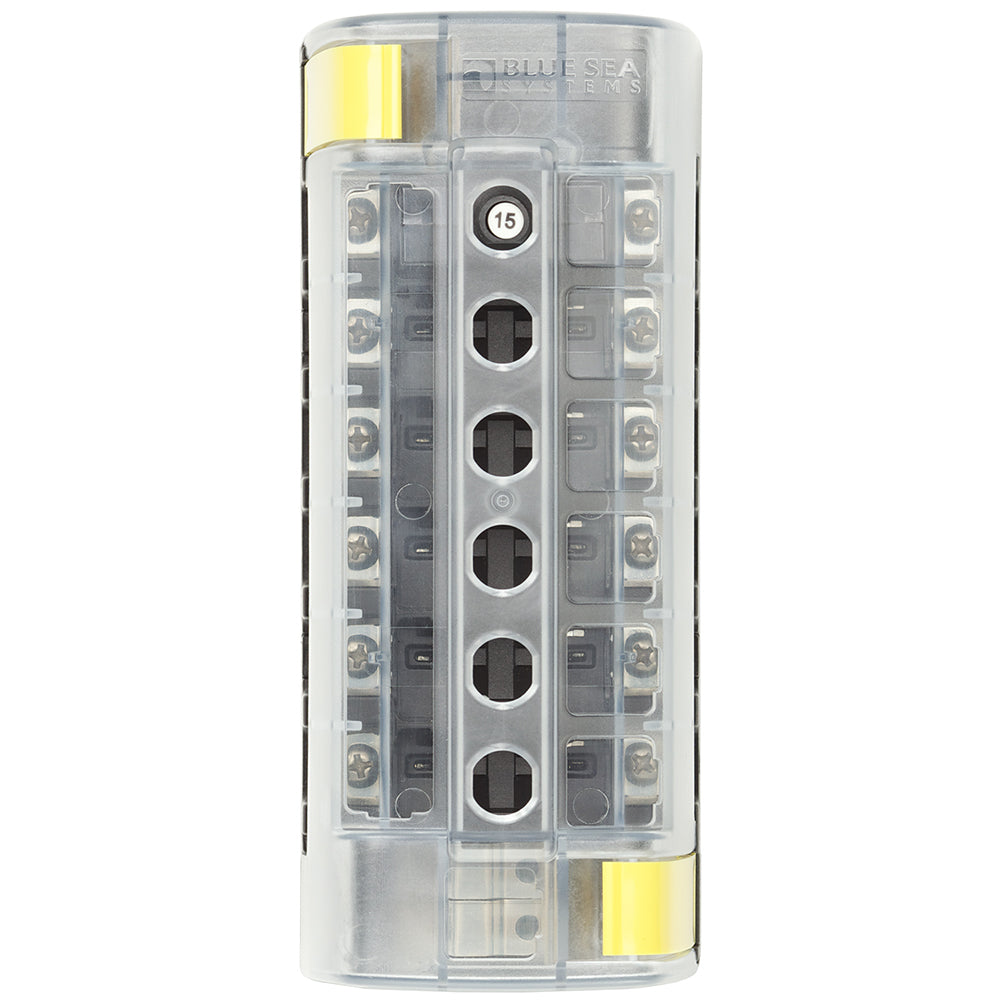

• ABYC/USCG Compliant Cover: Includes a clear insulating cover with square format label recesses, ensuring safety and compliance with marine standards.
• Flexible Wire Access: Breakouts allow wire entry and exit in two directions for versatile installation options.
• Broad Operating Temperature: Functions reliably in temperatures ranging from -10° C to 60° C, suitable for diverse conditions.

Specifications:

• Circuits: 6
• Maximum Amperage: 32A (per circuit) / 40A (per jumped circuit group)
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4) or #8 Nut
• Mounting Centers: 5.63" (143 mm)
• Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
• Height: 6.69" (169.93 mm)
• Weight: 0.75 lb (0.34 kg)

Recommended Pairings: Enhance functionality with Blue Sea Systems CLB Push Button Reset Only Quick Connect Circuit Breakers (various amperages available) and optional waterproof boots or dress nuts.
