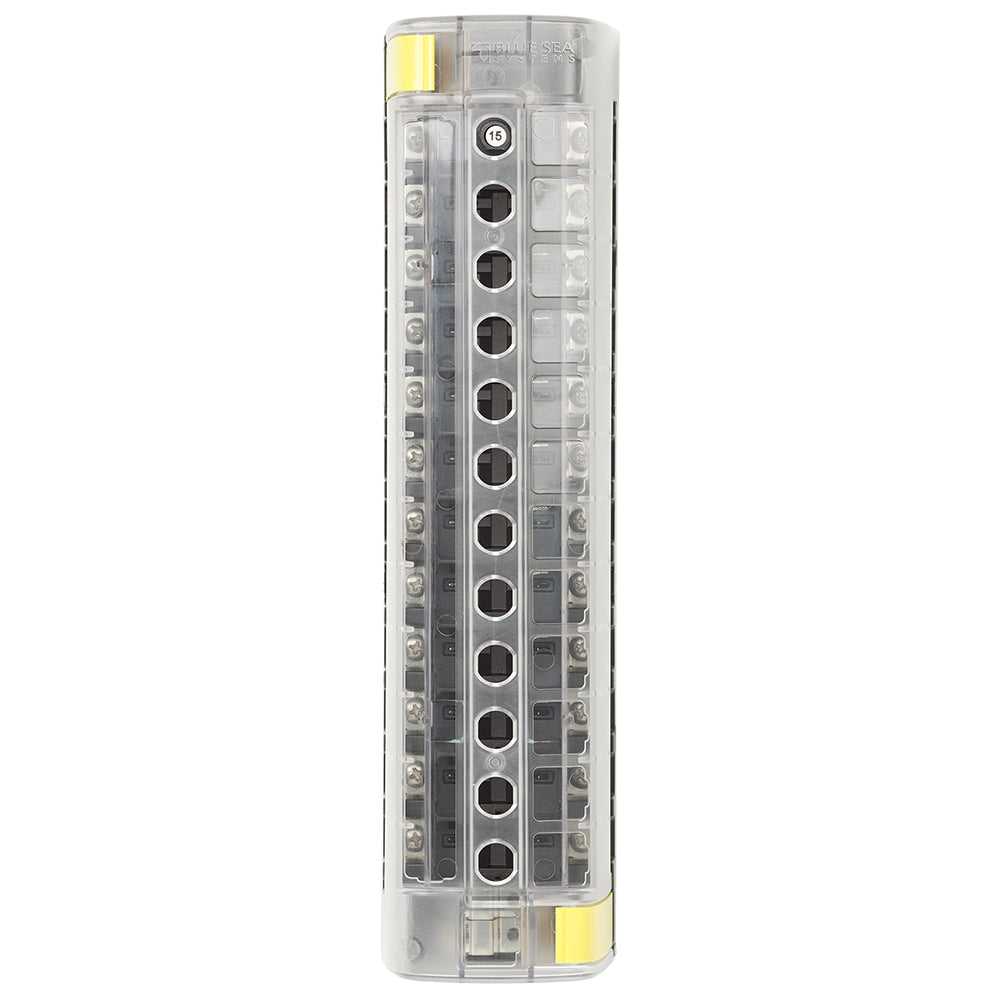

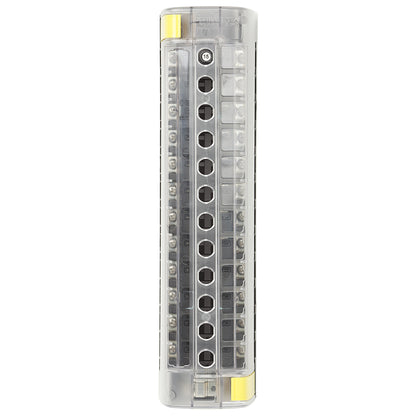

Blue Sea Systems 5051 ST CLB Circuit Breaker Block, 12 Circuits, 32V DC

Ensure robust and reliable electrical distribution with the Blue Sea Systems 5051 ST CLB Circuit Breaker Block. Designed for efficiency and safety in demanding marine and vehicle applications, this block consolidates your circuit protection in a compact, surface-mountable design. Its innovative snap-in-place CLB resettable circuit breakers make installation as straightforward as a fuse, simplifying maintenance and upgrades. Invest in Blue Sea Systems for superior circuit management that meets ABYC/USCG insulation requirements.

• 12 Independent Circuits: Provides organized and dedicated protection for multiple electrical loads.
• Snap-In Breaker Design: Utilizes compact, resettable CLB circuit breakers for quick and easy installation, similar to a fuse.
• High Amperage Capacity: Supports up to 32A per circuit or 40A for jumped circuit groups, accommodating various power demands.
• Durable Construction: Features tin-plated copper busses and screw terminals for secure, corrosion-resistant, and reliable wiring connections.

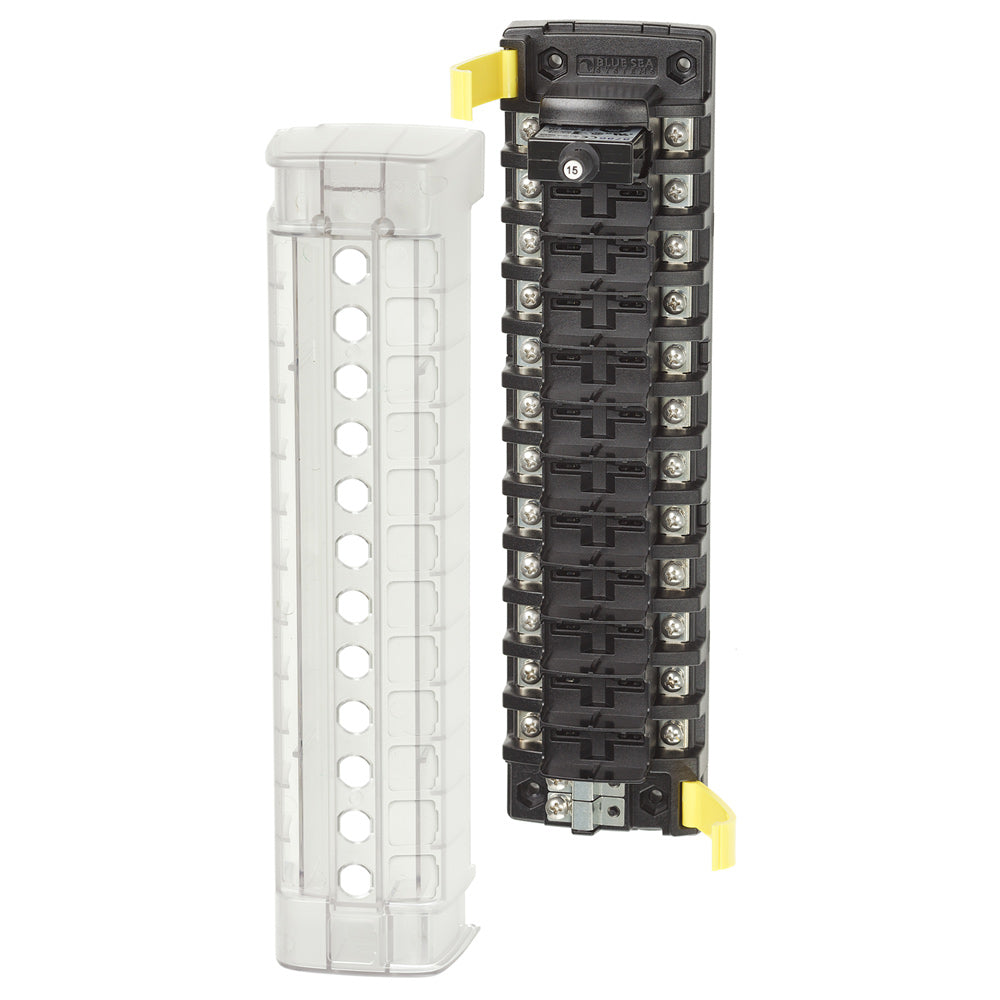

• ABYC/USCG Compliant Cover: Includes a clear insulating cover with square format label recesses that satisfies rigorous insulation requirements, offering enhanced safety and easy circuit identification.
• Dual Wire Access: Breakouts allow wire entry and exit in two directions, providing flexible installation options.
• Wide Operating Temperature: Functions reliably in temperatures ranging from -10° C to 60° C, suitable for diverse environments.

• Circuits: 12
• Maximum Amperage: 32A (per circuit) / 40A (per jumped circuit group)
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4) or #8 Nut
• Weight: 1.50 lbs (0.68 kg)

Ideal for marine vessels, RVs, commercial vehicles, and other 12V DC electrical systems requiring centralized and resettable circuit protection.
