Brand: Blue Sea Systems

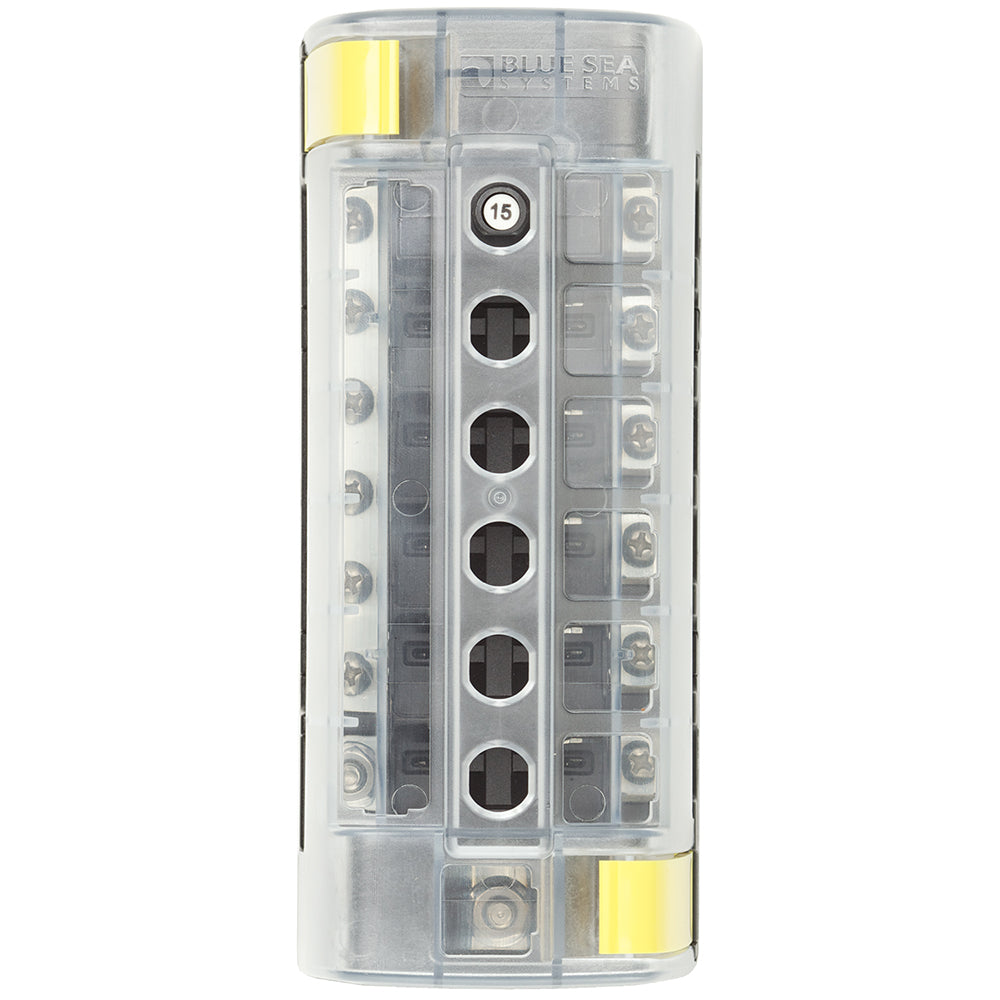

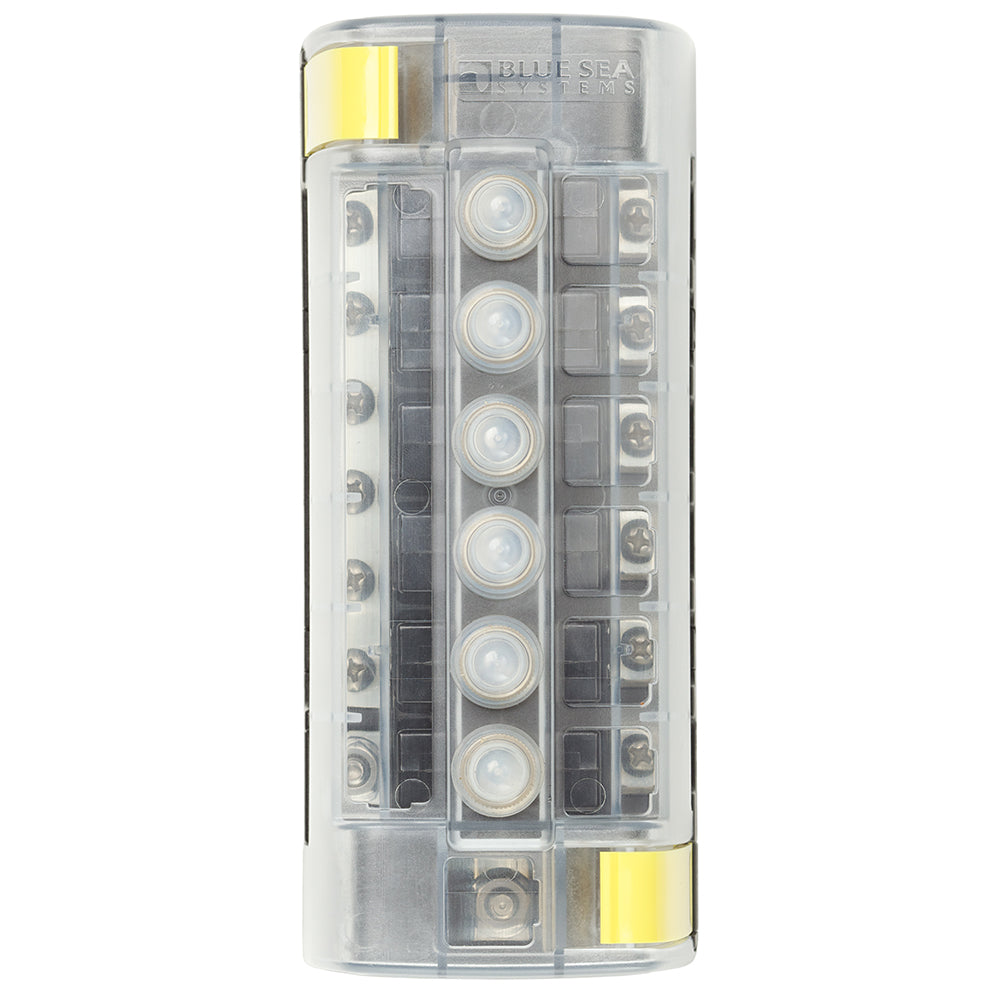

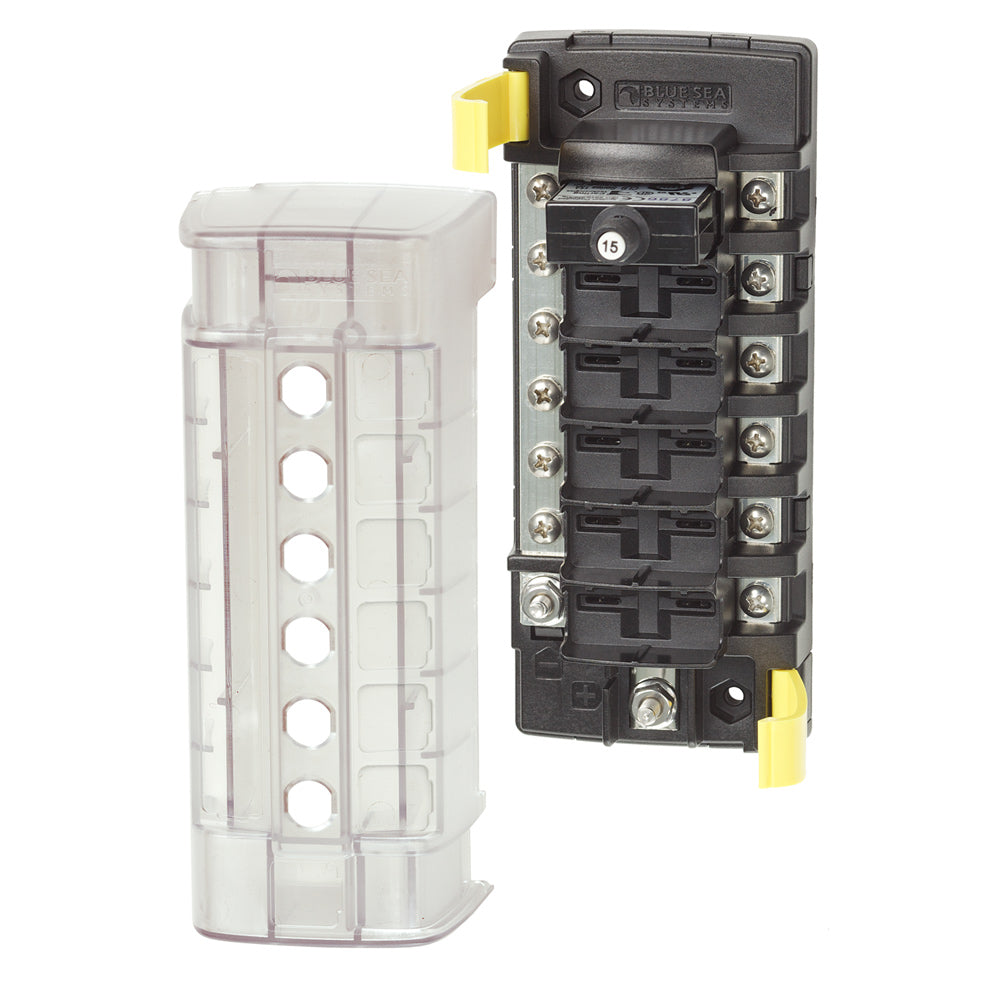

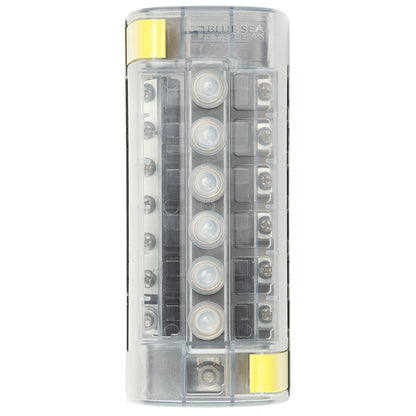

Blue Sea Systems 5052 ST CLB 6-Position Circuit Breaker Block with Negative Bus
Blue Sea Systems 5052 ST CLB 6-Position Circuit Breaker Block with Negative Bus
Regular price
$74.77
Regular price
Sale price
$74.77
Shipping calculated at checkout.
4 available
About this product
Blue Sea Systems 5052 ST CLB circuit breaker block provides six circuit positions with a negative bus for marine electrical installations. Quick-connect clips allow compatible circuit breakers to snap into place, while tin-plated copper busses and screw terminals support secure connections.
- Capacity: 100A maximum per block and 32A maximum per circuit
- Electrical rating: 32V DC maximum
- Construction: Tin-plated copper busses and screw terminals with a clear insulating cover
- Connections: Accepts ring terminals; #8-32 screws with captive star lock washers
- Mounting: #8 screw (M4) or #8 nut; 5.63 in. (143 mm) mounting centers
- Configuration: Six circuits, common source, and integrated negative bus
- Cover features: Square-format label recesses, easy-open clip, and breakouts for wire access in two directions
- Optional accessories: Push-button waterproof boots or dress nuts can be installed over the cover
- Operating temperature: -10 deg C to 60 deg C
- Dimensions and weight: 6.69 in. (169.93 mm) height; 0.75 lb. (0.34 kg)
- Insulation: Cover satisfies stated ABYC/USCG insulation requirements
- Manufacturer part number: 5052
- Regulatory note: This product carries a California Proposition 65 warning for exposure to di(2-ethylhexyl)phthalate (DEHP).
Quantity
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-103314
- Model / MPN
- 5052
- UPC / GTIN
- 632085050528
- Package dimensions (H × W × L)
- 3" X 4" X 11"
- Package weight
- 0.92 lb
- Country of origin
- UNITED STATES
Specifications
- Amperage
- 100/32a
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
Complete the setup
Recommended accessories
Useful add-ons matched to this product.-
Blue Sea Systems
Blue Sea Systems 4135 Push Button Circuit Breaker Boot, Clear, 2-Pack
$5.79
-
Blue Sea Systems
Blue Sea Systems 7052 5A Push-Button Thermal Circuit Breaker with Quick-Connect Terminals
$7.37
-
Blue Sea Systems

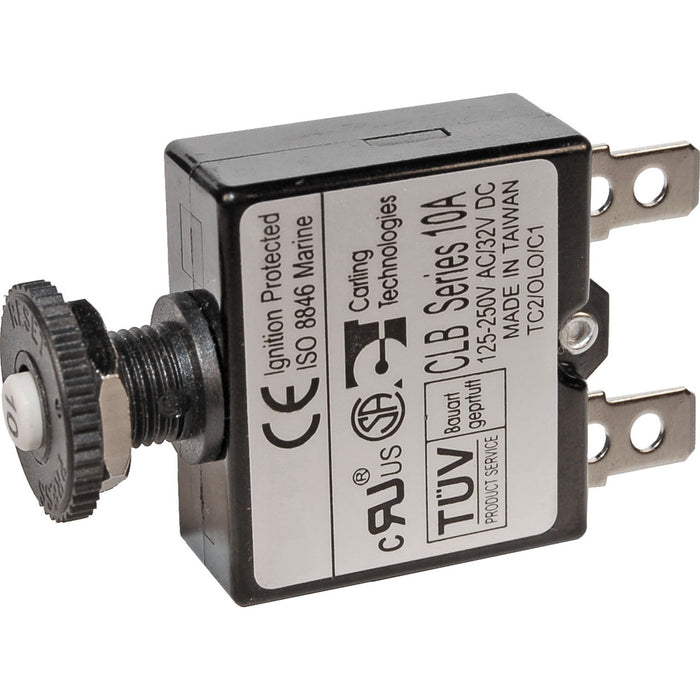

Blue Sea Systems 7054 10A Push-Button Reset Circuit Breaker with 1/4 in. Quick-Connect Terminals
$6.58
-
Blue Sea Systems

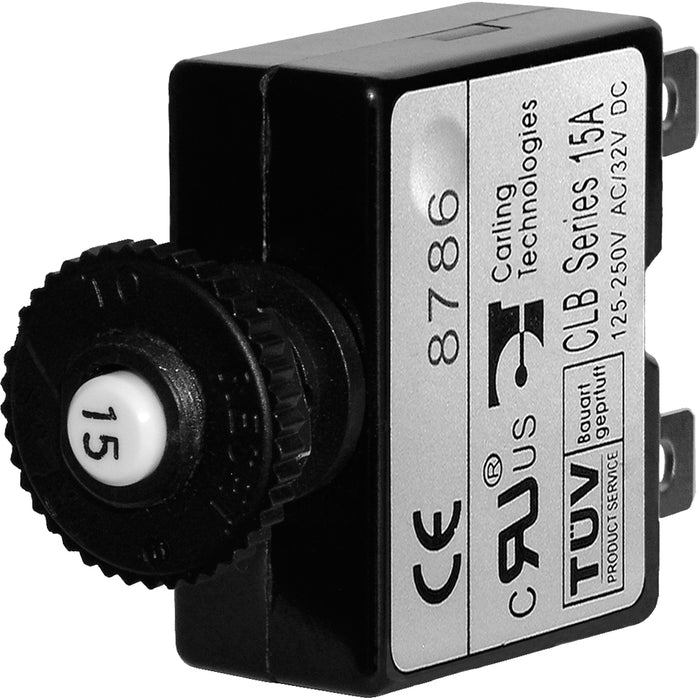

Blue Sea Systems 7056 15A Push-Button Thermal Circuit Breaker with Quick-Connect Terminals
$6.58
-
Blue Sea Systems

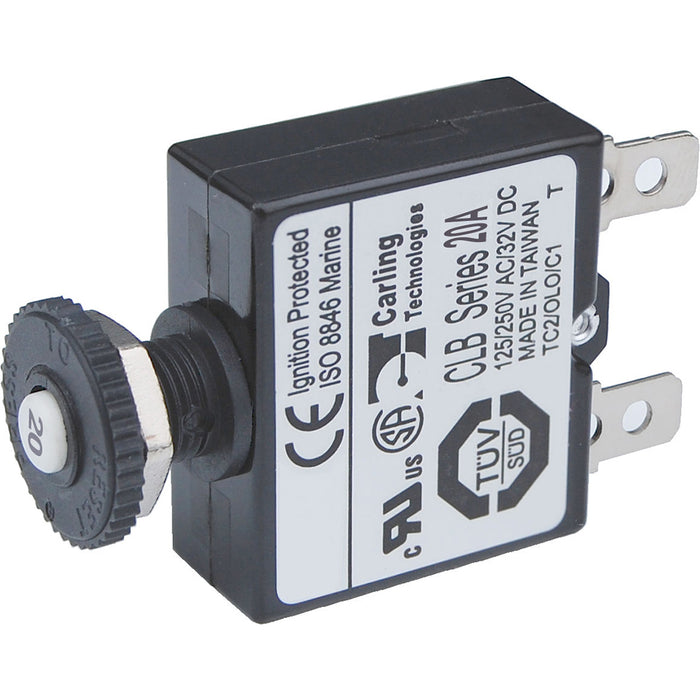

Blue Sea Systems 7057 20A Push-Button Thermal Circuit Breaker with Quick-Connect Terminals
$6.58
-
Blue Sea Systems

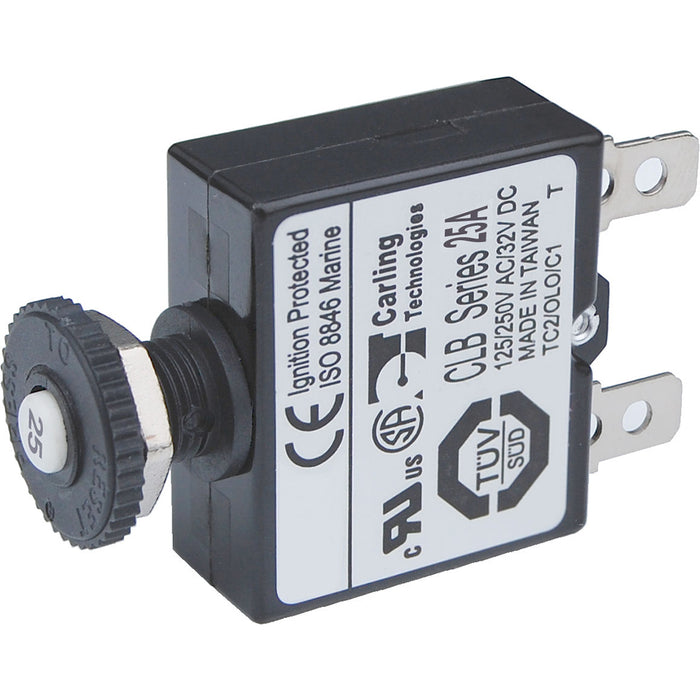

Blue Sea Systems 7058 25A Push Button Thermal Circuit Breaker
