• Blue Sea Systems 5054 ST CLB 12-Position Circuit Breaker Block with Negative Bus
  • Blue Sea Systems 5054 ST CLB 12-Position Circuit Breaker Block with Negative Bus
  • Blue Sea Systems 5054 ST CLB 12-Position Circuit Breaker Block with Negative Bus
1 3

Brand: Blue Sea Systems

Blue Sea Systems 5054 ST CLB 12-Position Circuit Breaker Block with Negative Bus

Blue Sea Systems 5054 ST CLB 12-Position Circuit Breaker Block with Negative Bus

$127.29
$127.29
Sale Sold out
Shipping calculated at checkout.

Last one

About this product

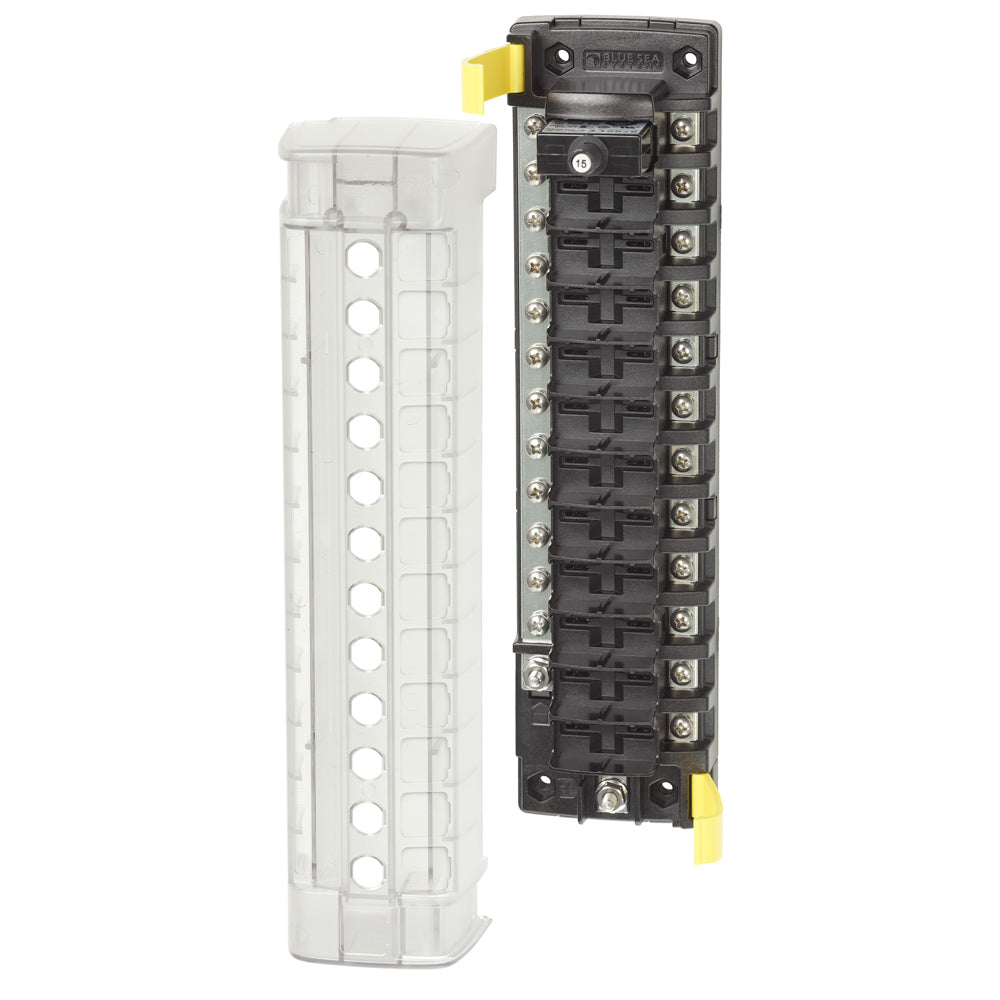

Blue Sea Systems 5054 ST CLB circuit breaker block provides 12 circuit positions with a negative bus for marine electrical installations. Quick-connect clips allow circuit breakers to snap into place, while tin-plated copper bus bars and screw terminals support secure connections.

  • 12 circuit positions with negative bus
  • Maximum amperage: 100A per block and 32A per circuit
  • Maximum voltage: 32V DC

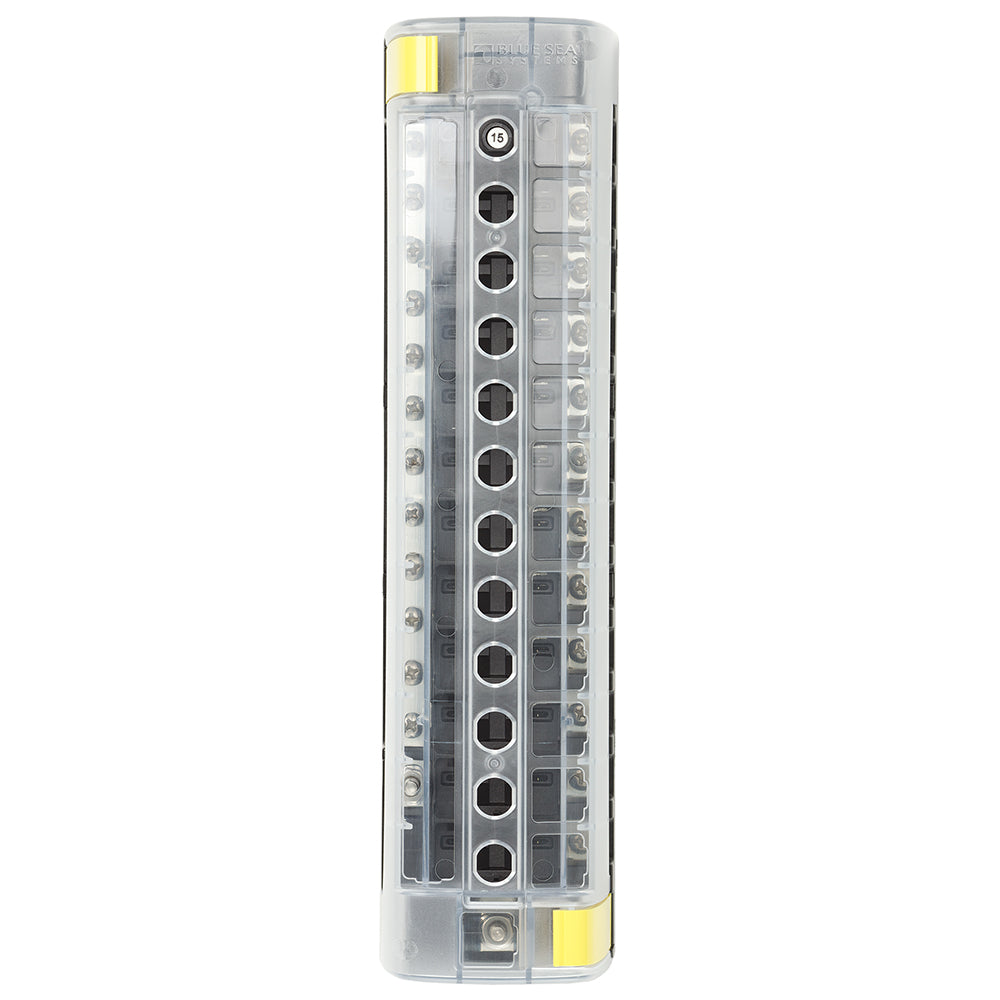

  • Clear insulating cover with label recesses; the cover satisfies ABYC and USCG insulation requirements
  • Quick-connect clips, two-direction wire-access breakouts, and compatibility with ring terminals
  • Tin-plated copper bus bars and screw terminals
  • Mounting: #8 screw, M4, or #8 nut
  • Mounting centers: 10.13 in. (257.3 mm)
  • Screw terminals: #8-32 screws with captive star lock washers
  • Height: 6.69 in. (169.93 mm); weight: 1.50 lb. (0.68 kg)
  • Operating temperature range: -10°C to 60°C

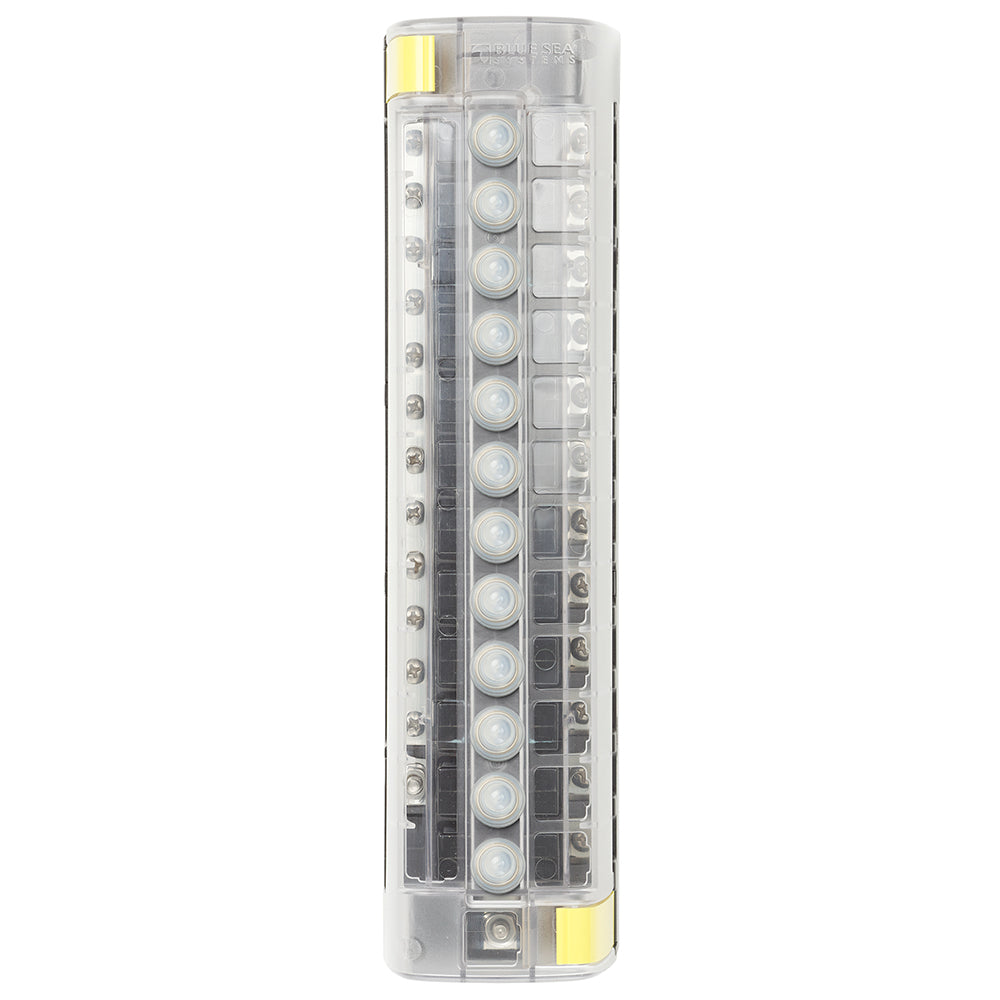

  • Optional push-button waterproof boots or dress nuts can be installed over the cover
  • Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
  • Manufacturer part number: 5054

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-103315
Model / MPN
5054
UPC / GTIN
632085050542
Package dimensions (H × W × L)
3" X 5" X 15"
Package weight
1.5 lb
Country of origin
UNITED STATES

Specifications

Amperage
100/32a
California Proposition 65 warning
<p><img src="https://productimageserver.com/prop65/6pt.png" alt="Warning" /><strong>WARNING:</strong> This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to <a href="http://P65Warnings.ca.gov">P65Warnings.ca.gov</a>.</p>

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
